Product Description

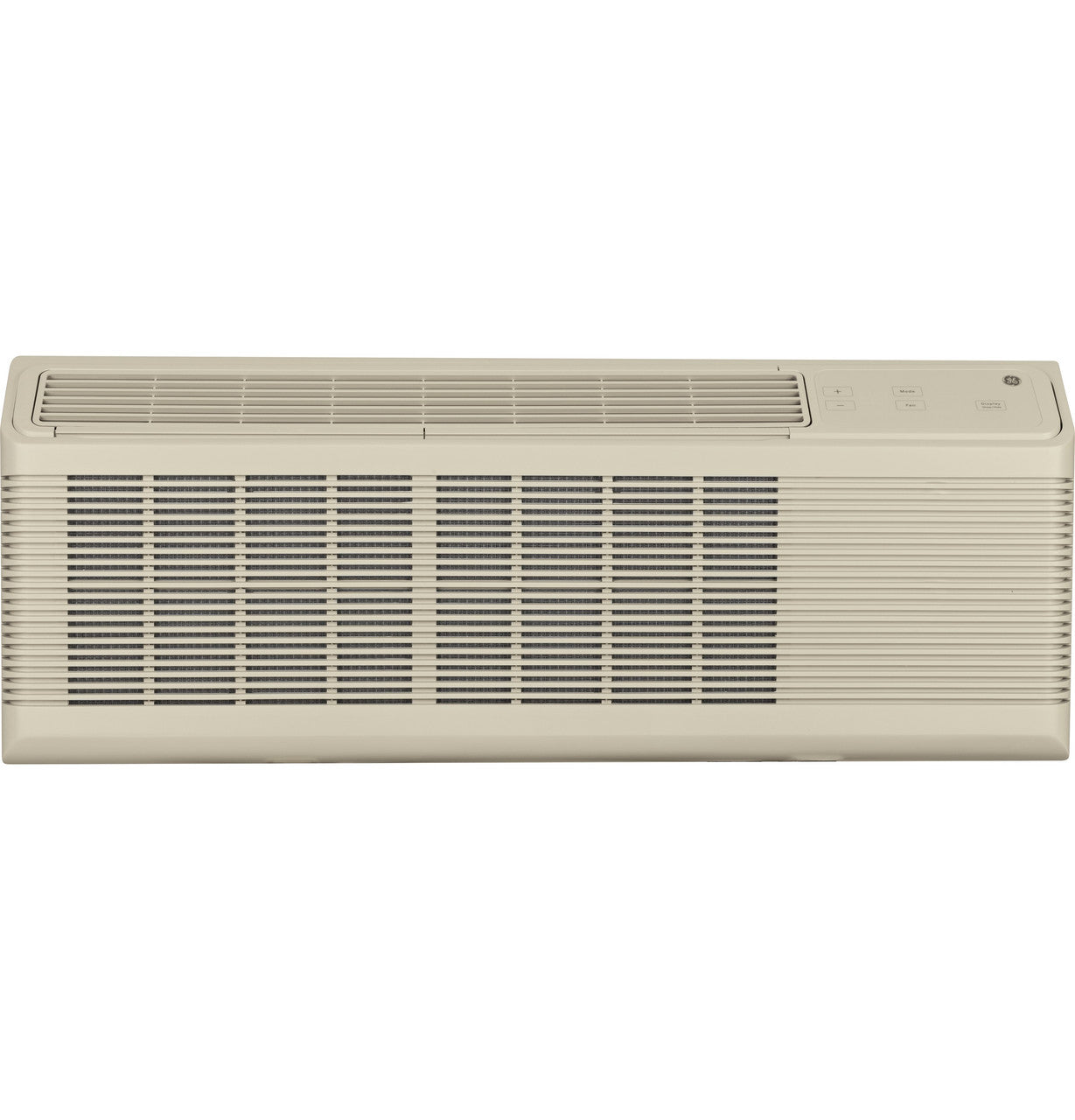

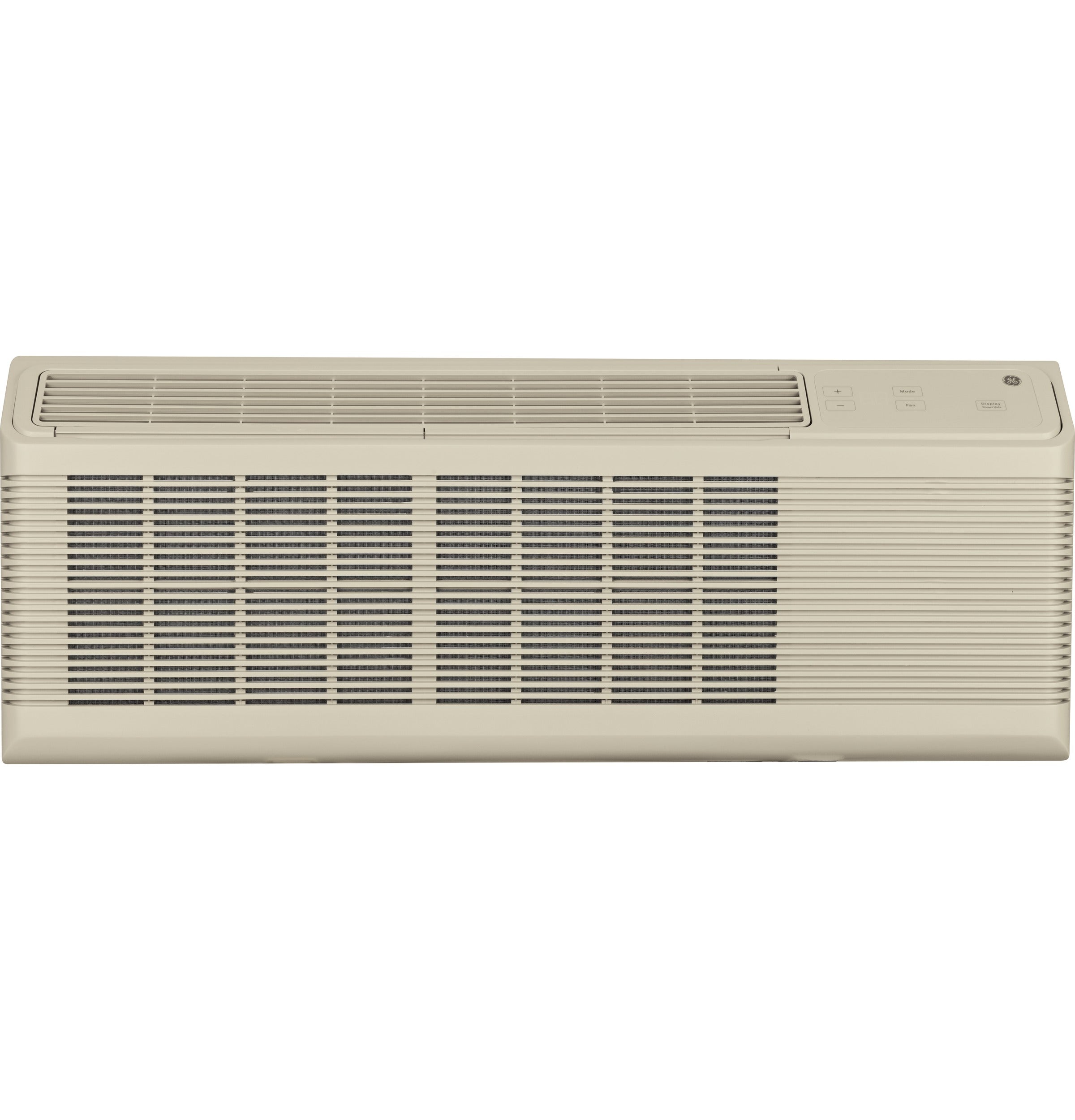

The GE APPLIANCES AZ65H15DAC Zoneline packaged terminal air conditioner (PTAC) offers reliability and consistent performance. Integrated structural components make it easy to maintain and service. Features include heat and freeze sentinels to prevent overheating or freezing, and premium guard corrosion protection for lasting performance. The unit operates at 208/230V.
- Heat and Freeze Sentinels prevent the unit from overheating or freezing.
- Premium Guard Corrosion protection ensures lasting performance in challenging environments.
- Smart Fan runs in continuous mode while cooling and cycle mode during heating.
Product Highlights
This GE Zoneline PTAC unit provides efficient heating and cooling with features that improve guest comfort and save energy.
Product Information
Standard Information
-
Brand: GE APPLIANCES
-
Manufacturer Part Number: AZ65H15DAC
-
Country of Origin: America
Technical Specifications
-
BTU: 15k
-
Voltage (Volts): 230/208
-
EER: 10.4
-
UPC: 084691815631
-
Phase: 1
-
Voltage: 208/230 Volts
-
Cooling BTU: 15000
-
Product Depth: 20 13/16 Inches
-
Product Width: 42 Inches
-
Type: PTAC
-
Product Height: 16 Inches
-
Frequency: 60 Hz
-
Product Category: PTAC Unit
-
Shipping Weight: 118 Pounds
-
Cooling Capacity: 14500 BTU
-
Heating Capacity: 13500 BTU
-
Maximum Air Flow: 449 CFM
-
Minimum Air Flow: 290 CFM
-
Moisture Removal: 4.8 Pints/Hour
-
AHRI Certified: Yes
-
Cooling Power Input: 1390 Watts
-
Heating Power Input: 195 Watts
-
Product Line: AZ65H
-
Electric Heat: Yes
-
Operating Mode: Heat Pump + Electric Heat
-
Parts Warranty: 5 Years
-
Refrigerant Type: R-410a
-
CFM Indoor Fan High: 400
-
CFM Indoor Fan Low: 290
-
Cooling BTUH (MAX): 14,400 Btu
-
Cooling BTUH (MIN): 14,200 Btu
-
Cooling EER (BTUH / Watt): 10.4/10.4
-
Dehumidification (pts./hr.): 4.8
-
Heating - Reverse Cycle - BTUH: 13500/13300
-
Vent CFM (high fan at zero ESP): 44
-
Chassis Type: Slide-In
-
Control Type: Standard Microcomputer
-

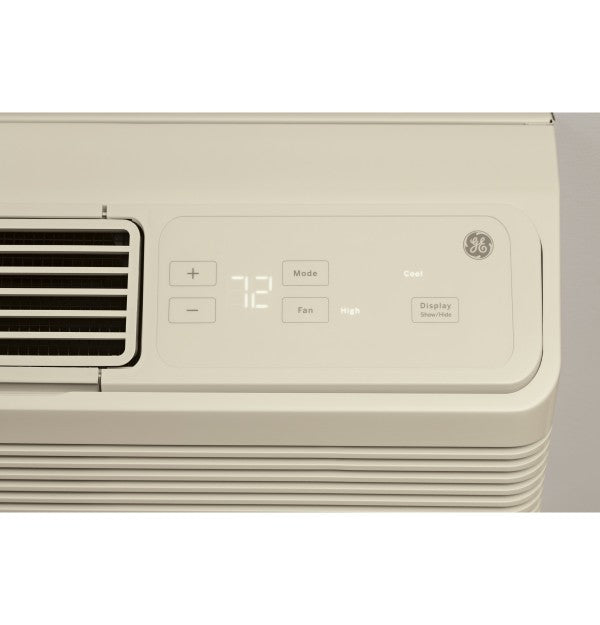

Tactile touch pad with LED Display: Yes
-
Corrosion Treated: Yes
-
Discharge Grille: 2-position
-
Electronic Micro Computer Control: Yes
-
Fan Cycle Switch: Yes
-
Fan Motor: 2
-
Fan Speed Control: Yes
-
Fan Speed Selections: Hi/Low Cooling
Hi/Low Heating
Hi/Low Fan Only
-
Filter Type: Rigid Frame
Slide-Out
-
Heat - Cool: Yes
-
Heat Pump: Yes
-
Heating - Reverse Cycle - COP: 3.3/3.3
-
Heating System: Heat Pump
-
Louver Style: Reversible
-
Manual Vent Control: Hidden
-
Power Factor: 97
-
Product Type: Packaged Terminal Air Conditioners (PTAC)
-
Rotary Compressor: Yes
-
Sensible Heat Ratio: 60%
-
Temperature Limiting: Electronic 7-Step
-
Temperature Range: 60 - 85 F
-
Vent Control: 3-position
-
Venting Features: Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions
-
Zoneline Features: "Smart Fan" Fan Cycle Control
Automatic Emergency Heat
Auto Power Recovery
Reverse Cycle Defrost
Remote Thermostat Compatibility
Central Desk Control Compatibility
Proportional - Integral ID Airflow

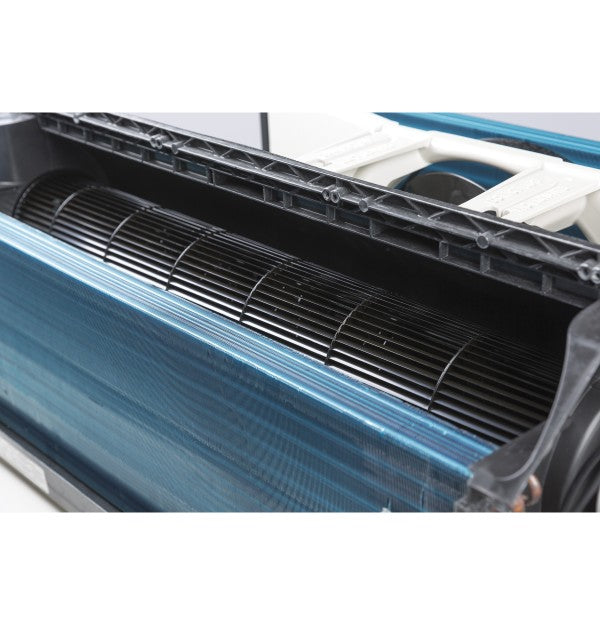

Random Twist/Length Segment Tangential Blower
Weather Protected Electrical Components
"Sleep" Mode
Heat Sentinel
Freeze Sentinel
Automatic Indoor Frost Control
Universal Heaters
Quick Heat Recovery
3-Stage Heating Design
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat
-
Cooling - Amperes: 6.2/6.7
-
Cooling - Amperes; F.L. - Cooling: 6.2/6.7
-
Cooling - Amperes; L.R.: 31.5
-
Cooling - Watts: 1390/1360
-
Heating - Reverse Cycle - Amps: 5.4/5.7
-
Heating - Reverse Cycle - Watts: 1195/1180
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Labor Warranty: Limited 1-year entire appliance
Limited 5-year sealed system
-
Warranty Notes: See written warranty for full details
-
Approximate Shipping Weight: 110 lb
-
Net Weight: 110 lb
-
Overall Depth: 20.8125 in
-
Overall Height: 16 in
-
Overall Width: 42 in
