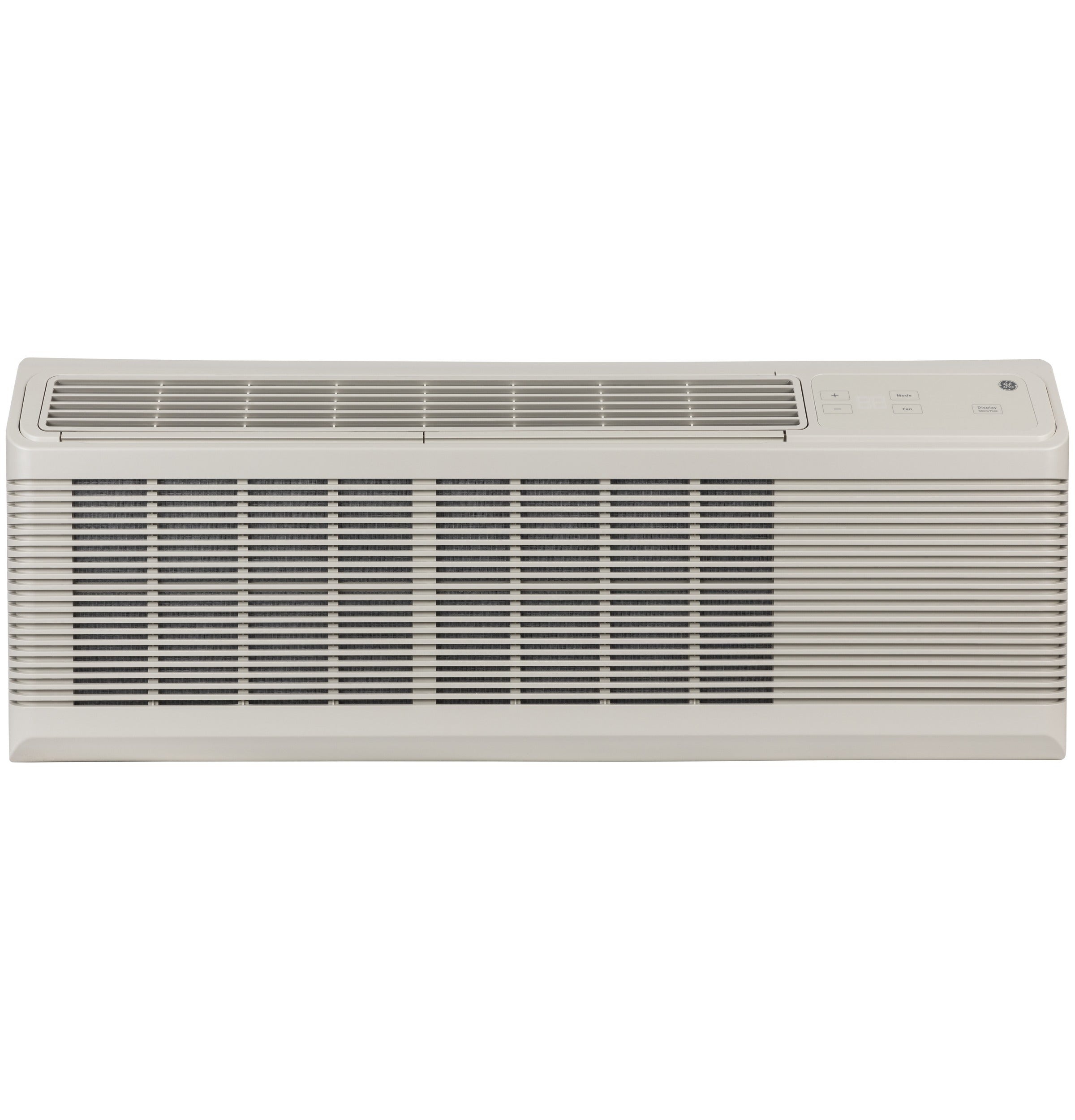

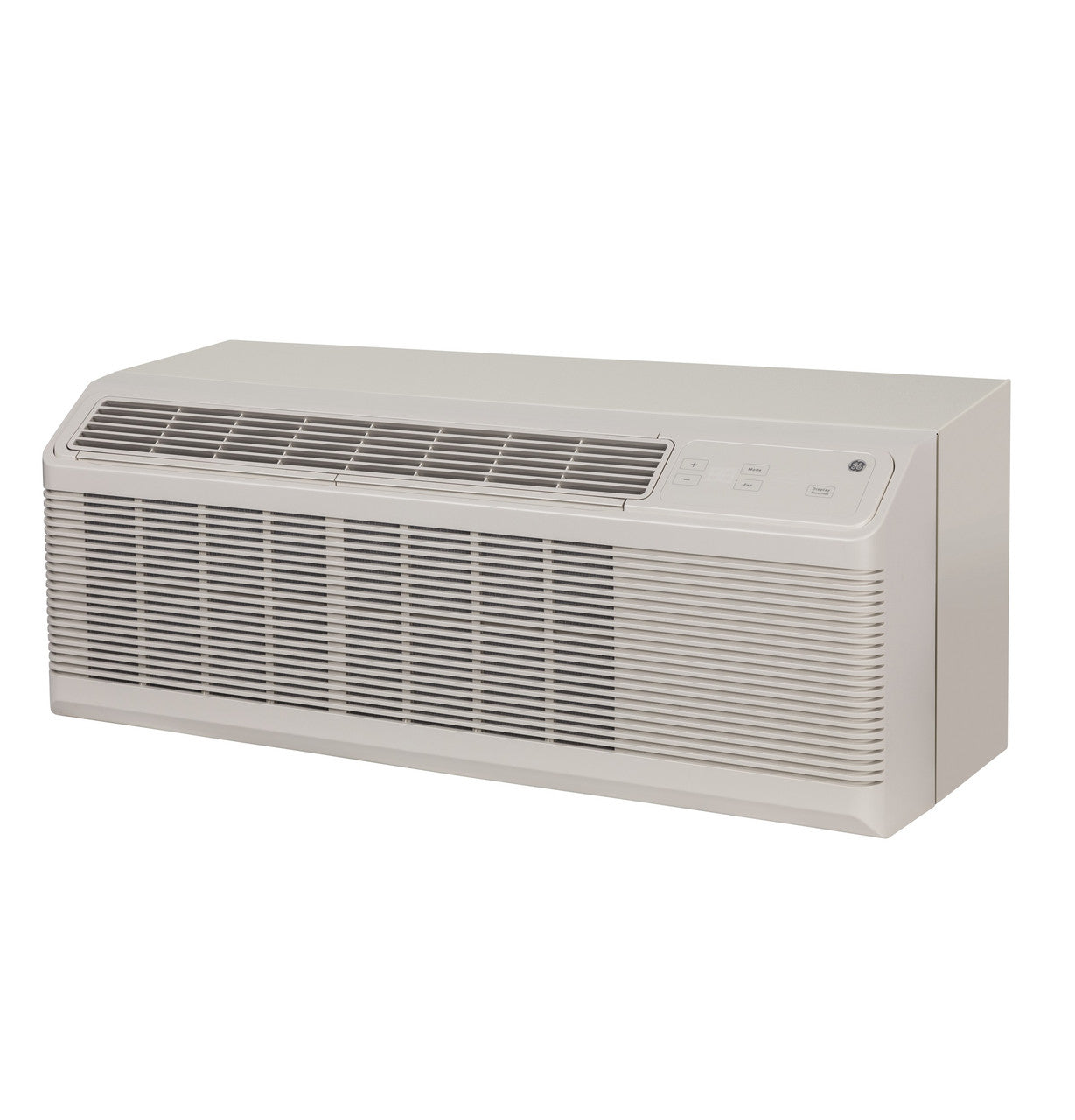

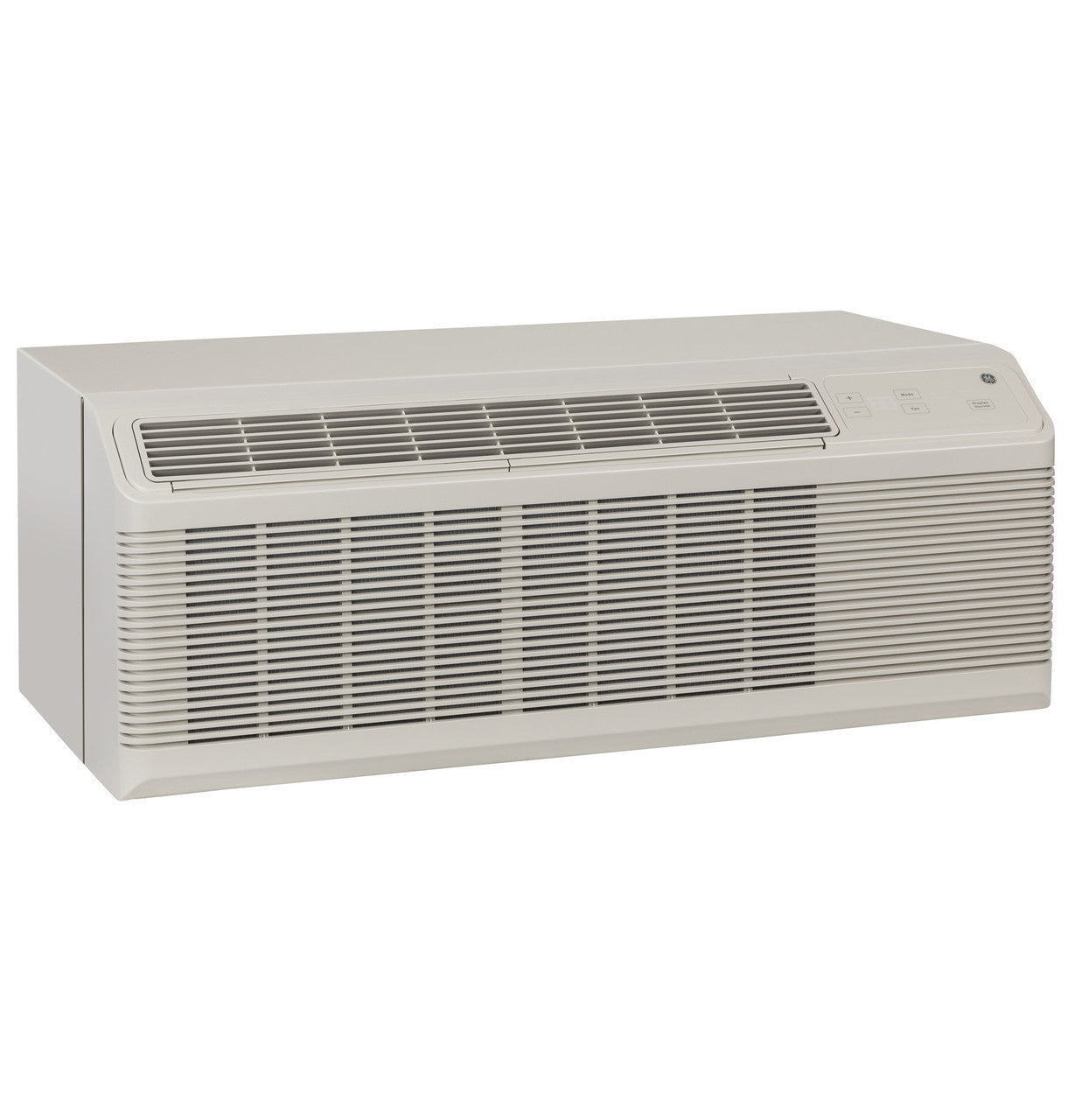

Ge Appliances AZ45E15EAC Zoneline - 15k BTU - Packaged Terminal Air Conditioner (PTAC) - Electric Heat - Corrosion Protection - 265V

Product Description

The GE APPLIANCES AZ45E15EAC Zoneline packaged terminal air conditioner (PTAC) offers reliability and consistent performance. Integrated structural components make it easy to maintain and service. Features include heat and freeze sentinels to prevent overheating or freezing and premium guard corrosion protection for lasting performance in challenging environments. The indoor fan runs in continuous mode while cooling and cycle mode during heating.

• Heat and Freeze Sentinels prevent the unit from overheating or freezing.
• Premium Guard Corrosion protection provides a specialized coating to prevent corrosion.
• Smart Fan improves guest comfort and saves energy.

Product Highlights

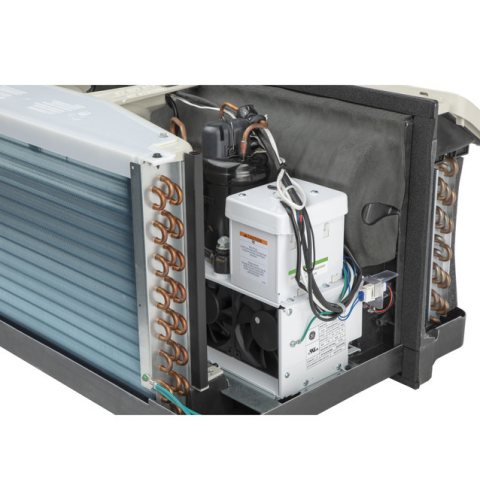

This GE Zoneline PTAC features two DC fan motors, a large cross-flow blower, and electronic temperature limiting for optimal performance.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: AZ45E15EAC
• Country of Origin: America

Technical Specifications

• BTU: 15k
• Voltage (Volts): 265
• UPC: 084691815693
• EER: 10.7
• Phase: 1
• Cooling BTU: 15000
• Product Depth: 20 13/16 Inches
• Product Width: 42 Inches
• Type: PTAC
• Product Height: 16 Inches
• Frequency: 60 Hz
• Product Category: PTAC Unit
• Shipping Weight: 117 Pounds
• Cooling Capacity: 15000 BTU
• Maximum Air Flow: 449 CFM
• Minimum Air Flow: 300 CFM
• Moisture Removal: 4.6 Pints/Hour
• AHRI Certified: Yes
• Cooling Power Input: 1400 Watts
• Product Line: AZ45E
• Electric Heat: Yes
• Operating Mode: Cooling + Electric Heat
• Parts Warranty: 5 Years
• Refrigerant Type: R-410a
• Cooling BTUH (MAX): 14700.0 Btu
• CFM Indoor Fan High: 436
• CFM Indoor Fan Low: 330
• Dehumidification (pts./hr.): 4.6
• Vent CFM (high fan at zero ESP): 47
• Sensible Heat Ratio: 63%
• Chassis Type: Slide-In

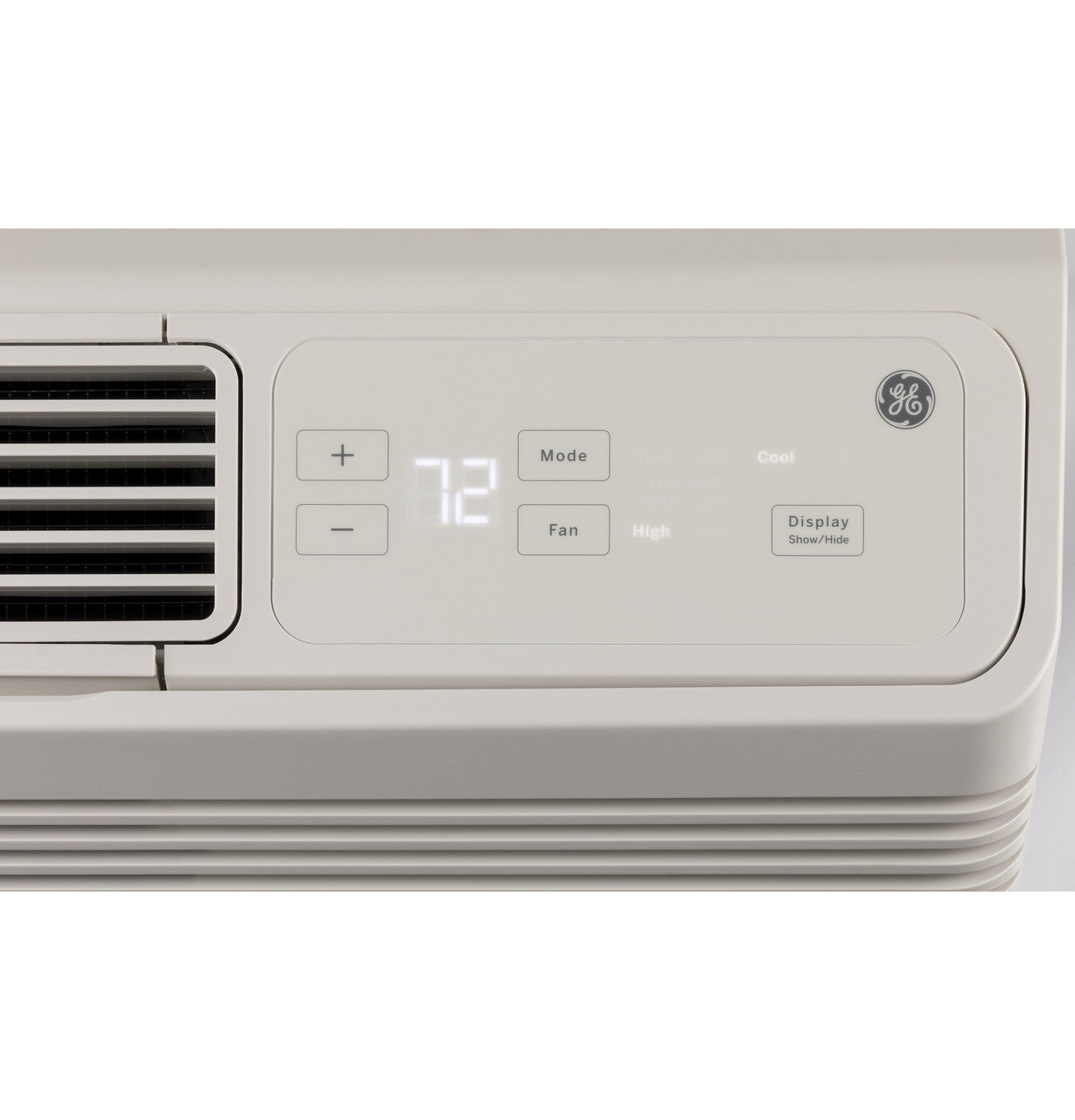

• Control Type: Coverless Backlit White LED Touch Controls
• Discharge Grille: 2-position
• Electronic Micro Computer Control: Yes
• Fan Cycle Switch: Yes
• Fan Motor: 2
• Fan Speed Control: Yes
• Fan Speed Selections: Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating
• Filter Type: Rigid Frame, Slide-Out
• Heat - Cool: Yes
• Louver Style: Reversible
• Manual Vent Control: Hidden
• Rotary Compressor: Yes
• Temperature Limiting: Electronic 7-Step
• Vent Control: 3-position
• Corrosion Treated: Yes
• Venting Features: Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter
• Heating System: Electric Resistance
• Temperature Range: 60 - 85 F
• Cooling - Amperes: 5.5
• Cooling - Amperes; L.R.: 29
• Overall Depth: 20.8125 in
• Overall Height: 16.0 in
• Overall Width: 42.0 in
• MADE IN AMERICA: 70 to 90% U.S. Content
• Power Factor: 97
• Voltage (MAX): 265.0 V
