Product Description

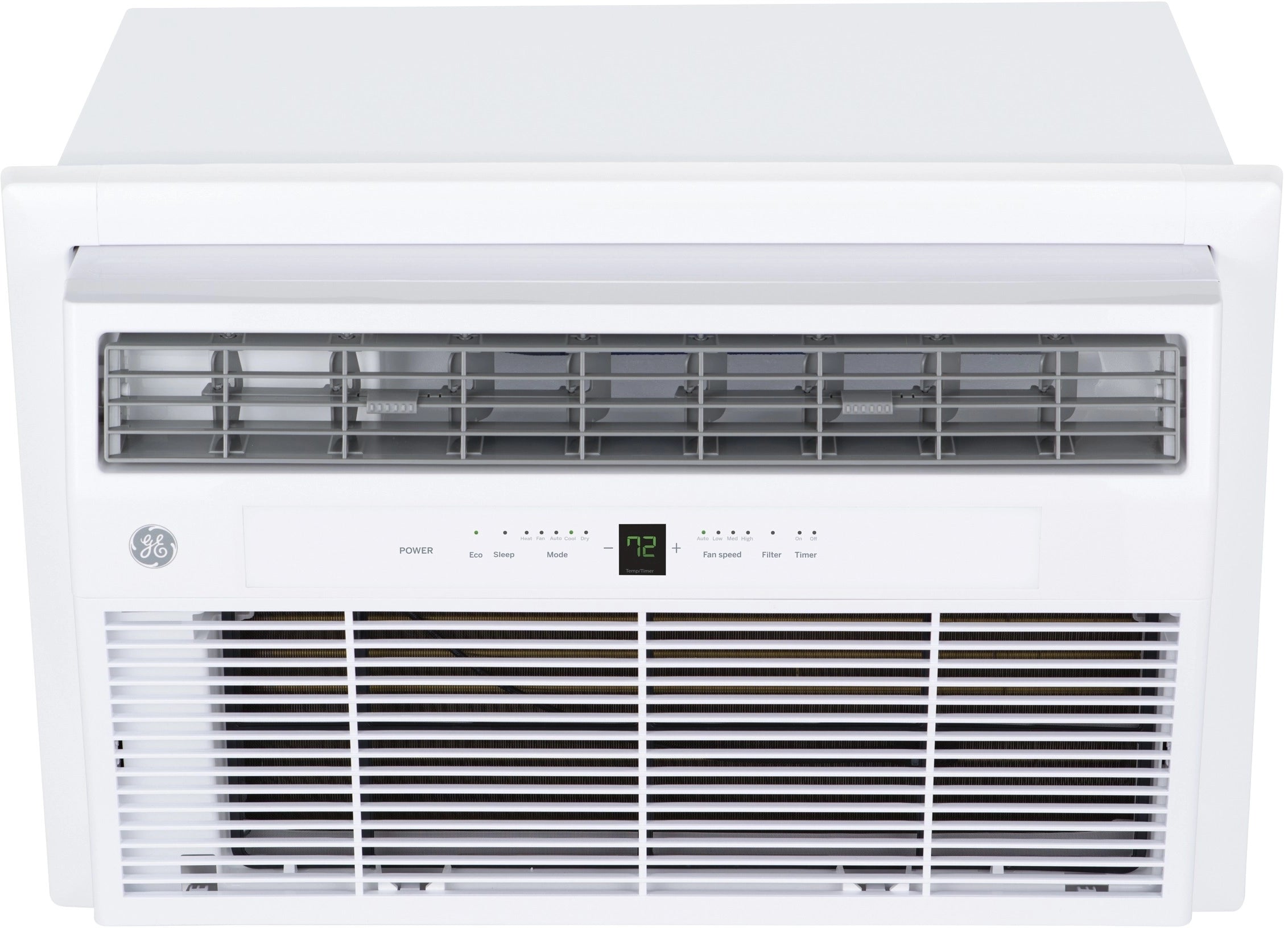

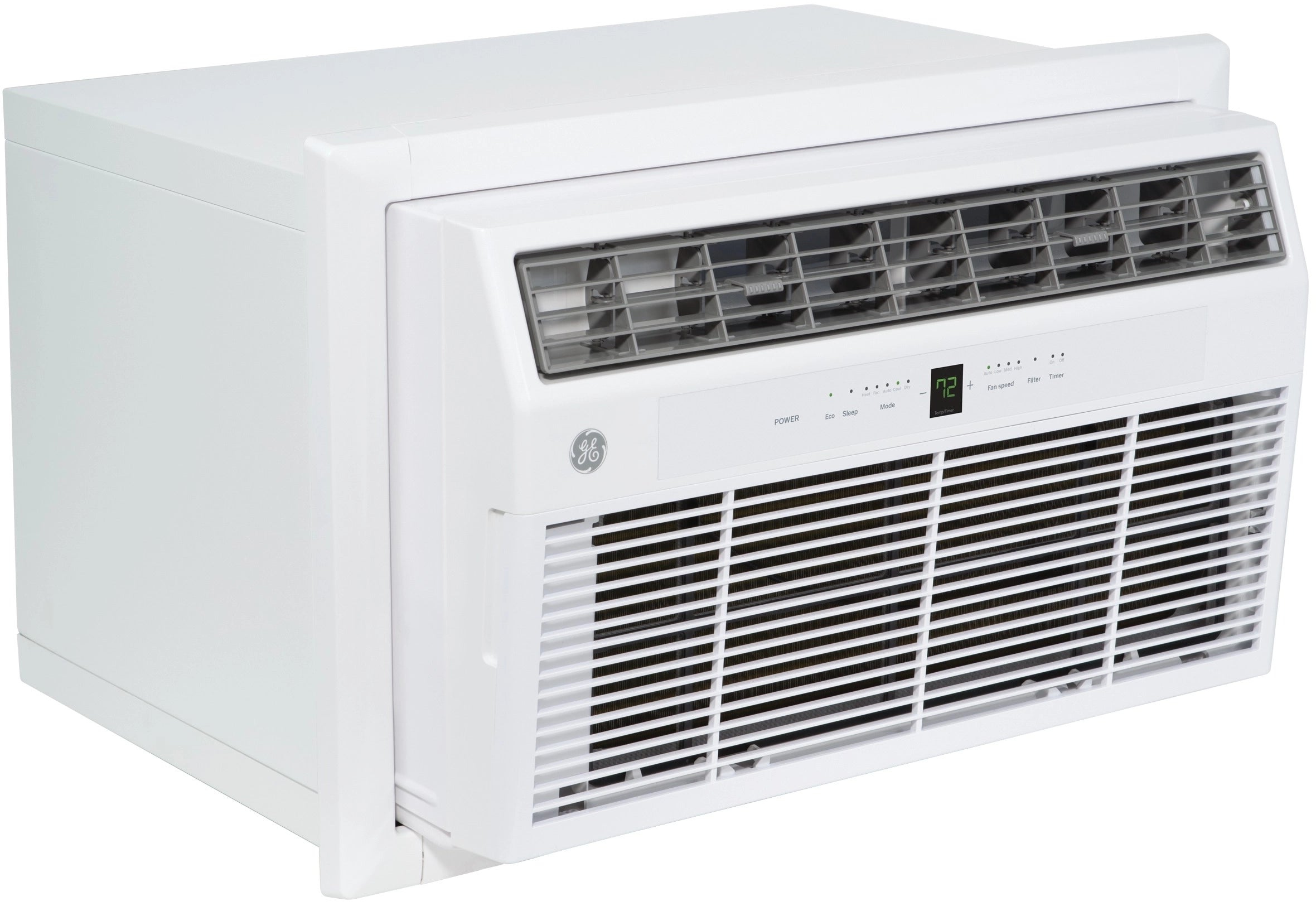

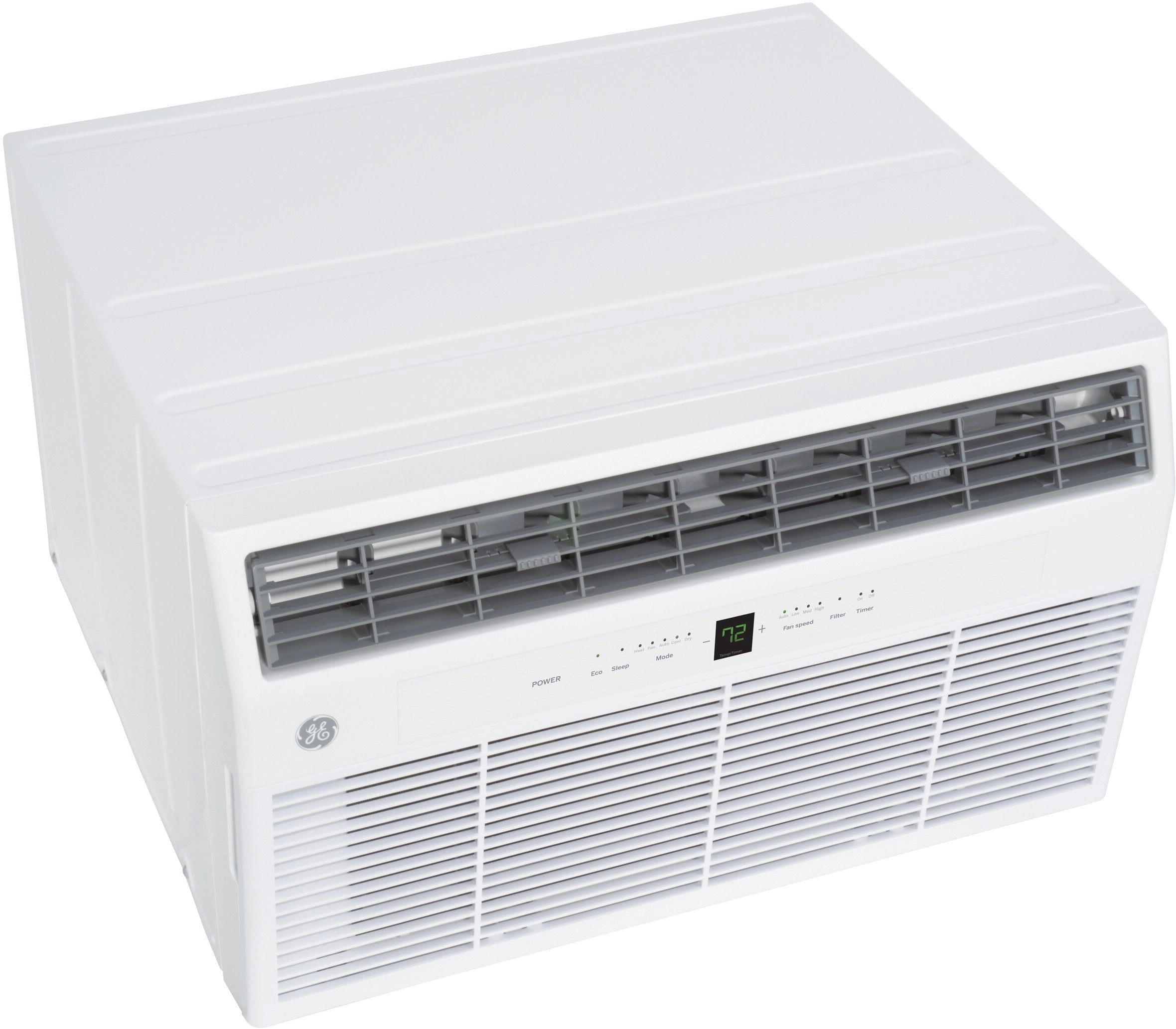

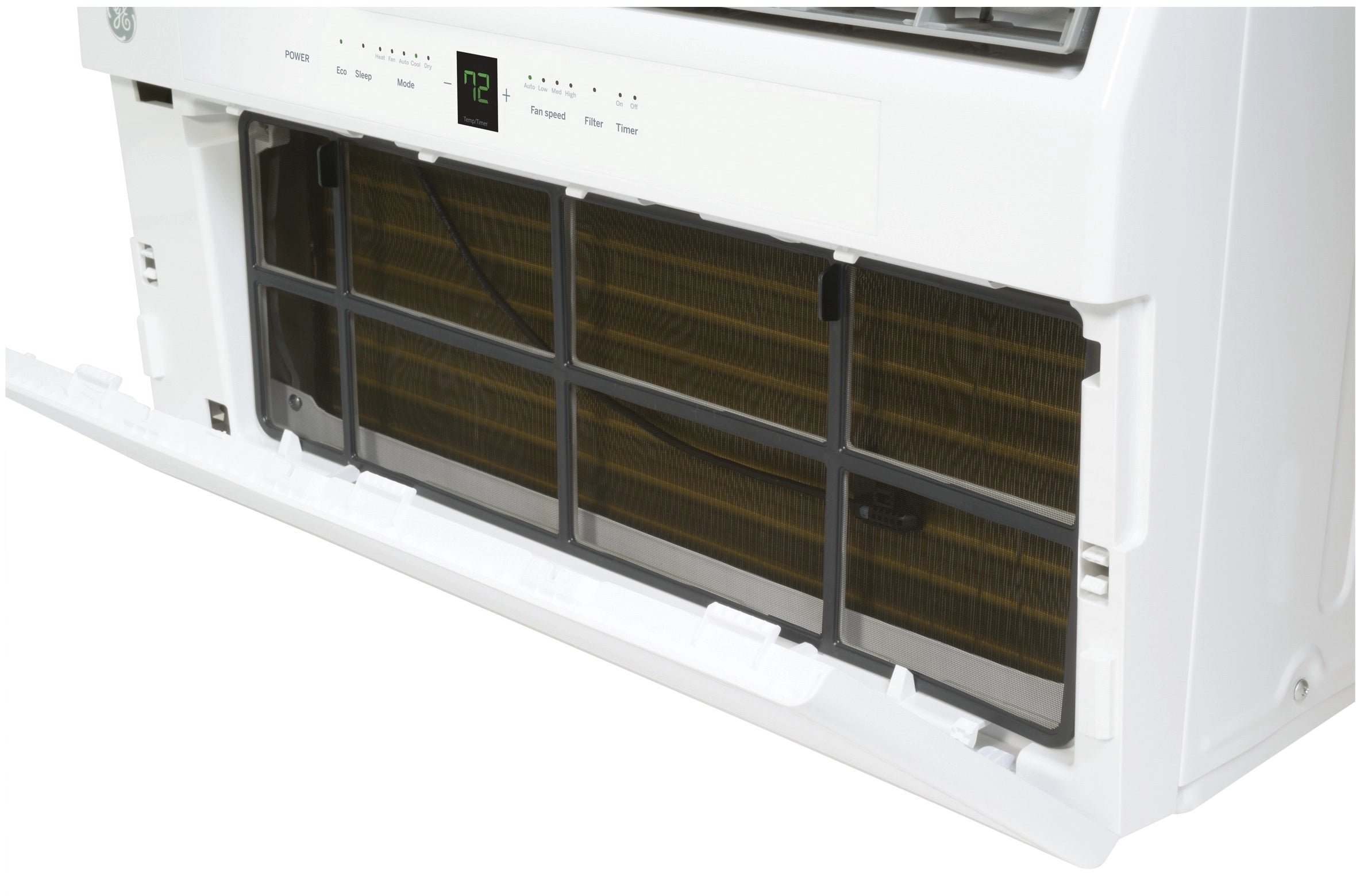

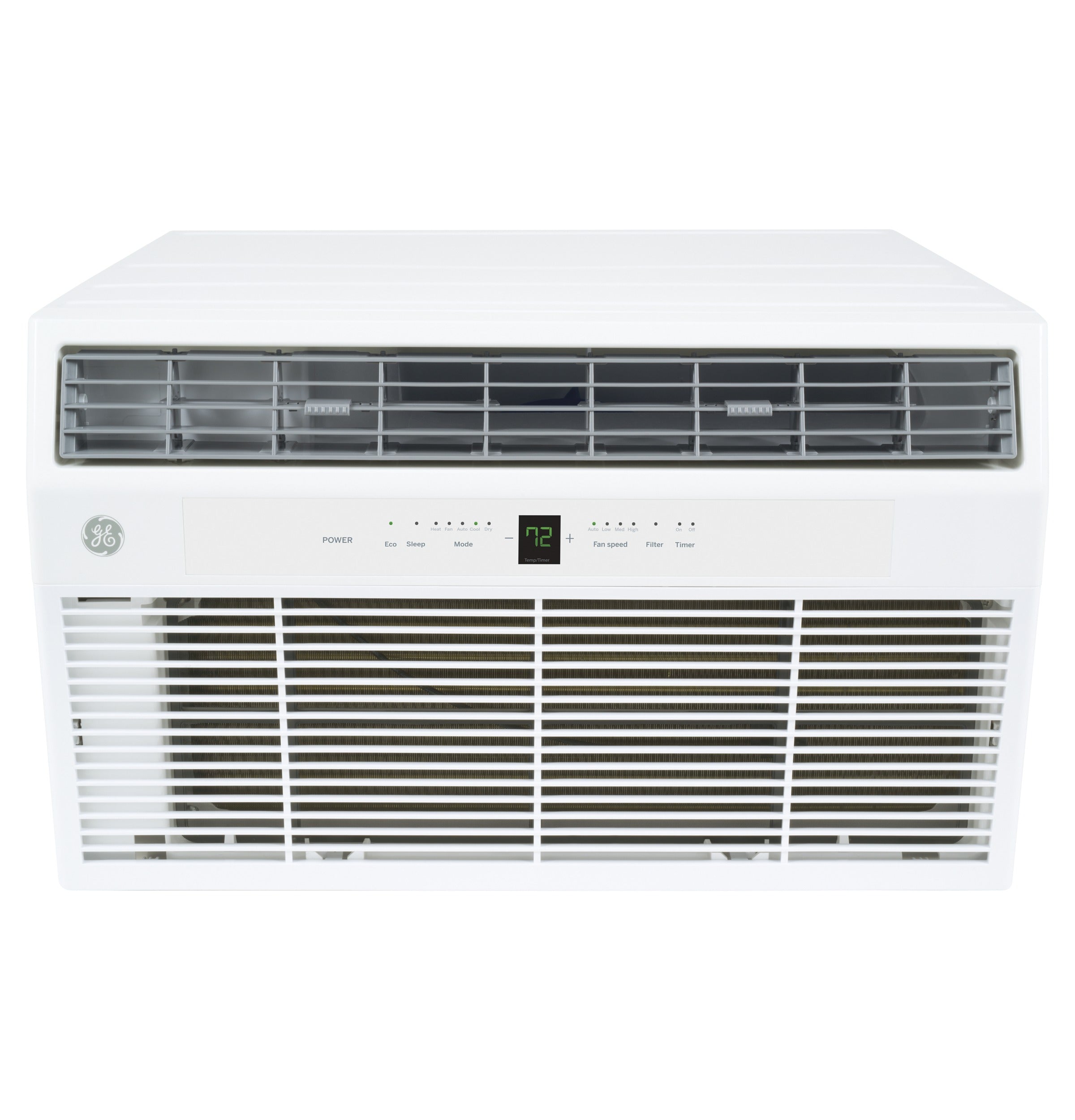

The GE Appliances AKEQ12DCH built-in air conditioner offers a true universal fit with simple slide-in installation for a precise fit into various wall sleeves. Features include ECO Mode for energy savings, Dry Mode for dehumidification, and a 3-speed fan for air comfort flexibility. It also has 6-way directional airflow and a washable filter to help remove dust and particles.
- True Universal Fit for easy installation
- Large LCD display for easy control
- Includes a remote control for convenient adjustments
Product Highlights
This built-in air conditioner provides both cooling and heating with multiple modes and fan speeds for optimal comfort and energy savings.
Product Information
Standard Information
-
Brand: GE APPLIANCES
-
Manufacturer Part Number: AKEQ12DCH
Technical Specifications
-
ACCESSORIES: Wall Case RAB46/47/48/24 Required At Additional Cost
-
Cooling BTUH (MAX): 12,000 Btu
-
Cooling BTUH (MIN): 11,700 Btu
-
Cooling EER (BTUH / Watt): 9.5
-
Dehumidification (pts./hr.): 3.6
-
Heating - Electric - BTUH - AHAM - 1R: 10600/8600
-
Air Flow Volume CFM High/Medium/Low: 286/264/240
-
Chassis Type: Fixed
-
Cord Length: 48"
-
Digital Time Temp Display: Yes
-
Fan Speed Selections: 3 Cooling
3 Fan Only
-
Filter Type: Rigid
Easy Access
Washable
Tilt-Out
-
LCDI / AFCI power cord: Yes
-
Louver Style: 6-Way
-
Optional Grill: RAG13/RAG13A/RAG14E
-
Plug Type: Perpendicular/NEMA 6-20
-
Product Type: Built-In
-
Refrigerant Type: R410A
-
Room Air Conditioner Features: On/Off Timer
Energy Saver
Auto Fan
Dehumidify Function
Sleep Mode
Infrared Remote Control
Batteries Included
Filter Indicator
Rotary Compressor
-
Thermostat Type: Thermistor
-
Vent/Air Exchange Exhaust: Top
-
CEER: 9.5
-
Cooling - Rated Cooling Amps AHAM: 5.5/5.9
-
Cooling - Watts: 1263/1232
-
Heating - Electric - Heater Amps: 15.0/13.5
-
Heating - Electric - Heater Watts: 3450/2821
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Voltage/Hertz/Phase: 230-208/60/1
-
Labor Warranty: Limited 1-year entire appliance
Limited 5-year sealed system
-
Parts Warranty: Limited 2-year entire appliance
-
Warranty Notes: See written warranty for full details
-
Approximate Shipping Weight: 90 lb
-
Depth to Louvers: 20.625 in
-
Net Weight: 90 lb
-
Overall Depth: 19 in
-
Overall Height: 14.5625 in
-
Overall Width: 24.0625 in
-
Product Weight (lbs.): 90
-
ENERGY STAR Certified: No
-
Width (in.): 24.06
-
Depth (in.): 19
-
Height (in.): 14.56
-
Frequency: 60
-
Amp: 5.5/5.9
-
Manufacturer Warranty: 2 Year
-
Cord Length (in.): 48
-
Voltage: 208/230
-
Heater Included: No
-
Auto Fan: Yes
-
Batteries Included: Yes
-
Dehumidify Function: Yes
-
Energy Saver: Yes
-
Filter Indicator: Yes
-
Infrared Remote Control: Yes
-
On/Off Timer: Yes
-
Sleep Mode: Yes
-
Built-In: Yes
-
Eco Mode: Yes
-
Air Discharge: Top
-
Dry Mode: Yes
-
Smart Compatible: No
-
Wifi Capable: No
-
Maximum CFM: 286
-
BTU Cooling Rating: 12000
-
BTU Heat Rating: 10600/8600
