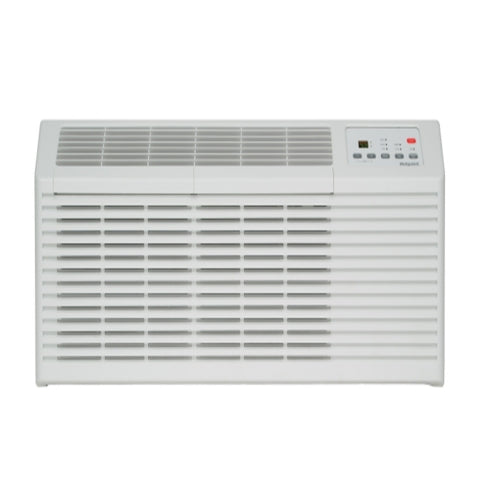

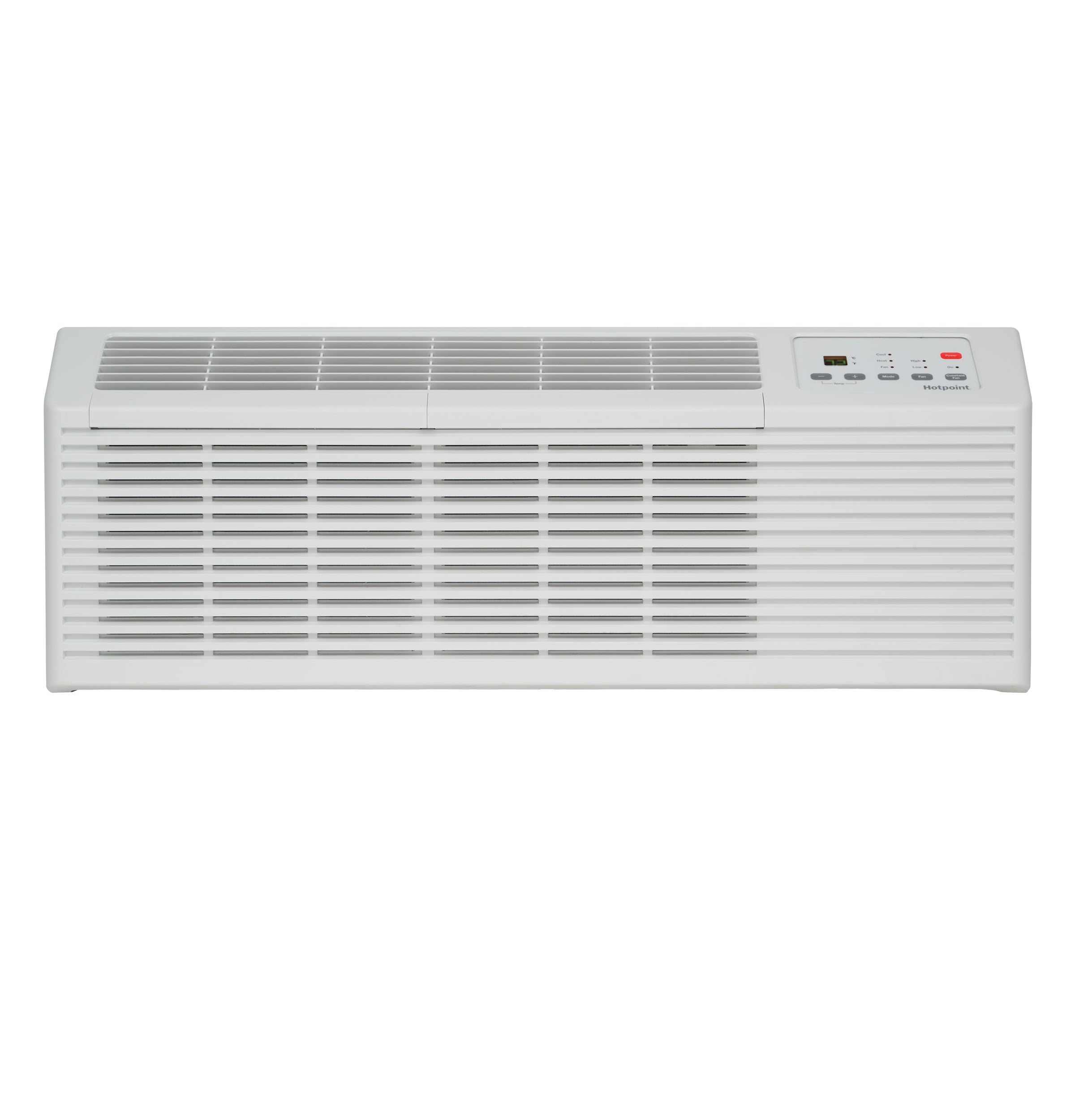

Ge Appliances AHES12D3XXA Hotpoint PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp

Product Description

The GE Appliances AHES12D3XXA Hotpoint PTAC with Electric Heat delivers 12,000 BTU of cooling and heating power. This packaged terminal air conditioner operates at 230/208V and 20 amps. It features electronic controls and a slide-in chassis for through-the-wall installation. The unit includes automatic power recovery and freeze sentinel for added protection.

• Offers 2 cooling, 2 fan only, and 2 heating fan speed selections
• Features automatic indoor frost control and freeze sentinel
• Includes a power cord and is compatible with remote thermostats (accessory kit required)

Product Highlights

This Hotpoint PTAC unit provides efficient cooling and heating with user-friendly features and robust protection mechanisms.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: AHES12D3XXA

Technical Specifications

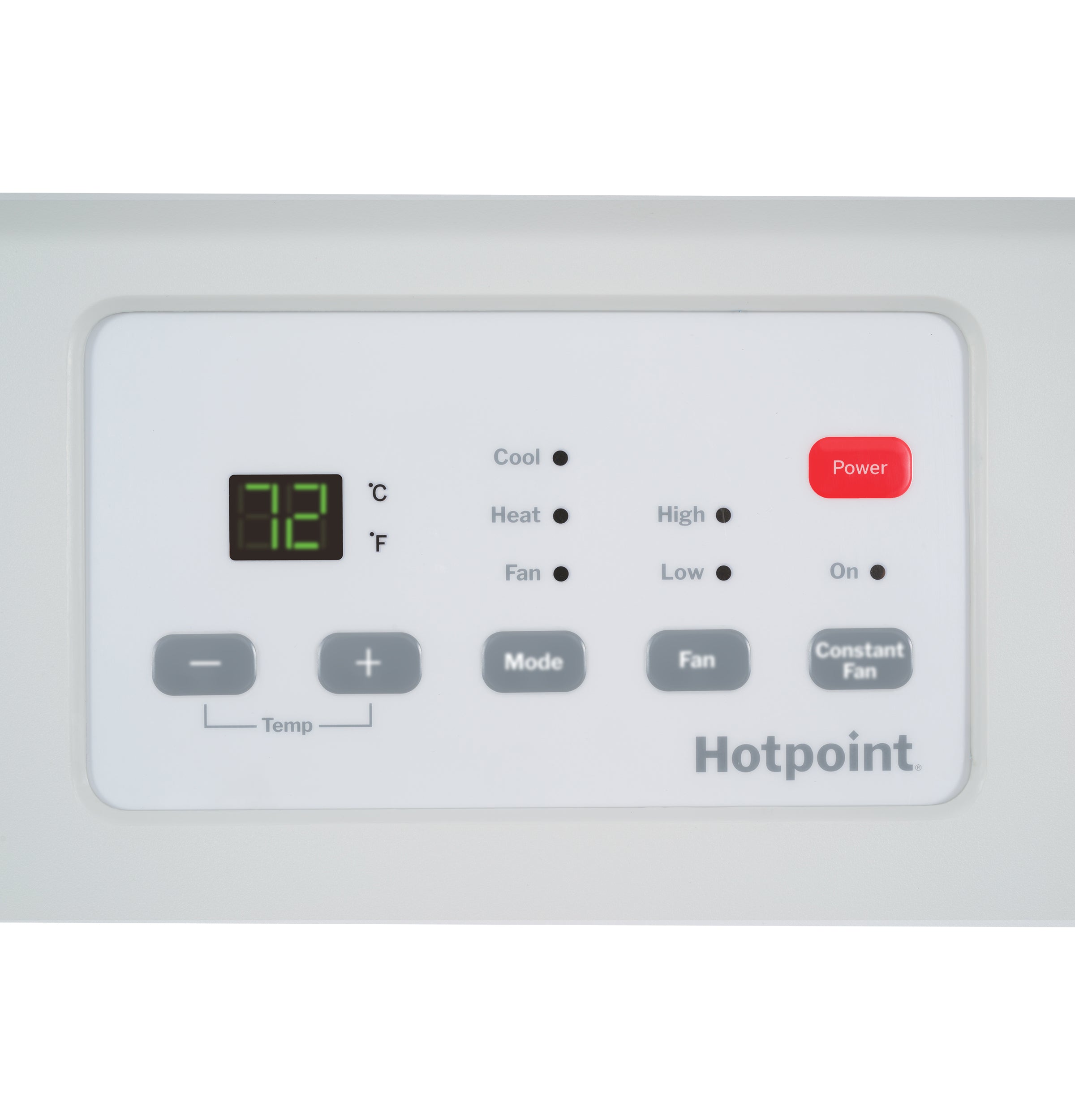

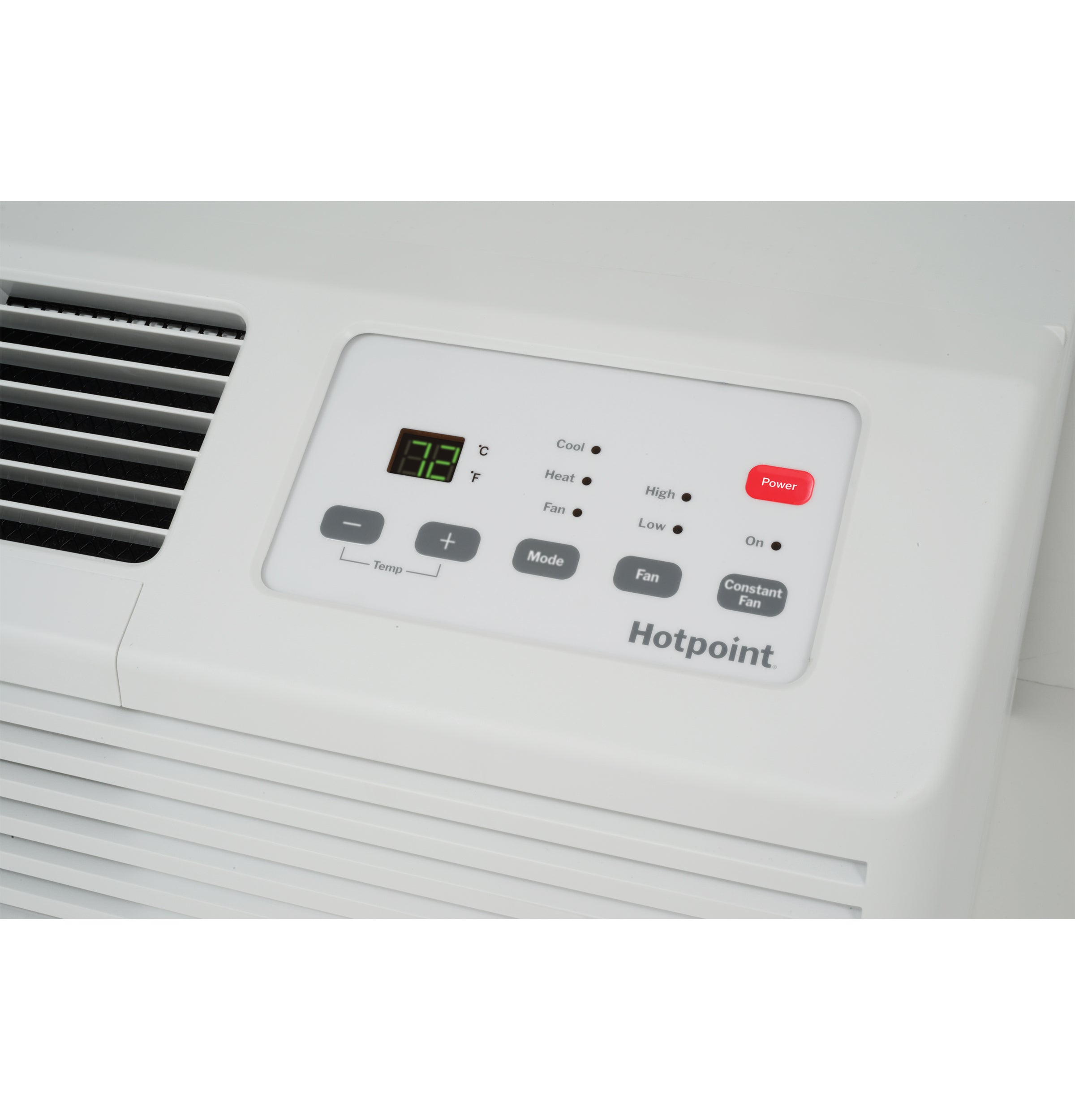

• Control Type: Electronic
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Refrigerant Type: R32
• Temperature Range: 62 - 80 F
• Fan Speed Selections: 2 Cooling 2 Fan Only 2 Heating
• Unit Features: Auto Power Recovery Automatic Indoor Frost Control Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility (Accessory Kit Required)
• Chassis Type: Slide-In
• Heat - Cool: Yes
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Rotary Compressor: Yes
• Venting Features: Concealed Manual Vent Control
• SmartFan Fan Cycle: Yes
• Discharge Grille: 2-position
• Fan Motor: 1
• Heating System: Electric Resistance
• Cooling EER (BTUH / Watt): 10.4/10.5
• Cooling BTUH (MAX): 12400.0 Btu
• Cooling BTUH (MIN): 12200.0 Btu
• Installation: Through-the-Wall
• Overall Depth: 20.9 in
• Overall Height: 16 in
• Overall Width: 42.4 in
• Heating - Electric - Heater Watts: 3500
• Cooling - Watts: 1190/1160
• Cooling - Amperes: 6.1/5.8
• Voltage (MAX): 230.0 V
• Voltage (MIN): 208.0 V
• Air Flow (CFM): 600
• Maximum Amperage: 20 Amp
• Maximum Voltage: 230V
• Number Of Cooling Speeds: 3 (cool) / 3 (heat)
• Air Conditioner Type: Through-the-Wall
• BTU Cooling Rating: 12000
• Air Filter Features: Removable, Washable
• Heater Included: No
• Wattage: 1160-1190
• Amp: 5.8-6.1
• Voltage: 208/240
