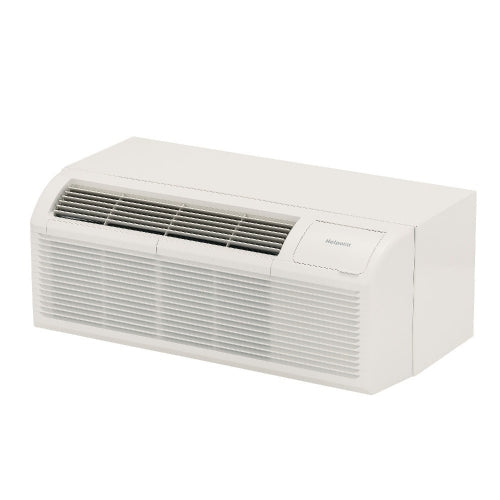

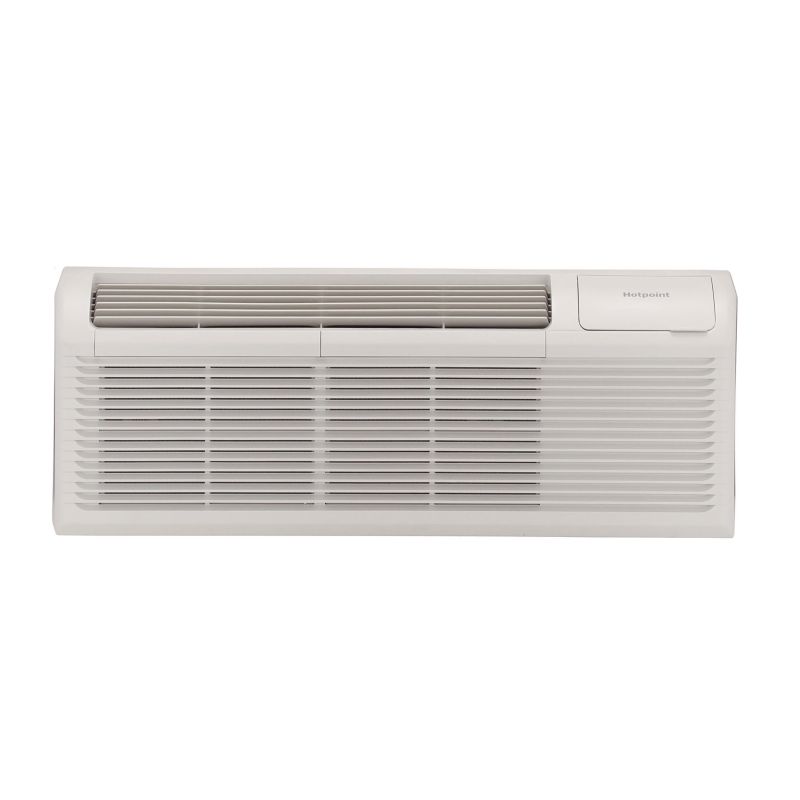

Ge Appliances AH12H12D3B HotPoint 12,000 BTU PTAC Heat Pump Air Conditioner Unit with 3.5KW Electric Heater - R32

Product Description

The GE APPLIANCES AH12H12D3B HotPoint PTAC unit is easy to install; simply remove the old and slide in the new. This 12,000 BTU heat pump air conditioner includes a 20 amp, 208/230 volt power cord. It features automatic freeze and indoor frost control to keep the unit operating in peak condition.

• 3-Speed Fan
• 4-Temperature Limiting Options
• Automatic freeze and indoor frost control

Product Highlights

This HotPoint PTAC unit has a 3-speed fan, 4-temperature limiting options, and automatic freeze and indoor frost control. It also features a nine-point diagnostic code system.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: AH12H12D3B

Technical Specifications

• SKU: AH12H12D3B
• Brand/Manufacturer: GE
• Cooling BTU: 12,000
• Heating BTU: 10,900
• Maximum CFM: 387
• Electric Heat: 3.5 Kilowatts
• Refrigerant: R32
• EER: 10.5
• Compressor Type: Rotary
• Electrical: 208 / 230 Volts
• Min. Breaker Size: 20 Amps
• BTU/Tonnage: 12,000 BTU/1 Ton
• Certification: UL / CUL / AHRI
• Height: 16"
• Width: 42.4"
• Depth: 21.9"
• CFM Indoor Fan High: 387
• CFM Indoor Fan Low: 308
• CFM Indoor Fan Medium: 350
• Cooling BTUH (MAX): 12,000 Btu
• Cooling BTUH (MIN): 11,800 Btu
• Cooling EER (BTUH / Watt): 10.5
• Heating - Reverse Cycle - BTUH: 10800/10500
• "SmartFan" Fan Cycle: Yes
• Auto Power Recovery: Yes
• Chassis Type: Slide-In

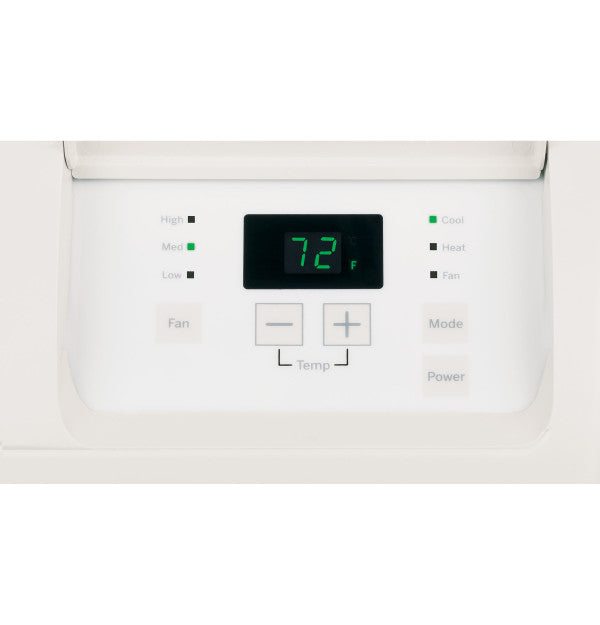

• Control Type: Electronic
• Discharge Grille: 2-position
• Fan Motor: 2
• Fan Speed Selections: 3 Cooling 3 Heating 3 Fan Only
• Heat - Cool: Yes
• Heat Pump: Yes
• Heating - Reverse Cycle - COP: 3.2
• Heating System: Heat Pump with Resistance Backup
• Manual Vent Control: Hidden
• Outdoor Vent / Exhaust: Yes
• Product Type: Packaged Terminal Air Conditioners (PTAC)
• Rotary Compressor: Yes
• Temperature Range: 62 - 80 F
• Unit Features: Freeze Sentinel Automatic Indoor Frost Control Heat Pump with Resistance Heat Backup Automatic Emergency Heat Auto Power Recovery Remote Thermostat Compatibility Central Desk Control Compatibility Power Cord (LCDI) included
• Venting Features: Concealed Manual Vent Control Vent Air Filter
• Cooling - Amperes: 5.0/5.4
• Cooling - Watts: 1140/1120
• Heating - Electric - Heater Amps: 15.3/13.7
• Heating - Electric - Heater Watts: 3535/2900
• Heating - Reverse Cycle - Amps: 4.3/4.6
• Heating - Reverse Cycle - Watts: 985/960
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Maximum Amperage: 20 Amp
• Maximum Voltage: 208V/230V
• Fan Speeds: 3-Speed
