Product Description

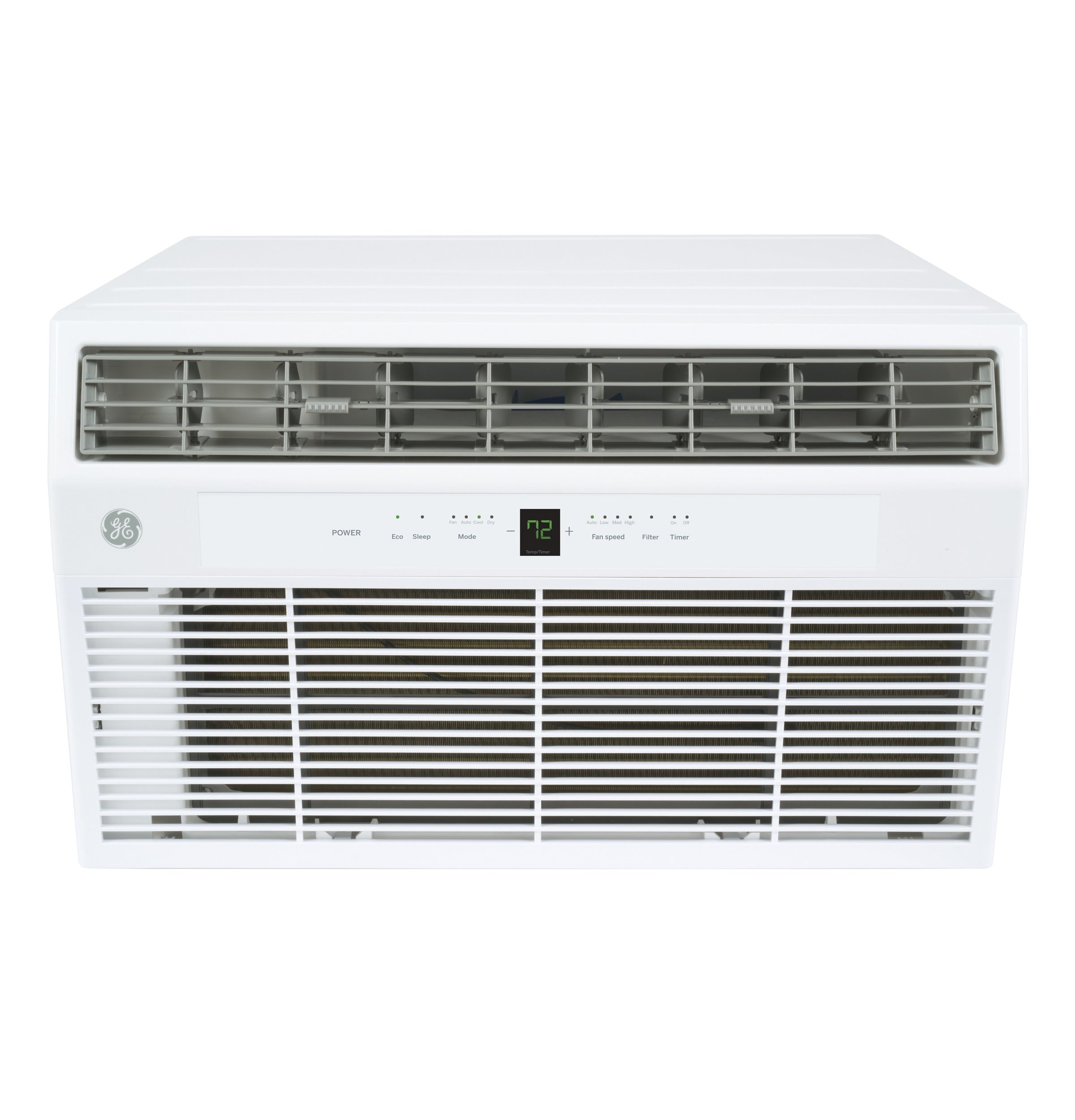

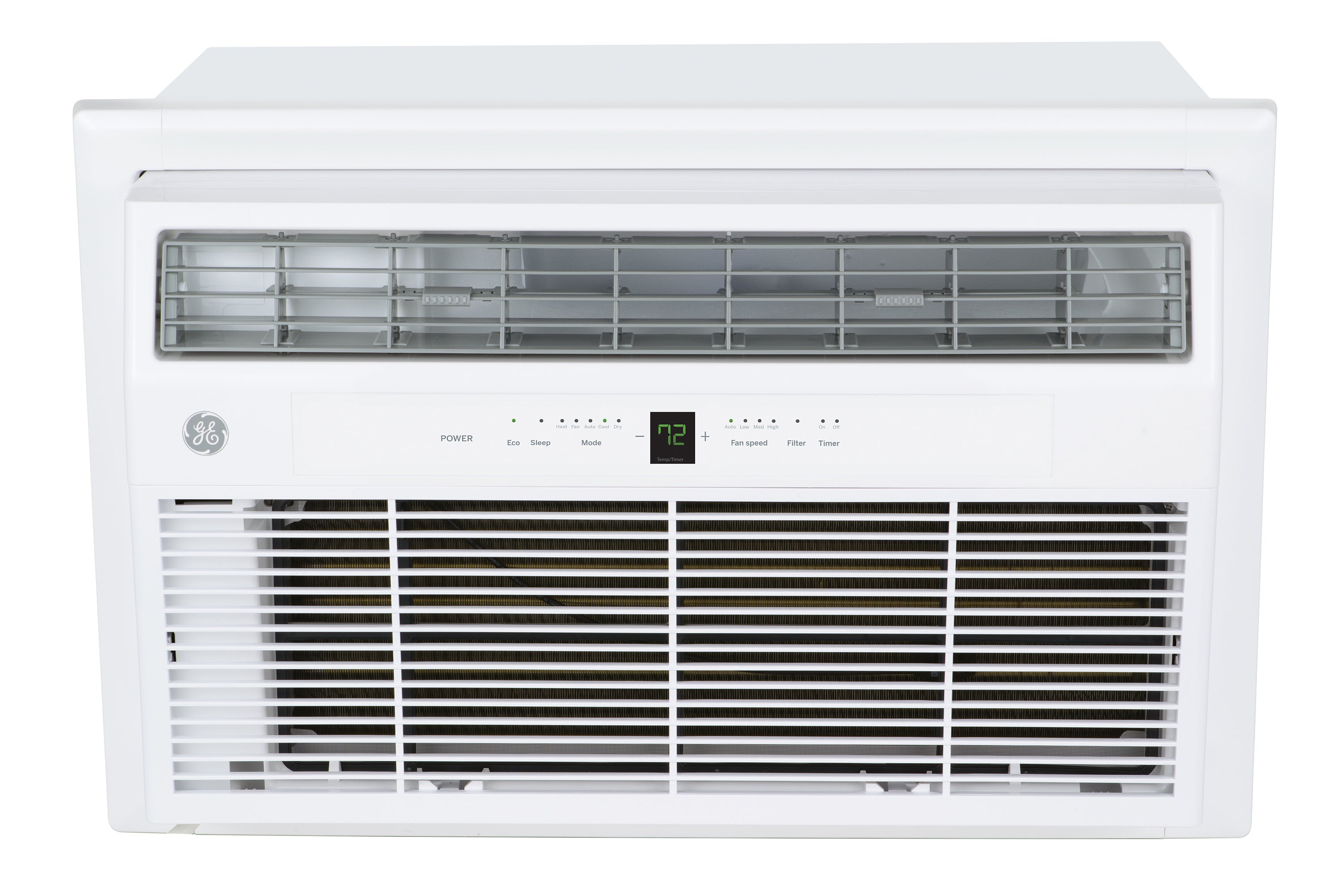

The GE AKCQ12DCJ Built In Air Conditioner offers a true universal fit with simple slide-in installation for a precise fit into a variety of different wall sleeves. Its sleek appearance complements any room while providing efficient cooling or heating. The large LCD display allows for easy control of room air comfort. It cools areas between 450-550 square feet.
- Features ECO Mode for energy savings and Dry Mode for dehumidification.
- Offers 6-way directional airflow and includes a washable filter.
- Comes with remote control, universal trim kit, and Sleep Mode.
Product Highlights
This GE built-in air conditioner provides a universal fit, sleek design, and user-friendly features for optimal room comfort and energy efficiency.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AKCQ12DCJ
Technical Specifications
-
Accessories Wall Case: RAB46/47/48/24 Required At Additional Cost
-
Color Appearance: White
-
Cooling BTUH (MAX): 12,000 Btu
-
Cooling BTUH (MIN): 11,700 Btu
-
Cooling EER (BTUH / Watt): 10.5
-
Dehumidification (pts./hr.): 3.6
-
Quiet Package: 59 dBA
-
Air Flow Volume CFM High/Medium/Low: 277/258/235
-
Area to Cool: 450-550
-
Chassis Type: Fixed
-
Cord Length: 48"
-
Digital Time Temp Display: Yes
-
EER: 9.5
-
Fan Speed Selections: 3 Cooling
3 Fan Only
-
Filter Type: Easy Access
Permanent Mesh
Rigid
Washable
Tilt-Out
-
LCDI / AFCI power cord: Yes
-
Louver Style: 6-Way
-
Optional Grill: RAG13/RAG13A/RAG14E
-
Plug Type: B / 6-15P
-
Power Cord Length: 6 ft
-
Product Type: Built-In
-
Refrigerant Type: R32
-
Remote Control: Yes
-
Room Air Conditioner Features: On/Off Timer
Energy Saver
Auto Fan
Dehumidify Function
Sleep Mode
Infrared Remote Control
Batteries Included
Filter Indicator
Rotary Compressor
Yes
-
Thermostat Type: Thermistor
-
Vent/Air Exchange Exhaust: Top
-
CEER: 9.5
-
Cooling - Rated Cooling Amps AHAM: 5.4
-
Cooling - Watts: 1120 / 1190
-
Voltage (MAX): 230 V
-
Voltage (MIN): 208 V
-
Voltage/Hertz/Phase: 230-208/60/1
-
Volts/Hertz: 230V-208V/60Hz
-
Cutout Depth (in): 16.375
-
Cutout Height (in): 15.625
-
Cutout Width (in): 26
-
Depth to Louvers: 20.625 in
-
Net Weight: 87 lb
-
Overall Depth: 19 in
-
Overall Height: 14.5625 in
-
Overall Width: 24.0625 in
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 26
-
Trim Kit / Installation Kit: Included
-
Compressor: Standard
-
Energy Star: Yes
-
Includes Heat Mode: No
-
Cooling Amps (@208V): 5.6
-
Cooling Watts (@208V): 1114
-
Cooling BTUs (@230V): 12000
-
Cooling Amps (@230V): 5.2
-
Cooling Watts (@230V): 1142
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Control Type: Electronic/Digital
-
Filter Access: Tilt-out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: Yes
-
Fresh Air Intake: No
-
Sleep Mode: Yes
-
Max. Wall Thickness (in.): 20
-
Wall Cut-Out Width (in.): 26.125
-
Wall Cut-Out Height (in.): 15.75
-
Weight (lbs.): 87
-
Certifications: ADA Compliant, Energy Star, AHAM, CUL, UL
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15
-
Circuit Breaker Size (Amps): 15
-
ADA Compliant: True
-
ENERGY STAR® Qualified: True
