Product Description

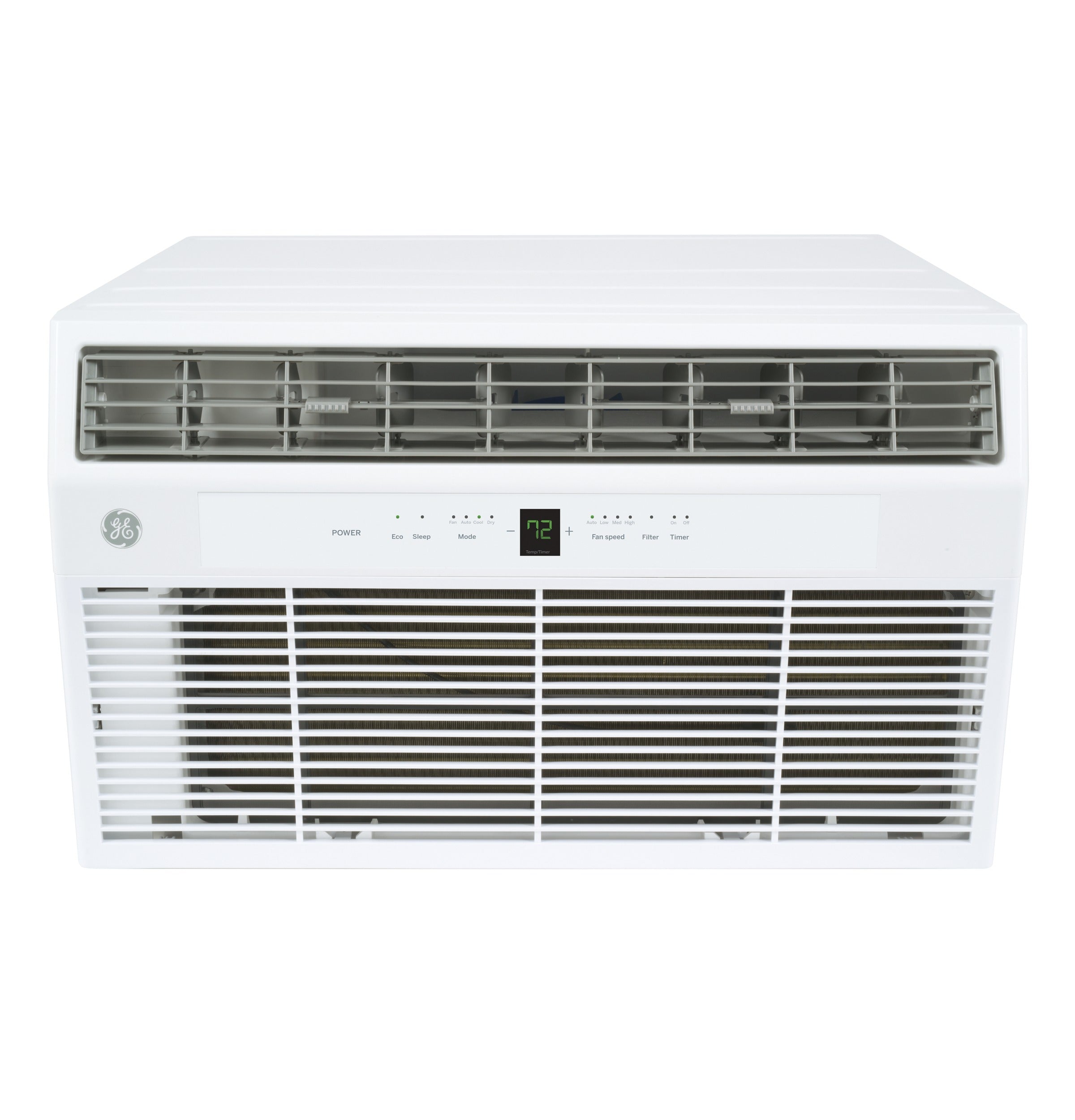

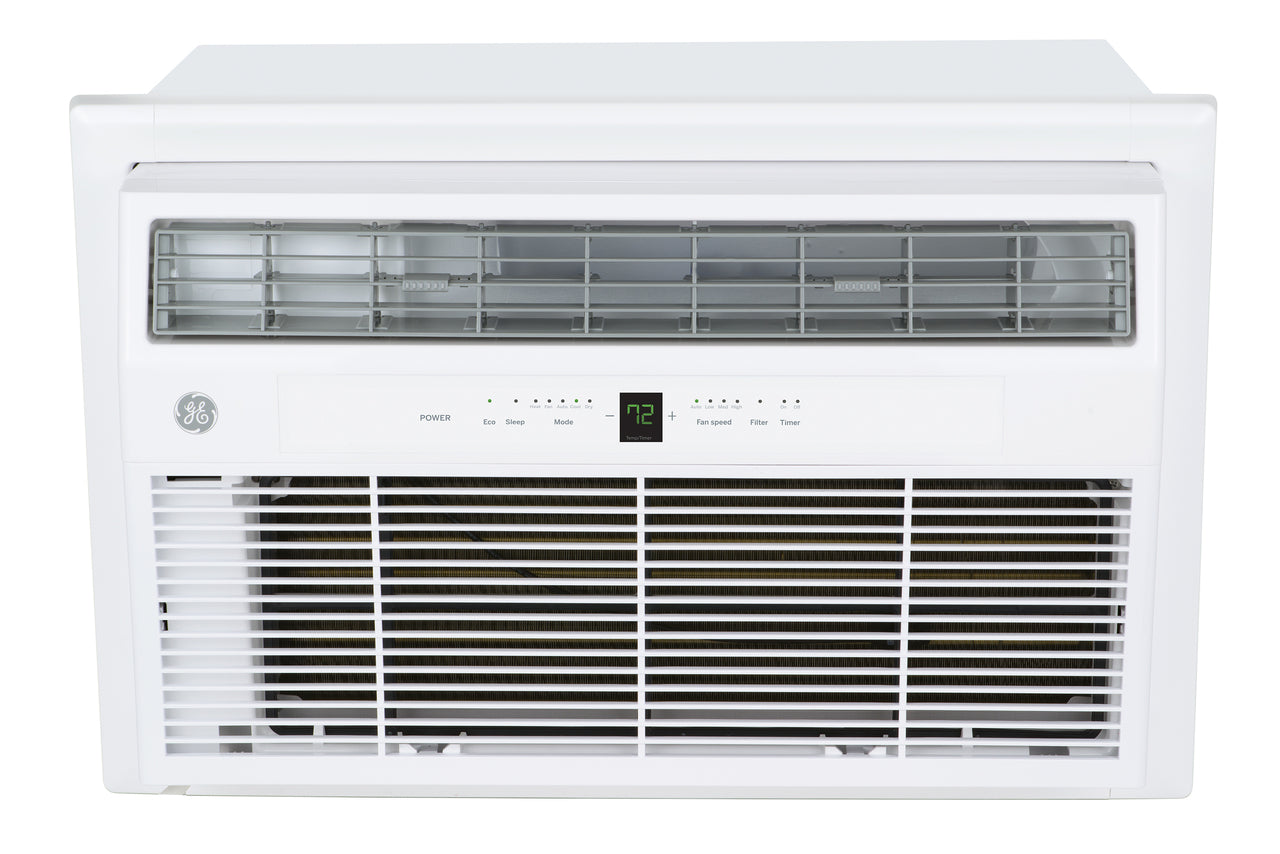

The GE AKCQ12ACJ Built In Air Conditioner offers a true universal fit with simple slide-in installation. Its sleek appearance complements any room while providing cooling or heating. The large LCD display allows for easy control of room air comfort. It cools 450-550 sq. ft. and features ECO Mode, Dry Mode, and 6-way directional airflow.
- True Universal Fit for easy slide-in installation.
- Sleek appearance with a bright white color.

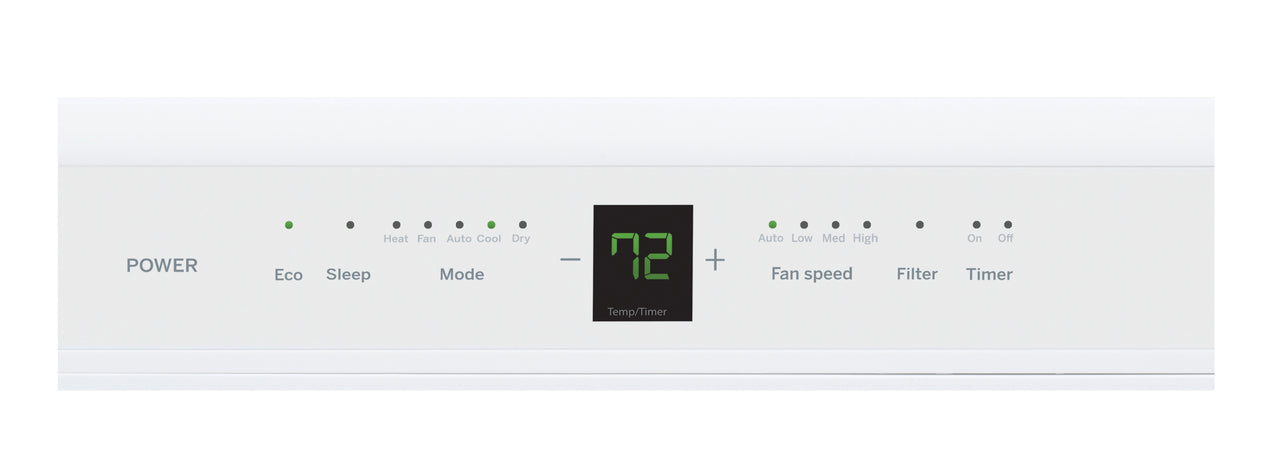

- Large LCD display for easy control.
Product Highlights
This GE built-in air conditioner provides efficient cooling and dehumidification with user-friendly features and a seamless design.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AKCQ12ACJ
Technical Specifications
-
ACCESSORIES: Wall Case RAB46/47/48/24 Required At Additional Cost
-
Color Appearance: White
-
CAPACITY: Cooling BTUH (MAX) 12,000 Btu
-
Cooling EER (BTUH / Watt): 10.5
-
Dehumidification (pts./hr.): 3.6
-
ECONOMICAL / QUIET: Quiet Package 59 dBA
-
Air Flow Volume CFM High/Medium/Low: 286/258/235
-
Area to Cool: 450-550
-
Chassis Type: Fixed
-
Cord Length: 48"
-
Digital Time Temp Display: Yes
-
EER: 9.5
-
Fan Speed Selections: 3 Cooling
3 Fan Only
-
Filter Type: Easy Access
Permanent Mesh
Rigid
Washable
Tilt-Out
-
LCDI / AFCI power cord: Yes
-
Louver Style: 6-Way
-
Optional Grill: RAG13/RAG13A/RAG14E
-
Plug Type: A / 5-15P
-
Product Type: Built-In
-
Refrigerant Type: R32
-
Remote Control: Yes
-
Room Air Conditioner Features: On/Off Timer
Energy Saver
Auto Fan
Dehumidify Function
Sleep Mode
Infrared Remote Control
Batteries Included
Filter Indicator
Rotary Compressor
-
Thermostat Type: Thermistor
-
Vent/Air Exchange Exhaust: Top
-
CEER: 9.5
-
Cooling - Rated Cooling Amps AHAM: 10.9
-
Cooling - Watts: 1230
-
Electrical Requirements: 115V
-
Hertz: 60
-
Volts/Hertz: 115V; 60Hz
-
Watts: 1230
-
Cutout Depth (in): 16.375
-
Cutout Height (in): 15.625
-
Cutout Width (in): 26
-
Depth to Louvers: 20.625 in
-
Overall Depth: 19 in
-
Overall Height: 14.5625 in
-
Overall Width: 24.0625 in
-
Sleeve Required for Install: Yes
-
Fits Sleeve Size (in.): 26
-
Trim Kit / Installation Kit: Included
-
Compressor: Standard
-
Energy Star: Yes
-
CFMs: 235 / 258 / 286 (L / M / H)
-
Includes Heat Mode: No
-
Cooling BTUs (@115V): 12000
-
EER (@115V): 10.5
-
CEER (@115V): 10.2
-
Cooling Amps (@115V): 10.0
-
Cooling Watts (@115V): 1142
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Control Type: Electronic/Digital
-
Filter Access: Tilt-out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: Yes
-
Fresh Air Intake: No
-
Sleep Mode: Yes
-
Width (in.): 24.063
-
Depth (in.): 19
-
Height (in.): 14.563
-
Max. Wall Thickness (in.): 20
-
Wall Cut-Out Width (in.): 26.125
-
Wall Cut-Out Height (in.): 15.75
-
Weight (lbs.): 87.5
-
Certifications: ADA Compliant, Energy Star, AHAM, CUL, UL
-
Voltage: 110-120V
-
Plug Face (NEMA): 5-15P
-
Circuit Breaker Amps: 15
-
Cord Length (in.): 48
-
BTU & Coverage Area: 12000 BTU (550 Sq.Ft)
-
Dimensions: H 14.6 in, W 24 in, D 19 in
