Product Description

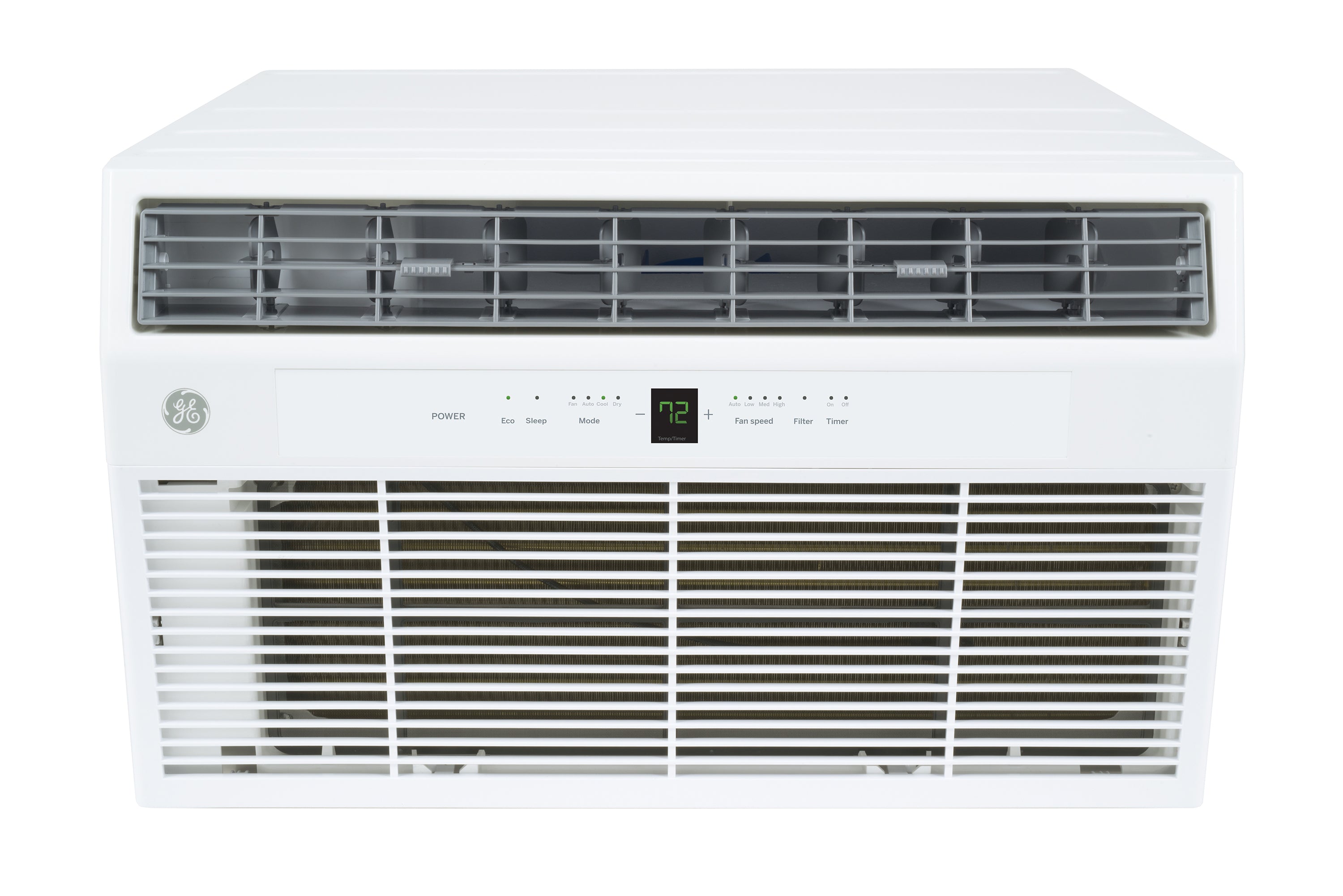

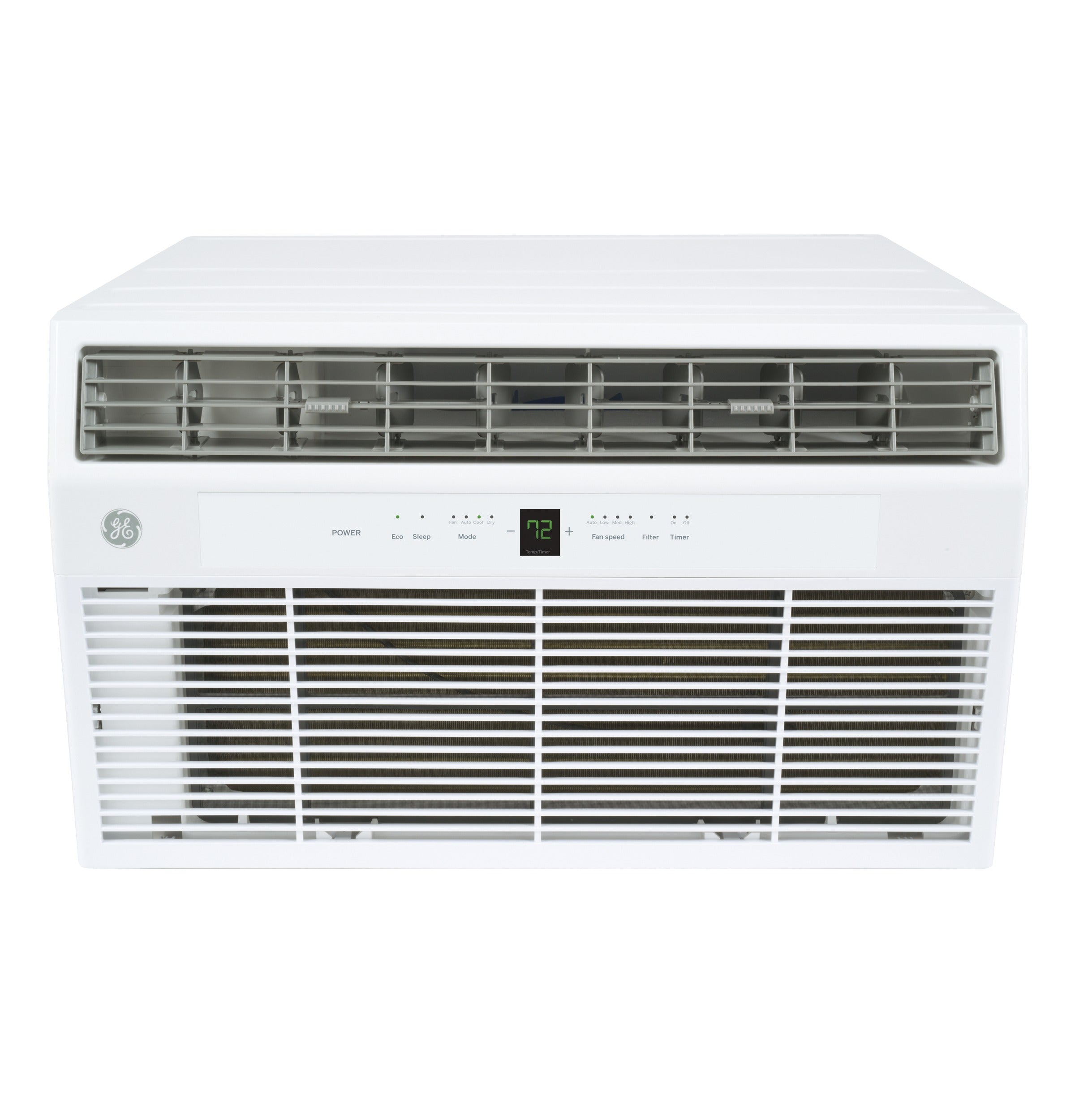

The GE AKCQ10DCJ Built In Air Conditioner offers a true universal fit with simple slide-in installation for various wall sleeves. Its sleek design complements any room while cooling or heating. Features include a large LCD display, ECO mode, dry mode, and 6-way directional airflow. A washable filter ensures a cleaner environment.
- True Universal Fit for easy slide-in installation
- 6-Way Directional Airflow for targeted cooling and heating
- ECO Mode for energy savings
Product Highlights
This 10,000 BTU air conditioner provides efficient cooling and dehumidification with multiple fan speeds and a remote control for convenient operation.
Product Information
Standard Information
-
Brand: GENERAL ELECTRIC
-
Manufacturer Part Number: AKCQ10DCJ
Technical Specifications
-
Product Type: Built-In
-
Capacity: 10,000 Btu
-
Cooling BTUH (MAX): 10,000 Btu
-
Cooling BTUH (MIN): 9,800 Btu
-
Cooling EER (BTUH / Watt): 10.6
-
Dehumidification (pts./hr.): 3.0
-
Air Flow Volume CFM High/Medium/Low: 275/240/209
-
Chassis Type: Fixed
-
Cord Length: 48"
-
Digital Time Temp Display: Yes
-
EER: 9.6
-
Fan Speed Selections: 3 Cooling; 3 Fan Only
-
Filter Type: Easy Access; Washable; Permanent Mesh
-
LCDI / AFCI power cord: Yes
-
Louver Style: 6-Way Air Direction
-
Optional Grill: RAG13/RAG13A/RAG14E
-
Plug Type: B / 6-15P
-
Refrigerant Type: R32
-
Remote Control: Yes
-
Room Air Conditioner Features: On/Off Timer
Energy Saver
Auto Fan
Dehumidify Function
Sleep Mode
Infrared Remote Control
Batteries Included
Filter Indicator
Rotary Compressor
-
Thermostat Type: Thermistor
-
Vent/Air Exchange Exhaust: Top air discharge
-
CEER: 10.6
-
Cooling - Rated Cooling Amps AHAM: 4.5 / 4.8
-
Cooling - Watts: 1010 / 990
-
Electrical Requirements: 208/230V
-
Hertz: 60
-
Volts/Hertz: 230V-208V/60Hz
-
Watts: 1010/ 990
-
Overall Depth: 19 in
-
Overall Height: 14.5625 in
-
Overall Width: 24.0625 in
-
Energy Star: Yes
-
Sleeve Required for Install: Yes
-
Trim Kit / Installation Kit: Included
-
Temperature Range: 60° - 85°F
-
Compressor: Standard
-
CFMs: 209 / 240 / 275 (L / M / H)
-
Includes Heat Mode: No
-
Cooling BTUs (@208V): 9800
-
EER (@208V): 10.6
-
CEER (@208V): 10.6
-
Cooling Amps (@208V): 4.8
-
Cooling Watts (@208V): 924
-
Cooling BTUs (@230V): 10000
-
EER (@230V): 10.6
-
CEER (@230V): 10.6
-
Cooling Amps @230 Volt: 4.5
-
Cooling Watts @230 Volt: 943
-
Make-Up Air: No
-
Energy Saver Mode: Yes
-
Fan Speeds: 3
-
Filter Access: Tilt-out
-
Connectivity: Not WiFi Compatible
-
24 Hour ON/OFF Timer: Yes
-
Fresh Air Intake: No
-
Sleep Mode: Yes
-
Max. Wall Thickness (in.): 20
-
Wall Cut-Out Width (in.): 26.125
-
Wall Cut-Out Height (in.): 15.75
-
Voltage: 208-230V
-
Plug Face (NEMA): 6-15
-
Circuit Breaker Size (Amps): 15
-
Cord Length (in.): 48
-
Depth to Louvers: 20.625 in
-
Certifications: ADA Compliant, Energy Star, AHAM, CUL, UL
