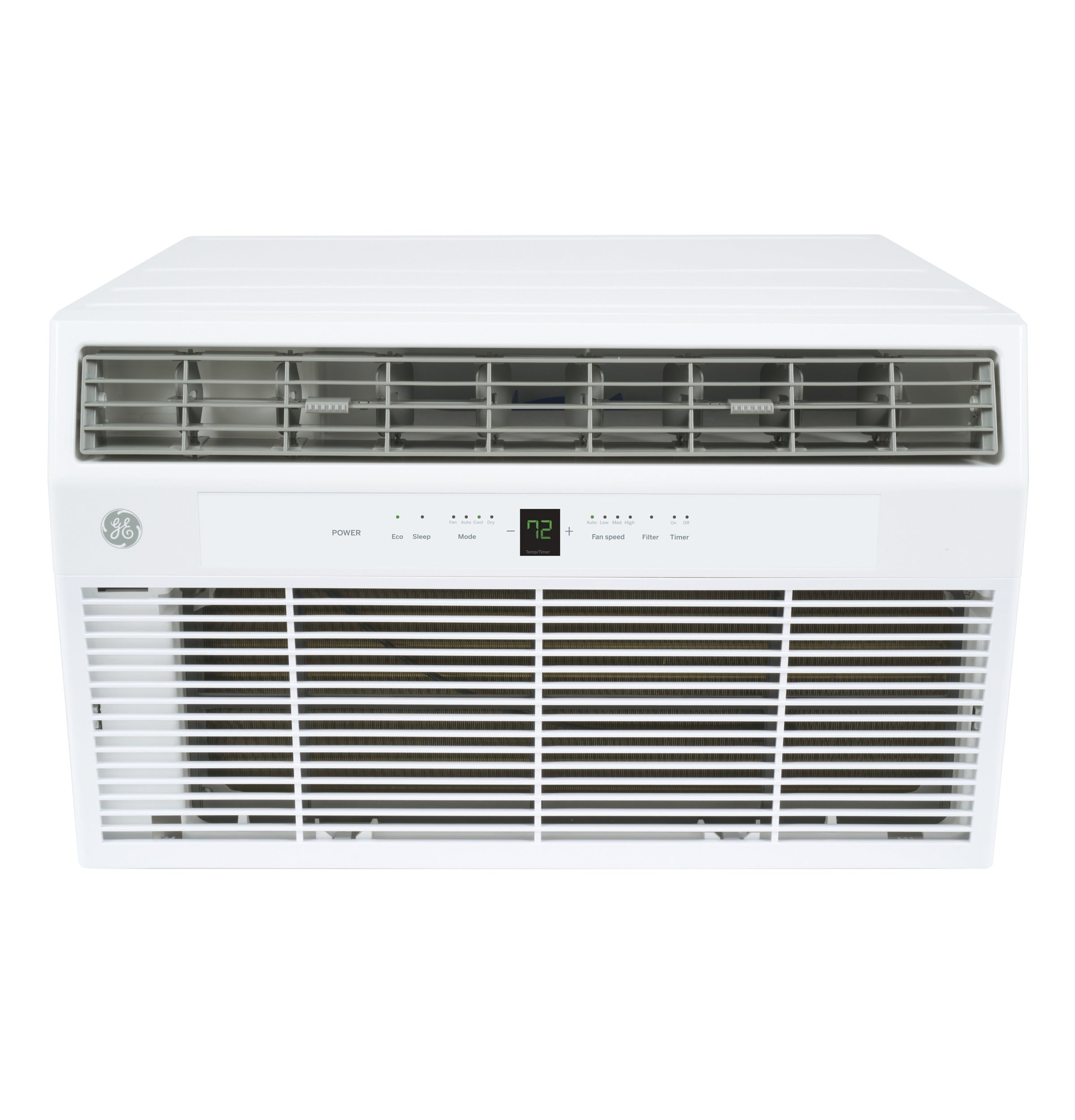

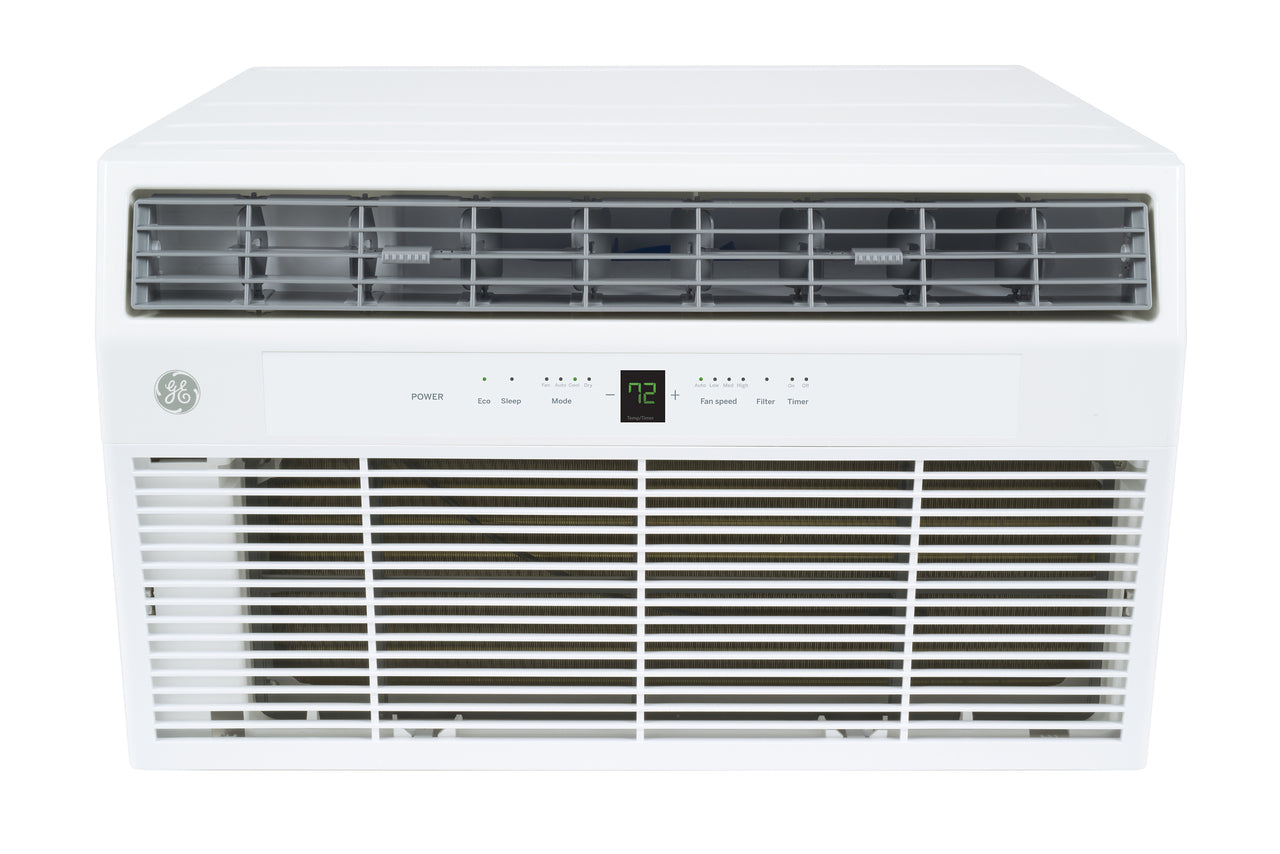

GE AKCQ10ACJ built in air conditioner 10000 BTU

Product Description

The GE AKCQ10ACJ Built In Air Conditioner offers a true universal fit with simple slide-in installation for a precise fit into various wall sleeves. Its sleek appearance complements any room, providing stylish cooling or heating. The large LCD display allows for easy control of room air comfort. The 6-way directional airflow ensures targeted cooling or heating.

• Features ECO Mode to save energy by cycling the fan off during cooling.
• Dry Mode dehumidifies for a more comfortable atmosphere.
• Includes a remote control for convenient adjustments.

Product Highlights

This built-in air conditioner provides a seamless appearance with the included universal trim kit and features a washable filter to help maintain a cleaner environment.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AKCQ10ACJ

Technical Specifications

• Accessories Wall Case: RAB46/47/48/24 Required At Additional Cost
• Color Appearance: White
• Cooling BTUH (MAX): 10,000 Btu
• Cooling EER (BTUH / Watt): 10.6
• Dehumidification (pts./hr.): 3.0
• Air Flow Volume CFM High/Medium/Low: 269/234/203
• Annual Operating Cost: 102
• Chassis Type: Fixed
• Cord Length: 48"
• Digital Time Temp Display: Yes
• EER: 9.6
• Fan Speed Selections: 3 Cooling 3 Fan Only
• Filter Type: Easy Access Permanent Mesh Rigid Washable Tilt-Out
• LCDI / AFCI power cord: Yes
• Louver Style: 6-Way
• Optional Grill: RAG13/RAG13A/RAG14E
• Plug Type: A / 5-15P
• Product Type: Built-In
• Refrigerant Type: R32
• Remote Control: Yes
• Room Air Conditioner Features: On/Off Timer Energy Saver Auto Fan Dehumidify Function Sleep Mode Infrared Remote Control Batteries Included Filter Indicator Rotary Compressor
• Thermostat Type: Thermistor
• Vent/Air Exchange Exhaust: Top
• CEER: 9.6
• Cooling - Rated Cooling Amps AHAM: 9
• Cooling - Watts: 1010
• Voltage (MAX): 115 V
• Voltage/Hertz/Phase: 115/60/1
• Volts/Hertz: 115V; 60Hz
• Depth to Louvers: 20.625 in
• Net Weight: 79 lb
• Overall Depth: 19 in
• Overall Height: 14.5625 in
• Overall Width: 24.0625 in
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 26
• Trim Kit / Installation Kit: Included
• Compressor: Standard
• Energy Star: Yes
• CFMs: 203 / 234 / 269 (L / M / H)
• Includes Heat Mode: No
• Cooling BTUs (@115V): 10000
• EER (@115V): 10.6
• CEER (@115V): 10.6
• Cooling Amps (@115V): 8.3
• Cooling Watts (@115V): 943
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Control Type: Electronic/Digital
• Filter Access: Tilt-out
• Connectivity: Not WiFi Compatible
• 24 Hour ON/OFF Timer: Yes
• Fresh Air Intake: No
• Sleep Mode: Yes
• Width (in.): 24.063
• Depth (in.): 19
• Height (in.): 14.563
• Max. Wall Thickness (in.): 20
• Wall Cut-Out Width (in.): 26.125
• Wall Cut-Out Height (in.): 15.75
• Weight (lbs.): 79
• Certifications: ADA Compliant, Energy Star, AHAM, CUL, UL
• Voltage: 110-120V
• Plug Face (NEMA): 5-15P
• Circuit Breaker Amps: 15
• Power Cord Length (in.): 48
• Product Height: 14.56 Inches
• Product Width: 24.06 Inches
• Product Depth: 19 Inches
• Product Weight (lbs.): 79 Lb(s)
• Overall Height with Sleeve (in.): 15.63 Inches
• Overall Depth with Sleeve (in.): 21.81 Inches
• Overall Width with Sleeve (in.): 26 Inches
• Room Size: Small/Medium
• Cooling BTU: 10000 BTU
• Cooling Speeds: 3
• Number of Fan Speeds: 3 Fan Speeds
• Heat/Cool: No
• No. of Air Flow Directions: 6
• CFM: 269 CFM
• Moisture Removal (Pints/hr): 3 Pints/hr
• Filter Description: Washable Filter
• Washable Filter: Yes
• Standard Mesh Filter: Yes
• Charcoal Filter: No
• Inverter Technology: No
• Universal Fit Wall Sleeve: Yes
• WiFi Connected: No
• Temperature Display: Yes
• Automatic Timer: Yes
• Delay Timer: No
• Automatic Shut Off/Sleep Mode: Yes
• Quietest: No
• Remote Control Included: Yes
• Replacement Sleeve Included: No
• Replacement Sleeve Model: RAB24
• Upgradeable Filter: No
• Upgradeable Filter Model Number: -
• Trim Kit Included: Yes
• Energy Star Rated: Yes
• Energy Efficiency Ratio: 9.6 EER
• Energy Star Approved: Yes
• Power Requirements: 110 Volt 15 or 20 Amp Circuit (Parallel Plug)
• Voltage (V): 115 Volts
• Amperage: 15 Amps
• Auto Restart: Yes
• Power Cord Location: Left Side
• Cooling Amps: 9 Amps
• Outlet Type: 115V Grounded Outlet
• ADA Compliant: Yes
• CSA Listed: No
• ETL Listed: No
• UL Listed: No
• Type of Through-the-Wall: 26" Through-the-Wall
• Electrical Consumpton Standby: 6 ( kWh/year)
