Ge AJEQ12DWJ 12000 Btu Through-the-wall Ac with Electric Heat

Product Description

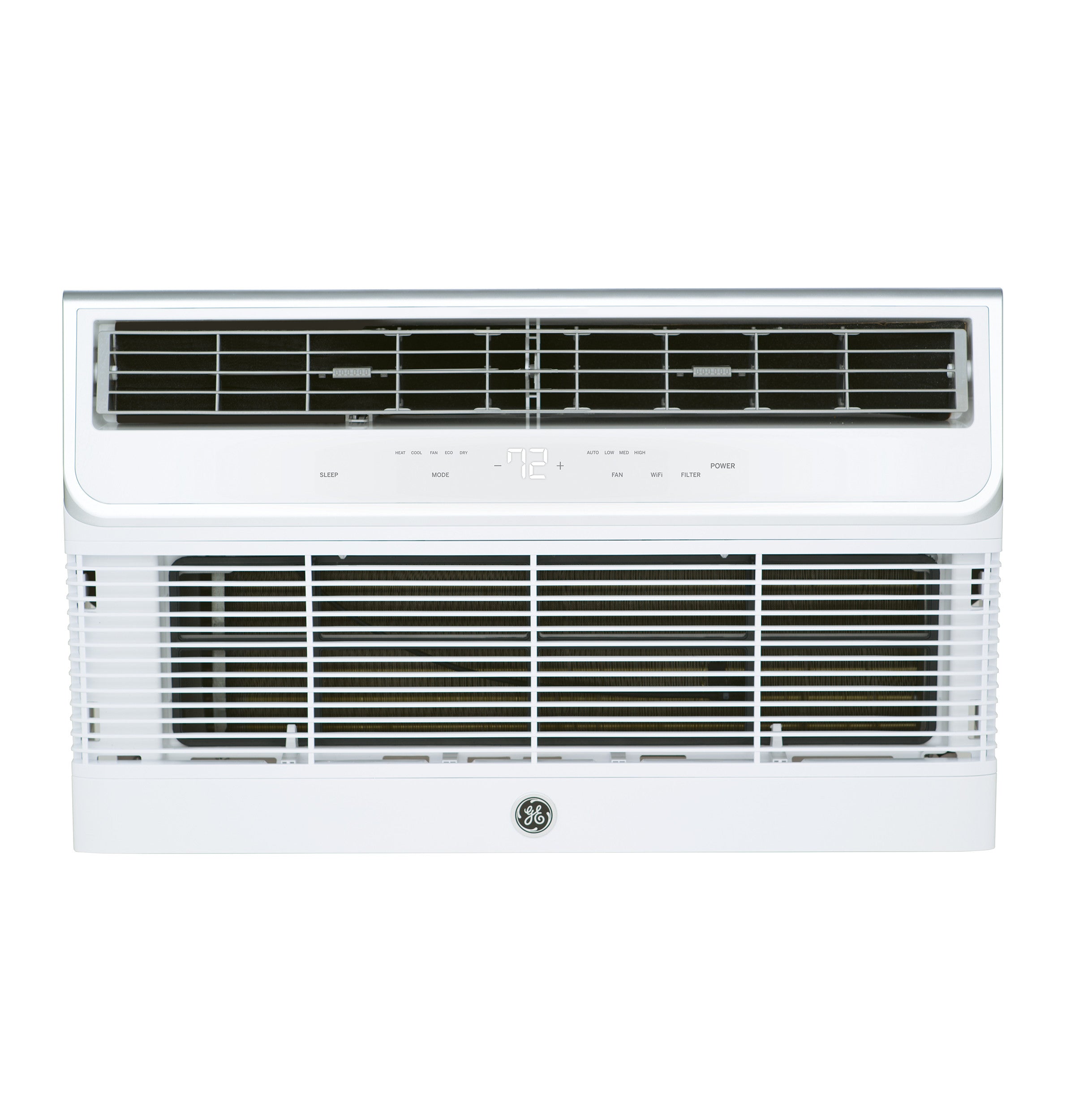

The GENERAL ELECTRIC AJEQ12DWJ is a 26-inch through-the-wall heat and cool air conditioner rated at 12,000 BTU/h cooling capacity at 230 volts, with an integrated electric resistance heat strip delivering up to 10,600 BTU/h at 230V. It uses R32 refrigerant and operates on 208/230V single-phase power. Built-in WiFi via the GE SmartHQ communication card allows remote monitoring and control through a mobile device. The unit carries an Energy Star certification and achieves a Combined Energy Efficiency Rating (CEER) of 9.5 at both voltage ratings. Licensed HVAC technicians and electricians typically handle installation and electrical connection for this class of equipment.

The AJEQ12DWJ is designed for through-the-wall installations in residential and light commercial spaces where window-based units are not practical. It fits a 26-inch sleeve opening and extends only 5 inches into the room from the front face, which is notably shallower than many competing units. The unit includes ECO Mode for cycling the fan when active cooling is not needed, Dry Mode for targeted dehumidification, AUTO Mode for fan-speed adjustment based on temperature variance, a 24-hour on/off timer, Sleep Mode, and a washable tilt-out filter. A full-function remote control is included. The unit features seacoast corrosion protection with special coatings and double paint layers on coils, the base pan, the compressor, and stainless fasteners. It meets California and Washington state efficiency requirements. A sleeve (RAB26A) is required for new installations and is sold separately.

Key Features

• 12,000 BTU/h cooling at 230V with 11,700 BTU/h at 208V
• Electric resistance heat strip: 10,600 BTU/h at 230V, 8,600 BTU/h at 208V
• Built-in WiFi with GE SmartHQ card for remote control and monitoring
• Energy Star certified with CEER of 9.5 at both 208V and 230V
• 3 fan speeds, 6-way directional airflow, top air discharge
• Seacoast corrosion protection on coils, base pan, compressor, and fasteners
• ADA compliant with electronic digital controls and auto-dimming LCD display

Compatibility

This unit requires a 26-inch through-the-wall sleeve for new installations; sleeve model RAB26A is color-matched and sold separately. The AJEQ12DWJ directly replaces the AJEQ12DWH. Wall cutout dimensions are 26.125 inches wide by 15.75 inches high, with a maximum wall thickness of 20 inches.

Installation Notes

Installation must be performed by a qualified HVAC technician and a licensed electrician, as the unit requires a dedicated 208/230V circuit sized to local NEC requirements. Disconnect and lock out all electrical power before removing an existing unit or working inside an existing sleeve. Do not operate the unit without the sleeve fully secured and sealed per the installation instructions, as improper sealing can cause condensate and air infiltration issues. A new sleeve (RAB26A) is required for any installation where no sleeve is currently in place.

Technical Specifications

• Cooling Capacity (230V): 12,000 BTU/h
• Cooling Capacity (208V): 11,700 BTU/h
• CEER (208V and 230V): 9.5
• Electric Heat Output (230V): 10,600 BTU/h
• Electric Heat Output (208V): 8,600 BTU/h
• Heat Strip Size (230V): 3.1 kW
• Heat Strip Size (208V): 2.5 kW
• Voltage: 208/230V
• Heating Amps (230V): 15.0 amps
• Heating Watts (230V): 3,470 watts
• Heating Amps (208V): 14.0 amps
• Heating Watts (208V): 2,850 watts
• Airflow (230V): 245 / 285 CFM (low / high)
• Airflow (208V): 235 / 275 CFM (low / high)
• Dehumidification: 3.4 pints/hr
• Refrigerant: R32
• Fan Speeds: 3
• Unit Width: 24.81 inches
• Unit Depth: 19.91 inches
• Unit Height: 14.88 inches
• Wall Cutout Width: 26.125 inches
• Wall Cutout Height: 15.75 inches
• Maximum Wall Thickness: 20 inches
• Weight: 90.5 pounds
• Sleeve Type: 26-inch through-the-wall (sleeve required for new install)
• Connectivity: Built-in WiFi (GE SmartHQ)
• Control Type: Electronic/Digital with auto-dimming LCD display
• Certifications: Energy Star, ADA Compliant, AHAM, UL, CUL
• Warranty: 2 years unit, 5 years sealed system

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AJEQ12DWJ
