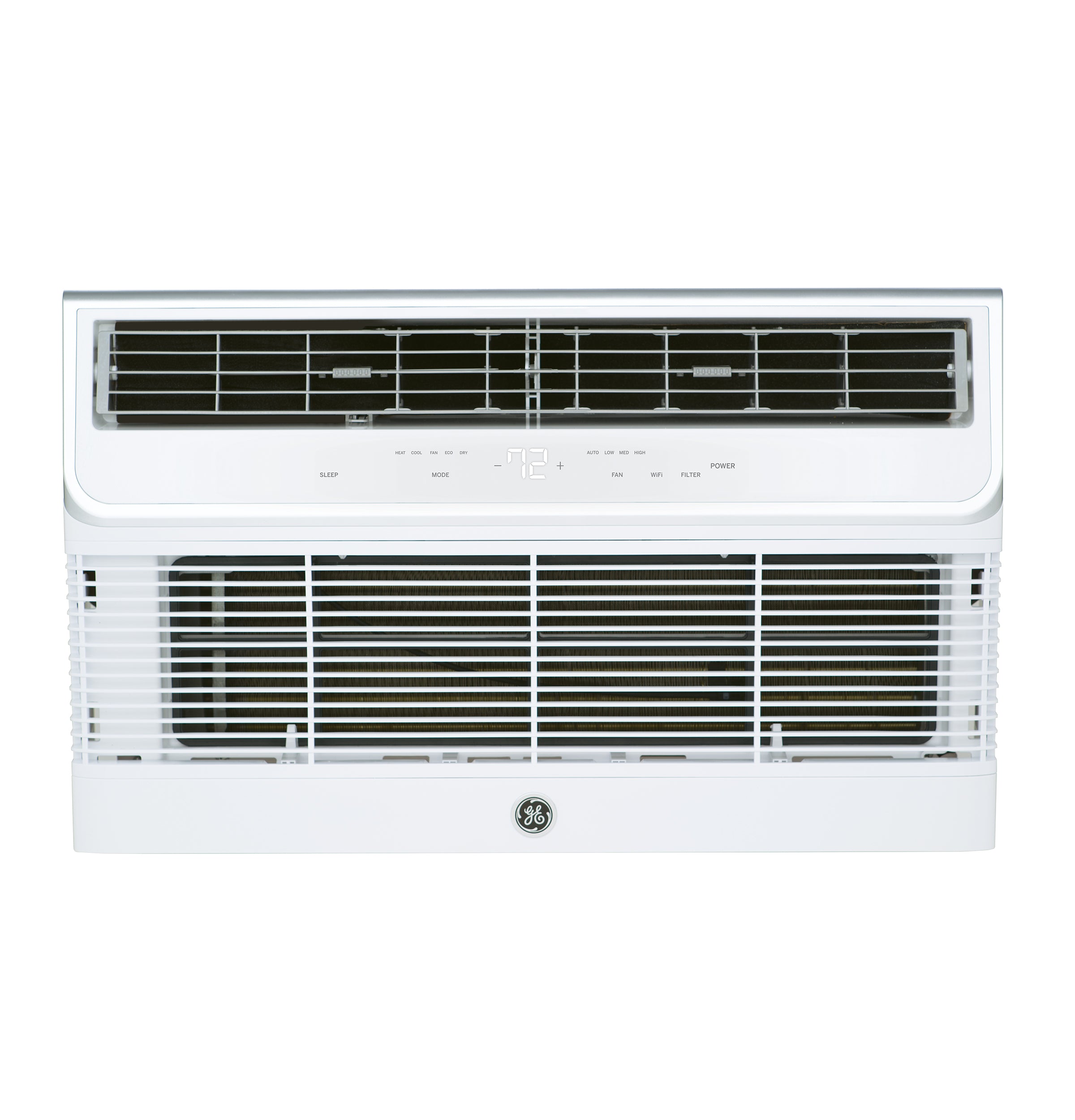

GE AJEQ10DWJ 230/208 Volt Built-In Heat/Cool 10,000 BTU Room Air Conditioner

Product Description

The GE AJEQ10DWJ 230/208 Volt Built-In Heat/Cool 10,000 BTU Room Air Conditioner features built-in WiFi powered by SmartHQ™, true built-in design, premium guard seacoast protection, and a premium finish. It also offers electronic cap touch controls, a large LCD auto-dimming display, and a slim room front. This unit has ECO mode, dry mode, and auto mode.

• Features built-in WiFi powered by SmartHQ™
• Offers true built-in design for seamless integration
• Equipped with premium guard seacoast protection

Product Highlights

This GE room air conditioner provides efficient cooling and heating with smart features and a sleek design, ideal for maintaining a comfortable indoor environment.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: AJEQ10DWJ

Technical Specifications

• Accessories: Wall Case RAB46/47/48/26 Required At Additional Cost
• Color Appearance: Soft Gray
• Installation: Wall Mounted
• Cooling BTUH (MAX): 10,000 Btu
• Cooling BTUH (MIN): 9,800 Btu
• Dehumidification: 2.7/2.7 pts/hr
• Heating - Electric - BTUH - AHAM - 1R: 10600/8600
• Air Discharge: Over / Under
• Airflow: 285/245, 275/235 cfm Roomside
• Chassis Type: Slide-In
• Connected Capabilities: Amazon Alexa Google Home
• Control Type: Electronic
• Cord Length: 68"
• Fan Speed Selections: 3 Cooling 3 Fan Only
• Filter Type: Rigid Frame Tilt-Out Washable
• Heating - Electric - Input Watts: 3470/2850
• Louver Style: 6-Way
• Optional Grill: RAG13/RAG13A/RAG14E
• Outdoor Vent / Exhaust: Yes
• Plug Type: Perpendicular/Right Angle LCDI
• Product Type: Built-In
• Refrigerant Type: R32
• Remote Control: Yes
• Room Air Conditioner Features: Smart Fan Switch Remote Control Batteries Included Improved Corrosion Package Rotary Compressor Yes
• Style: Thru-Wall
• Temperature Range: 60->85 F
• Thermostat Type: Electronic Digital
• Unit Type: Heat / Cool Unit
• WiFi Connect: Built-In
• CEER: 9.6/9.6
• Cooling - Rated Cooling Amps AHAM: 4.6/5.1
• Cooling - Watts: 1030/1010
• Heating - Electric - Heater Amps: 15.1/14.0
• Hertz: 60
• Voltage (MAX): 230 V
• Voltage (MIN): 208 V
• Voltage/Hertz/Phase: 230-208/60/1
• Volts/Hertz: 230V-208V/60Hz
• Depth to Louvers: 5 in
• Overall Depth: 21.8125 in
• Overall Depth (Excludes Sleeve): 19.90625 in
• Overall Height: 15.625 in
• Overall Height (Excludes Sleeve): 14.875 in
• Overall Width: 26 in
• Overall Width (Excludes Sleeve): 24.8125 in
• Sleeve Required for Install: Yes
• Fits Sleeve Size (in.): 26
• EER (@208V): NA
• CFMs (@208V): 235 / 275 (L / H)
• Cooling Amps (@208V): 5.1
• Cooling Watts (@208V): 1010
• Electric Heat Strip Size (kW - @208V): 2.5
• Electric Heating BTUs (@208V): 8600
• Electric Heating Amps (@208V): 14.0
• Electric Heating Watts (@208V): 2850
• EER (@230V): NA
• CFMs (@230V): 245 / 285 (L / H)
• Cooling Amps (@230V): 4.6
• Cooling Watts( @230V): 1030
• Electric Heat Strip Size (kW - @230V): 3.1
• Electric Heating BTUs (@230V): 10600
• Electric Heating Amps (@230V): 15.1
• Electric Heating Watts (@230V): 3470
• Vent Location: Top air discharge
• Make-Up Air: No
• Energy Saver Mode: Yes
• Fan Speeds: 3
• Filter Access: Tilt-out
• Connectivity: Built-In WiFi
• 24 Hour ON/OFF Timer: Yes
• Fresh Air Intake: Yes
• Sleep Mode: Yes
• Width (in.): 24.81
• Depth (in.): 19.91
• Height (in.): 14.88
• Max. Wall Thickness (in.): 20
• Wall Cut-Out Width (in.): 26.125
• Wall Cut-Out Height (in.): 15.75
• Weight (lbs.): 80
• Certifications: ADA Compliant, AHAM, CUL, UL, EEV
• Voltage: 208-230V
• Plug Face (NEMA): 6-20
• Circuit Breaker Size (Amps): 20
