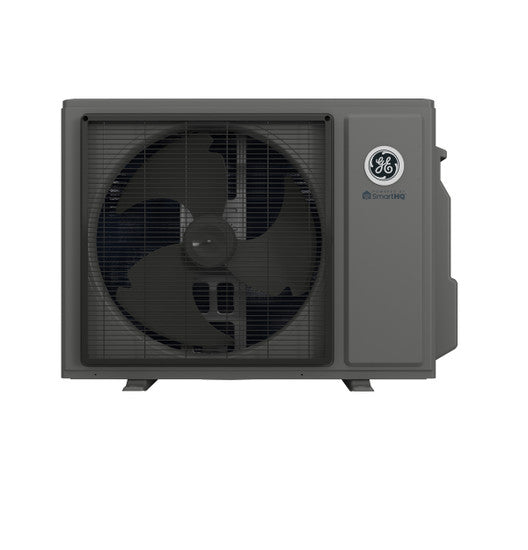

Ge 1G18AD2BEA(O) Altitude Series 18,000 BTU Ductless Mini-Split Outdoor Heat Pump

Product Description

The GE 1G18AD2BEA(O) Altitude Series ductless mini-split outdoor heat pump operates on 208-230V and delivers 18,000 BTU. It features a DC inverter driven rotary compressor and flare connections. Designed for single-zone systems, it uses R454B refrigerant and includes a base pan heater. Compatible with indoor model GS18WB2BEA.

• Features a base pan heater.
• Compatible with indoor model GS18WB2BEA.
• Equipped with a DC Inverter Driven Rotary Compressor.

Product Highlights

This outdoor unit offers cooling from -40°F to 115°F and heating from -15°F to 75°F. It has a SEER2 rating of 20 and an HSPF2 rating of 9.5.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: 1G18AD2BEA(O)

Technical Specifications

• Color Appearance: Gray
• Base Pan Heater: Yes
• Compatible Indoor Models: GS18WB2BEA
• Connections: Flare
• Factory Charge (ounces): 45.9
• HSPF2 Rating: 9.5
• Maximum Fuse Size A: 20
• Maximum Height (Ft/m): 50/15
• Maximum Line Length (Ft/M): 83/25
• Outdoor Noise Level: 58
• Product Type: Single Zone
• Refrigerant Type: R454B
• Rotary Compressor: DC Inverter Driven Rotary
• SEER2: 20
• Series: Altitude
• Style: Outdoor
• System: 18K Altitude
• Temperature Range - Cooling Mode: -40°F-115°F (-40-46℃) with wind baffle or top cover
• Temperature Range - Heating Mode: -15-75°F (-26-24℃)
• Unit Type: Outdoor
• Cooling Rated Capacity BTU/Hr: 17,000
• Minimum Circuit Amp: 15
• Voltage/Hertz/Phase: 208/230/60/1
• Liquid O.D. Refrigerant Line: 1/4"
• Suction O.D. Refrigerant Line: 1/2"
• Part Number: 1G18AD2BEA
• Certificate: cETLus Listed, AHRI Certified
• Cooling Capacity: 17000 BTU/H
• Fan Speeds: 5-Speed
• Maximum Amperage: 20 Amp
• Maximum Voltage: 208V-230V
• Refrigerant: R-454B
• Suction Line: 1/2
