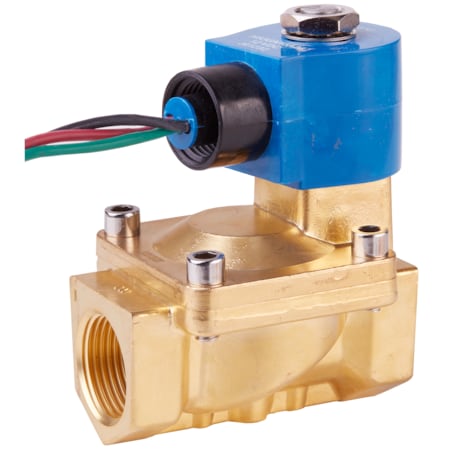

Gc Valves S711GF16N9FG9 1 NPT 2-Way Brass Solenoid Valve 24VDC

Product Description

The Gc Valves S711GF16N9FG9 is a 1 NPT 2-way brass solenoid valve designed for plumbing applications. Operating at 24VDC, this valve is closed and uses a Buna seal material. Suitable for air, gas, water, and light oil, it provides reliable performance with a maximum fluid temperature of 180 degrees Fahrenheit.

• 24VDC operating voltage
• 1 NPT pipe size
• 2-way piloted diaphragm design

Product Highlights

This solenoid valve is ideal for various fluid control applications. It features a brass body and a Buna seal for enhanced durability. The 24VDC voltage ensures efficient operation, while the 1 NPT size makes it easy to integrate into existing systems.

Product Information

Standard Information

• Brand: Gc Valves
• MPN: S711GF16N9FG9
• Valve Type: Solenoid Valve
• Configuration: 2-Way
• Material: Brass
• Seal Material: Buna
• Voltage: 24VDC

Technical Specifications

• Media: Air, Gas, Water, Light Oil
• Watts: 10
• Voltage: 24VDC
• Pipe Size: 1
• NEMA Rating: 4/4X
• Orifice Diameter: 1
• Valve Design: 2-Way Piloted Diaphragm
• Body Material: Brass
• Seal Material: Nitrile/Buna/NBR
• Max. Fluid Temp.: 180 Degrees F
• Coefficient of Volume: 13
• Coil Insulation Class: F
• Electrical Connections: Conduit
• Min. Operating Pressure Differential: 8 psi
• Country of Origin: United States
• Max. Operating Pressure Differential Water: 150 (AC), 100 (DC)
• Max. Operating Pressure Differential Light Oil: 150 (AC), 100 (DC)
• Max. Operating Pressure Differential Air/Inert Gas: 200 (AC), 150 (DC)
