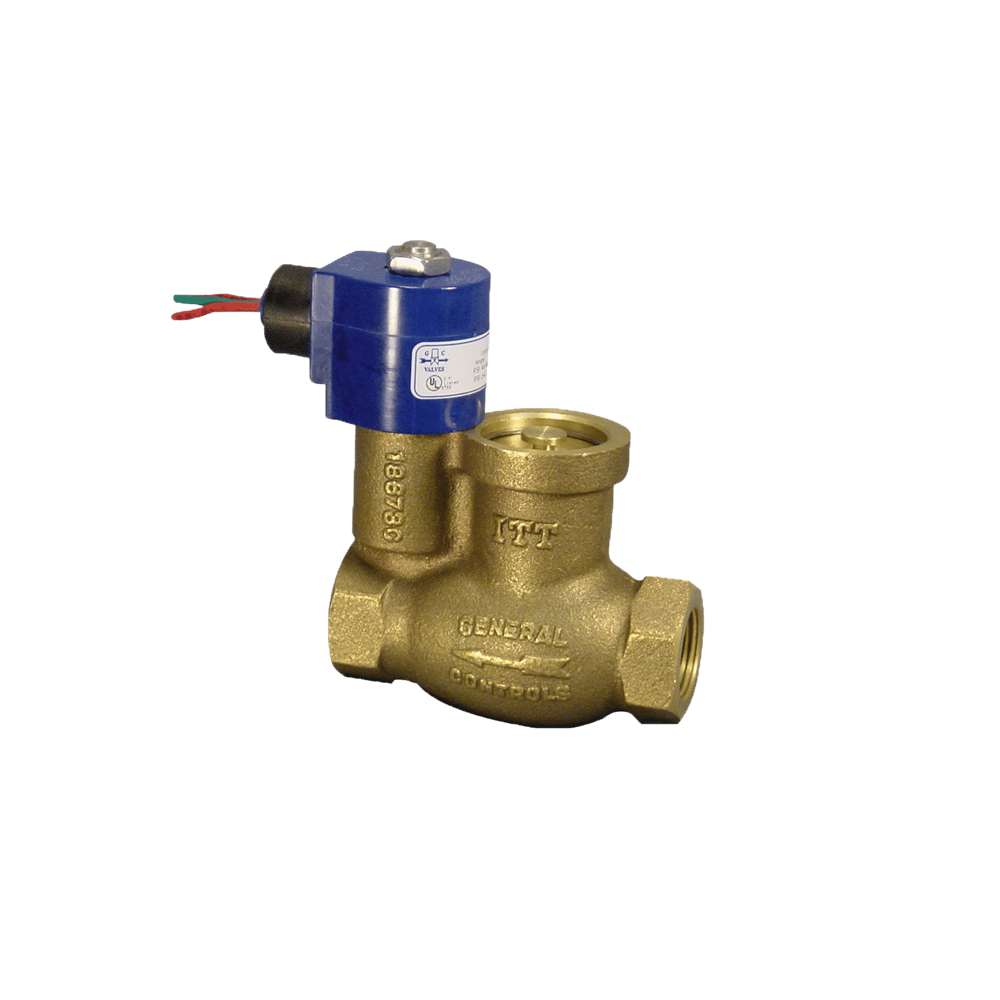

GC Valves S401GF02V5FG7 NC 120 Awo 1 5D 100# G7

Product Description

The GC Valves S401GF02V5FG7 is a normally closed solenoid valve designed for effective fluid control in various applications. This two-way valve is suitable for air, water, and oil, accommodating different environments and pressures.

• Pipe size: one inch
• Housing type: Nema 4X
• Body material: brass

Product Highlights

This valve is engineered for reliability and versatility, often used in HVAC systems and plumbing applications.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S401GF02V5FG7

Technical Specifications

• Mode: Normally Closed
• Type: 2 Way
• Max Air: 100
• Max Water: 100
• Max Oiling: 150
• Orifice Size: 15/16
• Coil Class: Class F
• Item Weight: 4.50 lbs per EA
• Lead Length: 24 inches
• Coil Voltage: 120/60 110/50
• Max Fluid Temperature: 230
• Min Differential: 5 PSI
• Max Ambient Temperature: 125
• Min Ambient Temperature: 32
