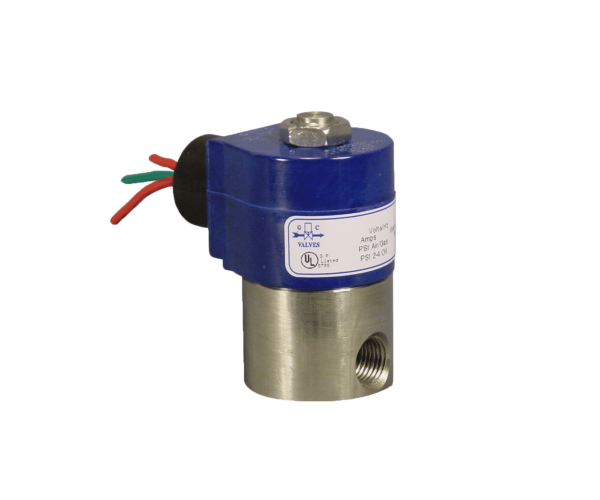

GC Valves S311GH02V2AC9 2-Way Normally Closed Valve

Product Description

The GC Valves S311GH02V2AC9 is a 2-way normally closed valve designed for various media applications. This valve operates effectively with aggressive media, air, water, steam, light oil, and slightly aggressive substances. The body is constructed from durable 303 stainless steel, ensuring high resilience and reliability. It features an FKM seal material for added longevity and performance.

• 2-way normally closed valve function.
• Compatible with aggressive media, air, water, and steam.
• Constructed from durable 303 stainless steel with an FKM seal.

Product Highlights

This valve is ideal for use in a variety of pipes and is suitable for applications requiring a reliable seal with minimal leakage. The input voltage specification is 110V/120V AC, making it versatile for different setups.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S311GH02V2AC9

Technical Specifications

• Valve Series: S31
• Function: 2-Way Normally Closed
• Housing: 1/2 Conduit NEMA 4X
• Coil Class: H
• Input Voltage: 110V/120V AC
• Seal Material: FKM
• Body Material: 303 SS
• Pipe Size: 1/8 NPT
• Orifice: 3/32
• Media Type: Aggressive Media, Air, Neutral Gases, Light Oil, Slightly Aggressive Media, Steam, Water
• Approvals: CE, CSA, UL
• Valve Type: Direct Acting
