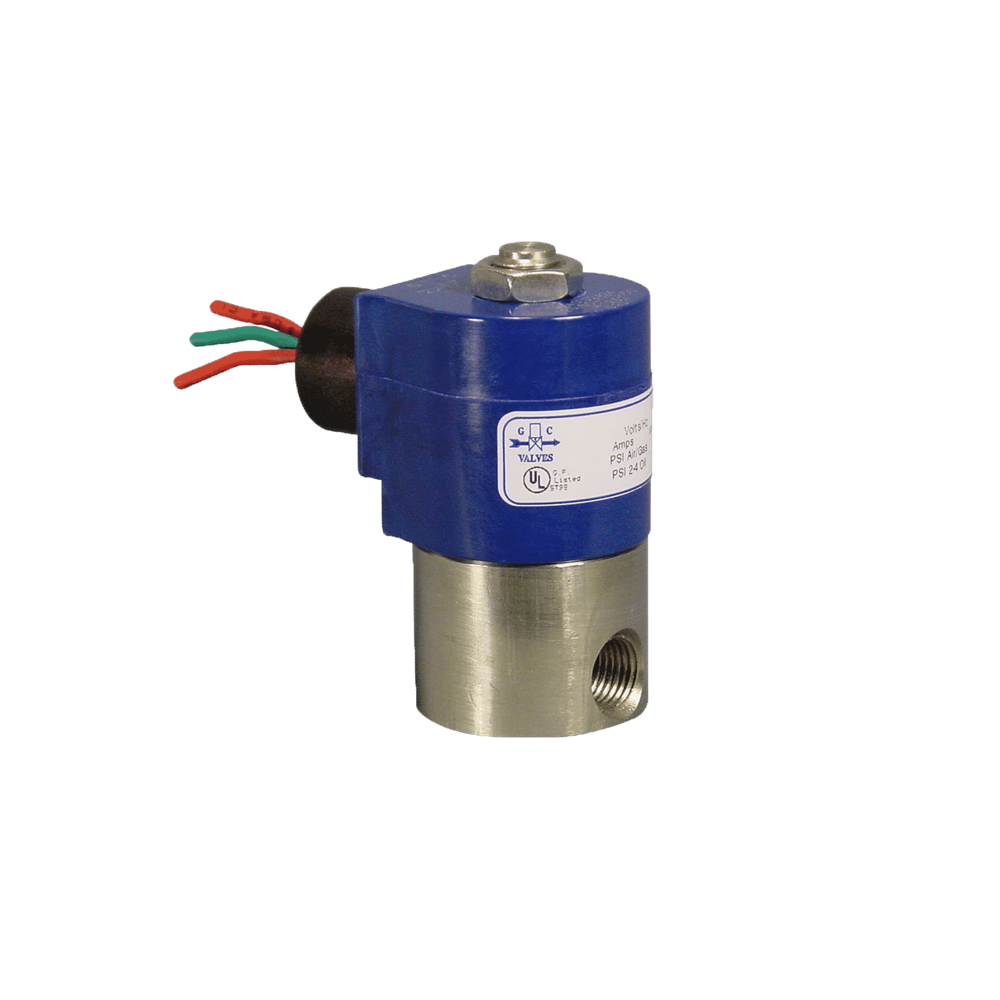

GC Valves S302GF02V3BC9 0.25in NO 120V AWO Nat Gas SS Solenoid

Product Description

The GC Valves S302GF02V3BC9 is a solenoid designed for natural gas applications. It features a quarter inch connection and operates on 120V power. This valve is normally open and serves as a two-way solenoid suitable for air, water, oil, and natural gas. It is made from stainless steel and has a Viton seal to ensure durability and reliability.

• Stainless steel body ensures resistance to corrosion
• Maximum pressure of 150 PSI for various applications
• Minimum differential pressure required is 0 PSI

Product Highlights

This solenoid valve is ideal for controlling the flow of fluids in HVAC, plumbing, and industrial settings. Its robust design and materials provide longevity and dependable operation.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S302GF02V3BC9

Technical Specifications

• Mode: Normally Open
• Type: 2 Way
• Pipe Size: 1/4 inch
• Coil Class: Class F
• Coil Voltage: 120/60V, 110/50V
• Housing Type: Nema 4X
• Orifice Size: 3/32 inch
• Body Material: Stainless Steel
• Seat Material: Viton
• Max Fluid Temperature: 180 degrees Fahrenheit
• Item Weight: 1.25 lbs per EA
