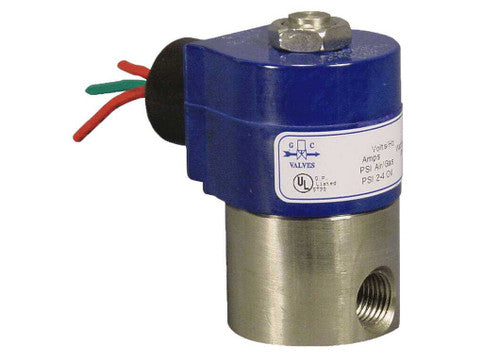

Gc Valves S301gh02v3be7 Solenoid Valve 1/4 inches NPT

Product Description

The GC Valves S301GH02V3BE7 is a solenoid valve with a stainless steel body and a 1/4" NPT connection. It features a 2-way direct acting design with a Viton seal and a 1/4" orifice. This valve is normally closed and operates at 120 VAC, with a NEMA 4/4X rating.

• Stainless steel body for durability
• Viton seal for reliable performance
• NEMA 4/4X rating for environmental protection

Product Highlights

Solenoid valve with stainless steel body, Viton seal, and NEMA 4/4X rating.

Product Information

Standard Information

• Brand: GC VALVES
• Manufacturer Part Number: S301GH02V3BE7
• Country of Origin: United States

Technical Specifications

• Item: Solenoid Valve
• Old Part Number: S301GF02V3BE7
• Body Material: Stainless Steel
• Body Style: 2-Way
• Action: Direct Acting
• Connection: NPT
• Connection Size: 1/4"
• Orifice Size: 1/4"
• Orifice Material: Stainless Steel
• Seal Material: Viton
• NEMA Rating: NEMA 4/4X
• Approvals: UL Safety, UL Listed, UL Recognized, CSA Approved
