Product Description

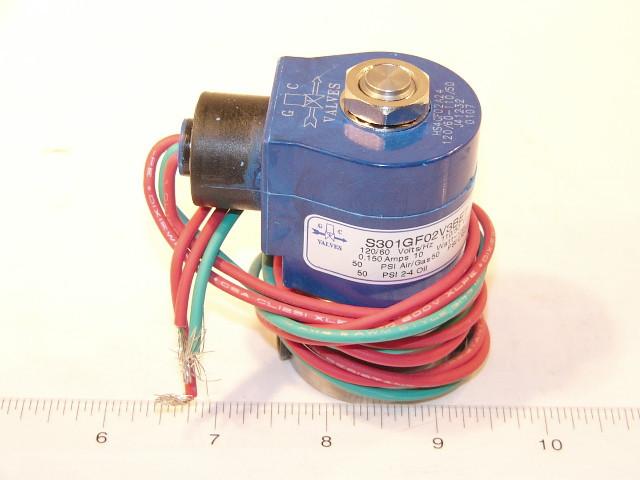

The GC Valves S301GF02V3BE7 is a robust solenoid valve designed for specialized industrial applications managing air, water, and light oil. Precision-engineered by GC Valves, this valve operates on 120 volts in normally closed (NC) configurations, ensuring reliable control in critical systems.
- Direct acting valve mechanism for swift response
- Constructed with durable stainless steel and Viton seal materials
- Designed to handle pressures up to 50 psi for varied application needs
Product Highlights
Equipped with a 1/4-inch NPT pipe size and a direct acting two-way flow, this valve excels in environments requiring precise fluid control. The inclusion of a NEMA 4/4X rating underlines its suitability for severe conditions, ensuring long-term reliability.
Technical Specifications
-
Operating Voltage: 120/60, 110/50
-
Body Material: Stainless Steel
-
Seal Material: Viton/FKM
-
Max Fluid Temperature: 230 Degrees F
-
Orifice Diameter: 1/4 inch
-
Electrical Connections: Conduit
-
Max. Operational Pressure Differential: 50 psi (water/oil), 20 psi (air)
