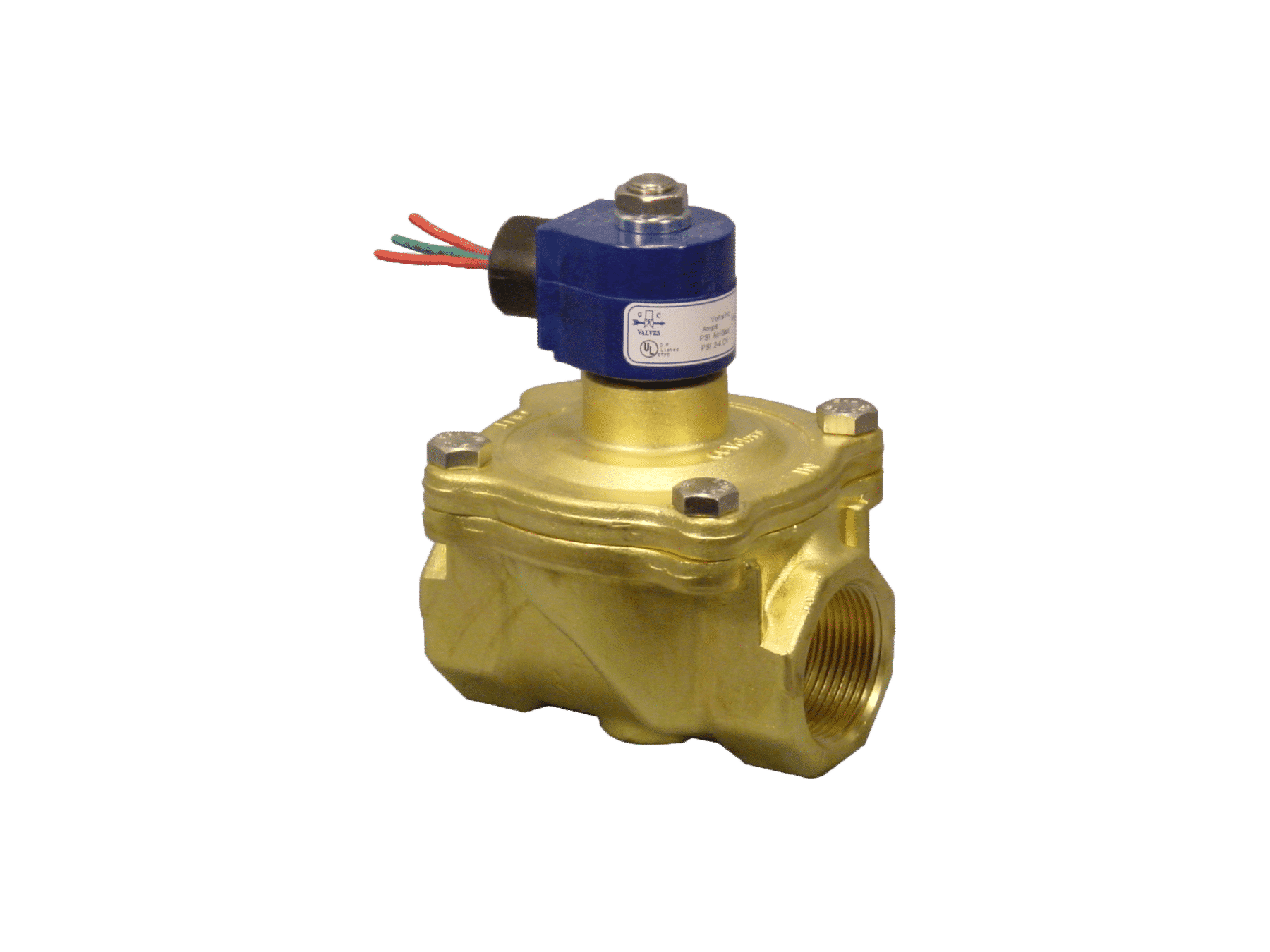

Gc Valves S212GH02N5GJ2 Diaphragm Valve 110/120V AC (1-1/4 inches NPT)

Product Description

Gc Valves S212GH02N5GJ2 is a S21 series diaphragm valve configured as a 2-way normally open valve with 110/120V AC operation and an H-class coil. The valve has a brass body, nitrile seals, and a 1-1/4" NPT pipe size with a 1-1/4" orifice. It is housed in a 1/2" conduit NEMA 4X enclosure and is approved to CE, CSA, and UL standards. Suitable media include air, neutral gases, water, steam, light oil, and slightly aggressive media.

• 2-way normally open diaphragm valve, S21 series, 1-1/4" NPT pipe and orifice
• 110/120V AC operation with H-class coil and nitrile seal material
• Brass body in 1/2" conduit NEMA 4X housing; approvals: CE, CSA, UL

Product Highlights

S21 diaphragm valve, 110/120V AC, 1-1/4" NPT, nitrile seals, CE/CSA/UL

Product Information

Standard Information

• Brand: GC VALVES
• Manufacturer Part Number: S212GH02N5GJ2

Technical Specifications

• Brand: Gc Valves
• Manufacturer Part Number: S212GH02N5GJ2
• Valve Series: S21
• Valve Type: Diaphragm
• Function: 2-Way Normally Open
• Input Voltage: 110/120V AC
• Coil Class: H
• Body Material: Brass
• Seal Material: Nitrile (Buna-N)
• Pipe Size: 1-1/4" NPT
• Orifice Size: 1-1/4" (nominal)
• Enclosure Rating: NEMA 4X
• Conduit Size: 1/2" conduit
• Media Type: Air; Neutral gases; Water; Steam; Light oil (see note on compatibility with nitrile seals)
• Approvals: CE, CSA, UL
• Category: S21
