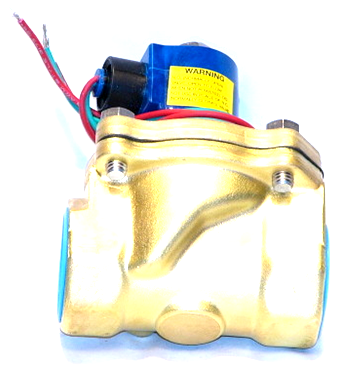

GC Valves S212GF02N5HJ2 Solenoid Valve 120V AC 1-1/2 inch NPT Brass

Product Description

The GC Valves S212GF02N5HJ2 is a high-performance solenoid valve designed for air and water applications. It features a normally open (NO) configuration, suitable for systems requiring continuous flow without power.

• Brass body construction ensures durability and corrosion resistance.
• Equipped with a Class F coil, rated for 120V AC.
• Nitrile seal provides excellent resistance to oils and solvents with a 1 1/4 inch orifice for effective flow control.

Product Highlights

This valve is compatible with air pressures between 5 to 200 PSI and water pressures from 5 to 140 PSI, making it versatile for various industrial installations.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S212GF02N5HJ2

Technical Specifications

• Type: Solenoid Valve
• Material: Brass
• Seal Material: Nitrile
• Orifice Size: 1.25 inches
• Coil Class: F
• Voltage: 120V AC
• Connection: 1 1/2 inch NPT
• Pressure Range (Air): 5-200 PSI
• Pressure Range (Water): 5-140 PSI
