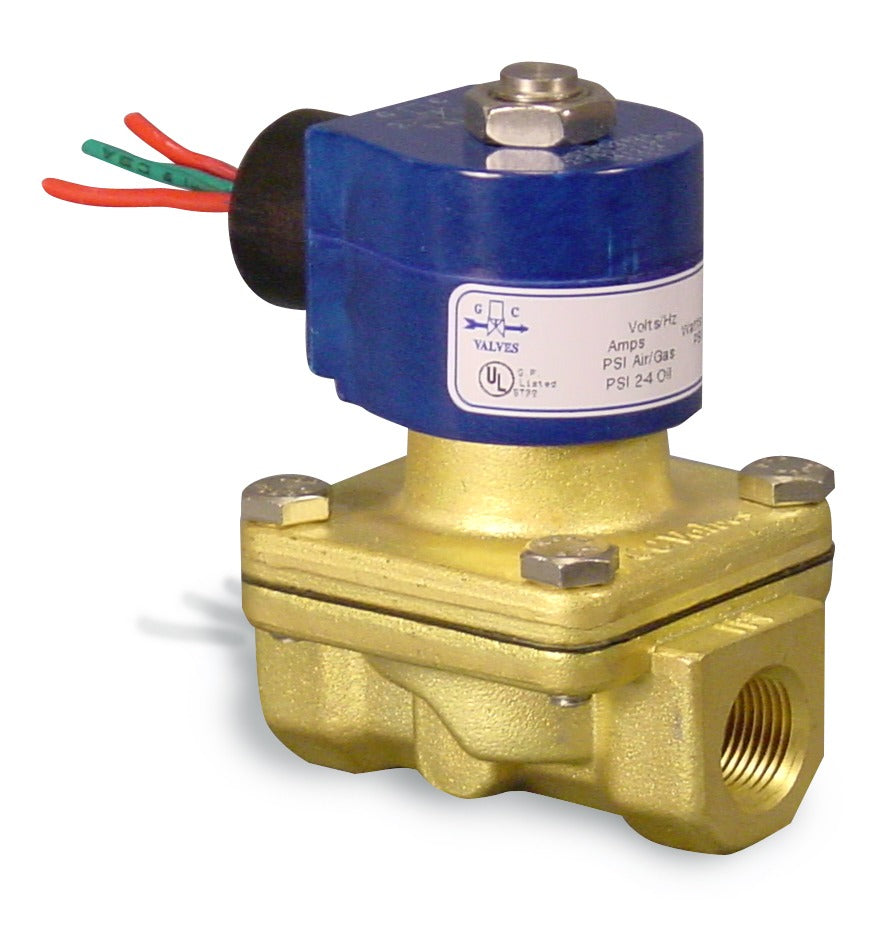

Gc Valves S211GH24N5FG9 Solenoid valve 24V AC (1 inch)

Product Description

The GC Valves S211GH24N5FG9 is a 1-inch normally closed solenoid valve with a brass body and a 24V AC coil (50/60Hz). It is rated for 5–150 PSI and uses a 1" NPT connection for integration into water, air, and light oil systems. The valve is intended for HVACR, refrigeration circuits, control panels, and automated process lines where electromagnetic shutoff and flow control are required. Installation uses standard piping connections and 24V control systems.

• 1" NPT connection with normally closed operation for fail-safe shutoff
• Brass body construction with 5–150 PSI pressure range
• 24V AC coil (50/60Hz) compatible with water, air, and light oil systems

Product Highlights

1-inch normally closed solenoid valve, brass body, 24V AC coil, 5–150 PSI, 1" NPT connection

Product Information

Standard Information

• Brand: GC VALVES
• Manufacturer Part Number: S211GH24N5FG9

Technical Specifications

• Brand: GC Valves
• Manufacturer Part Number: S211GH24N5FG9
• Valve Size: 1 inch
• Connection: 1" NPT
• Operation: Normally closed
• Body Material: Brass
• Coil Voltage: 24V AC (50/60Hz)
• Pressure Range: 5-150 PSI
• Suitable Media: Water, air, light oil
• Typical Applications: HVACR, refrigeration circuits, control panels, automated process lines
• Manufacturer: GC Valves
• Condition: New
• Category: Part
