GC Valves S211GH02T4CG1 NC 120 Stm 3/8 1D 100# G1

Product Description

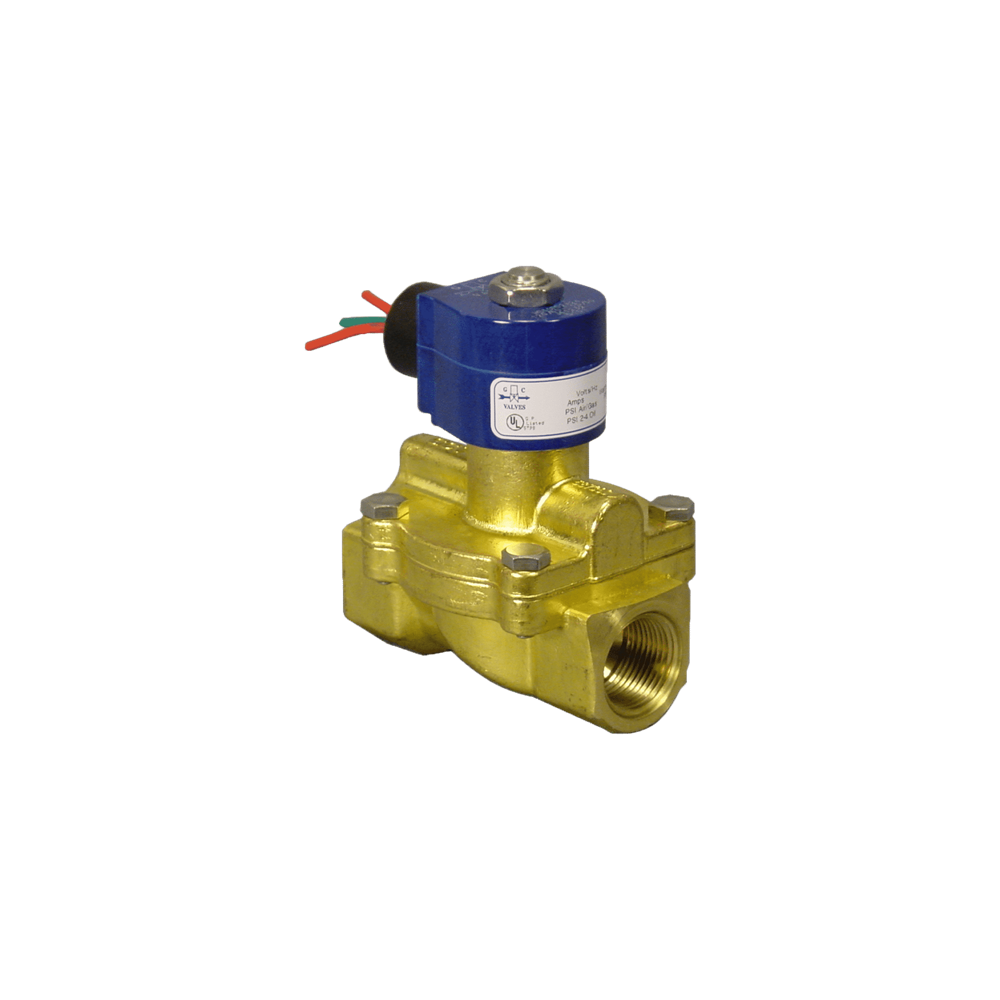

GC Valves presents the S211GH02T4CG1, a normally closed solenoid valve. This valve is designed for reliable operation in various fluid control applications. It features a two-way design, making it suitable for a range of industrial tasks. The unit is built to manage fluids at temperatures up to three hundred sixty-six degrees Fahrenheit efficiently.

• Normally closed operation
• Pipe size of three eighths inches
• Constructed with brass body and Teflon seat

Product Highlights

This solenoid valve is ideal for HVAC systems, plumbing, and other fluid control applications where durability and reliability are critical.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S211GH02T4CG1

Technical Specifications

• Mode: Normally Closed
• Type: 2 Way
• Series: S21
• Pipe Size: 3/8 inches
• Coil Class: Class H
• Coil Number: HS3GN02A24
• Coil Voltage: 120/60 110/50
• Housing Type: Nema 4X
• Orifice Size: 1/2 inches
• Shading Ring: Copper
• Body Material: Brass
• Seat Material: Teflon
• Rebuild Kit Number: KS211AF02T4CG1
• Max Fluid Temperature: 366 degrees Fahrenheit
• Item Weight: 2.75 lbs per EA
