GC Valves S211GH02N5FG9 valve 1 inch 110V/120V AC

Product Description

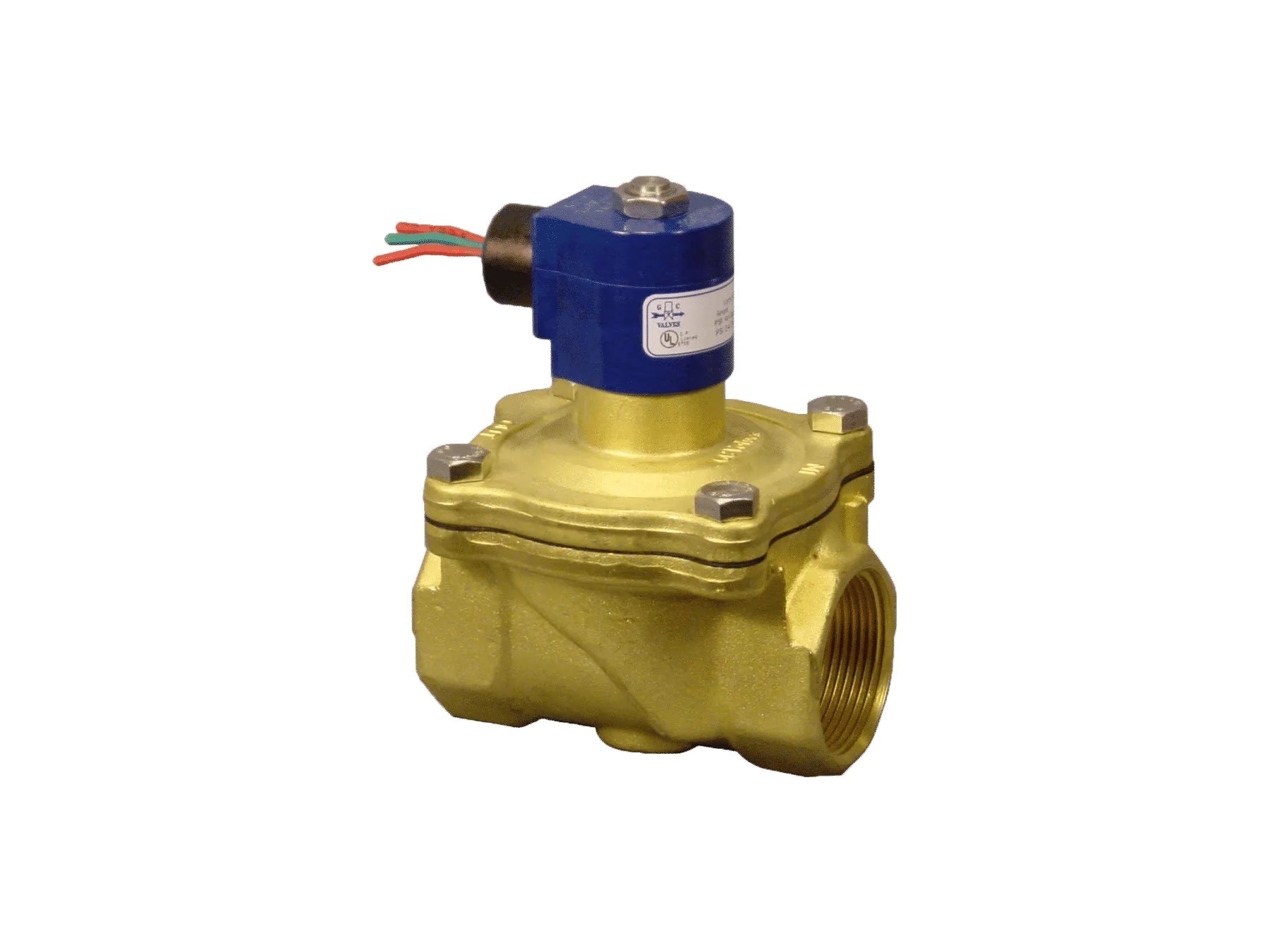

The GC Valves S211GH02N5FG9 is a reliable 2-way normally closed valve designed for various applications. This valve operates on 110V/120V AC and features a robust NEMA 4X housing. It includes a nitrile seal and a brass body, making it suitable for aggressive media, such as air, neutral gases, light oil, steam, and water.

• 2-way normally closed valve
• Compatible with aggressive media and water
• 1 inch NPT pipe size with 1 inch orifice

Product Highlights

This diaphragm valve is engineered for durability and performance across different media types, ensuring reliable operation in demanding environments.

Product Information

Standard Information

• Valve Series: S21
• Function: 2-Way Normally Closed

Technical Specifications

• Housing: 1/2 inch Conduit NEMA 4X
• Coil Class: H
• Voltage: 110V/120V AC
• Seal Material: Nitrile
• Body Material: Brass
• Pipe Size: 1 inch NPT
• Orifice: 1 inch
• Media Type: Aggressive Media, Air & Neutral Gases, Light Oil, Slightly Aggressive Media, Steam, Water
• Approvals: CE, CSA, UL
• Valve Type: Diaphragm
