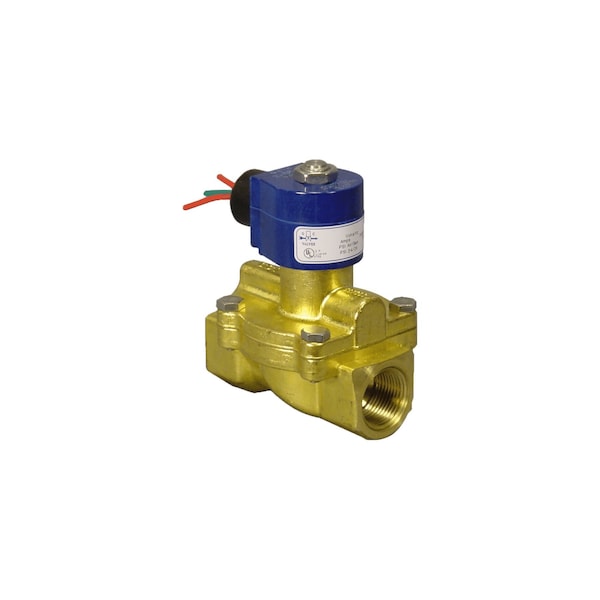

GC VALVES S211GH02K4CG1 3/8in 120v Solenoid Valve

Product Description

The GC VALVES S211GH02K4CG1 is a solenoid valve designed for use in air, water, and oil systems. It features a standard pipe size of three-eighths inches and operates at a voltage of one hundred twenty volts. This two-way valve is normally closed, ensuring that fluid flow is controlled effectively. The valve's body is made of brass and its seat is crafted from Teflon, making it suitable for industrial and commercial uses that require accurate fluid regulation.

• Normally closed, two-way valve.
• Pipe size of three-eighths inches with a half-inch orifice size.
• Brass body with Teflon seat material.

Product Highlights

Ideal for various applications requiring precise fluid control in high-temperature environments.

Product Information

Standard Information

• Mode: Normally Closed
• Type: 2 Way

Technical Specifications

• Series: S21
• Pipe Size: 3/8 inches
• Coil Class: Class H
• Coil Voltage: 120/60 110/50
• Housing Type: Nema 4X
• Orifice Size: 1/2 inches
• Shading Ring: Silver
• Body Material: Brass
• Seat Material: Teflon
• Max Fluid Temperature: 366 degrees Fahrenheit
