GC Valves S211GF24K4DG1 NC 24 Awo .5 1D 250# G1

Product Description

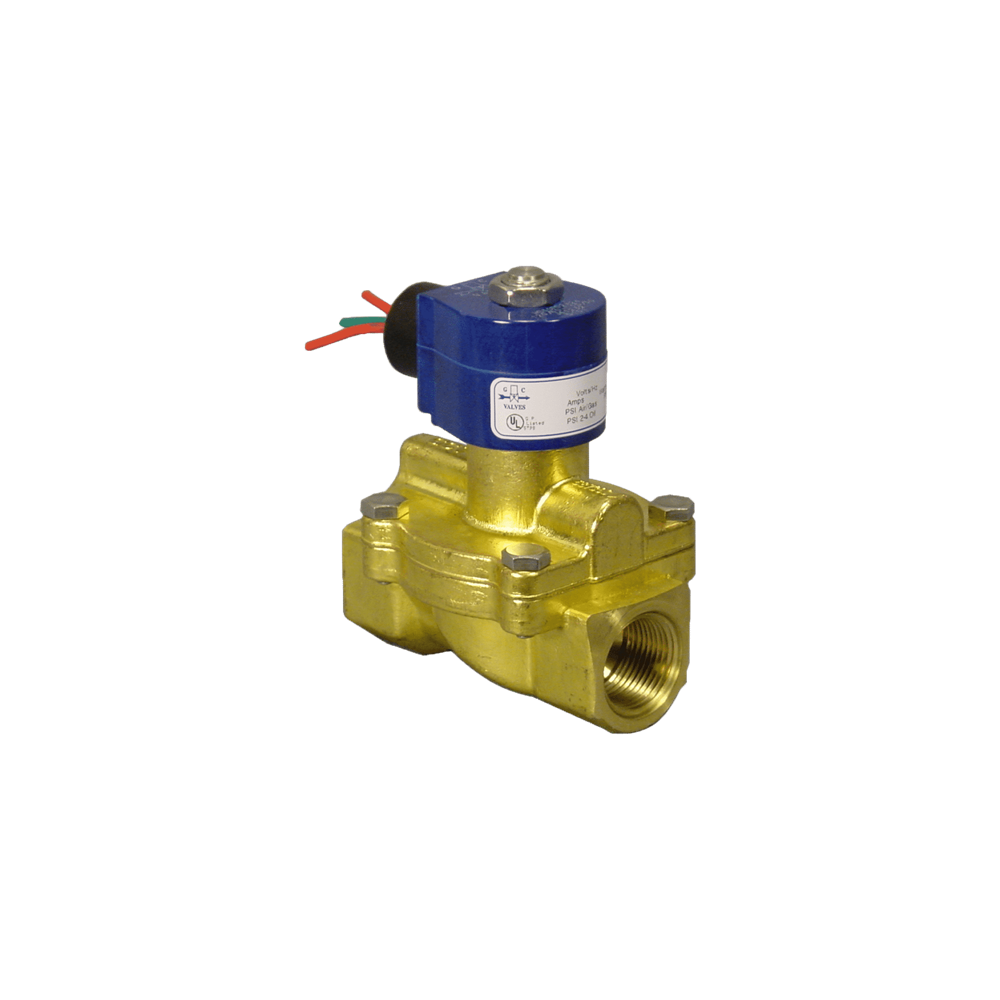

The GC Valves S211GF24K4DG1 is a normally closed solenoid valve designed for fluid control. This valve features a two-way operation and is made from durable brass, making it suitable for various applications. With a half-inch pipe size, it is easy to install in most plumbing and HVAC setups.

• Max rated pressure: 250 PSI for air, water, and light oil.
• Coil voltage: Universal voltage options available, including twenty-four volts AC.
• Compact design with minimal differential pressure requirements.

Product Highlights

This valve operates with a lead length of twenty-four inches and includes a silver shading ring. The Nema 4X housing ensures durability in multiple environments.

Product Information

Standard Information

• Brand: GC Valves
• Type: Solenoid Valve

Technical Specifications

• Mode: Normally Closed
• Pipe Size: 1/2 inches
• Series: S21
• Item Weight: 2.50 lbs per each
• Max (Air): 250 PSI
• Max (Water): 250 PSI
• Max (Lt Oil): 250 PSI
• Coil Voltage: 24/60 24/50
• Body Material: Brass
• Seat Material: Teflon
• Orifice Size: 1/2 inches
• Mounting Direction: +/- 45 degrees from vertical
• Inrush Current (VA): 36
• Holding Current (VA): 13
• Max Fluid Temperature: 366 degrees Fahrenheit
• Min Differential (PSI): 1
• Max Ambient Temperature: 125 degrees Fahrenheit
• Min Ambient Temperature: 32 degrees Fahrenheit
