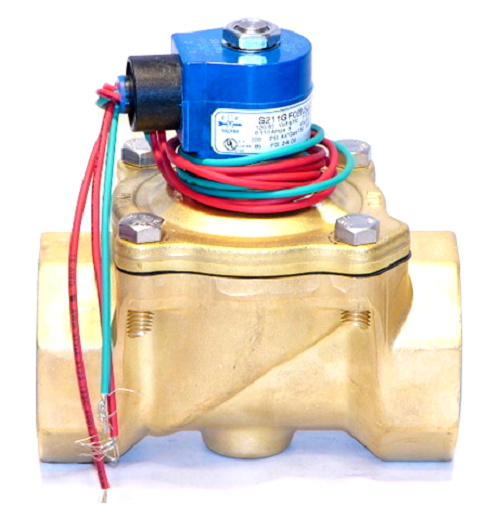

GC Valves S211GF02N5JJ2 Solenoid Valve 120V 2 Inch NC for Air and Water

Product Description

The GC Valves model S211GF02N5JJ2 is a 2-inch normally closed solenoid valve with a robust brass body and Nitrile seals. Ideal for regulating fluid flow in HVAC and hydronic applications, this unit operates on 120Vac power and is constructed to handle pressure ranges between 5-200 pounds for air and 5-150 pounds for water.

• Brass body enhances durability and resistance to corrosion.
• Nitrile seal material offers excellent resistance to oils and solvents.
• Class F coil rated for high-temperature operations up to 180 degrees F.

Product Highlights

Designed for commercial and industrial setups, this solenoid valve supports both air and water systems, achieving precise control and reliability. With a 1 1/4 inch orifice, it ensures adequate flow rates to meet system demands.

Product Information

Standard Information

• Manufacturer: GC Valves
• MPN: S211GF02N5JJ2

Technical Specifications

• Brand: GC Valves
• Body Material: Brass
• Seal Material: Nitrile
• Maximum Operating Pressure: Air: 200 psi, Water: 150 psi
• Electrical Rating: 120V AC
• Pipe Size: 2 inches
