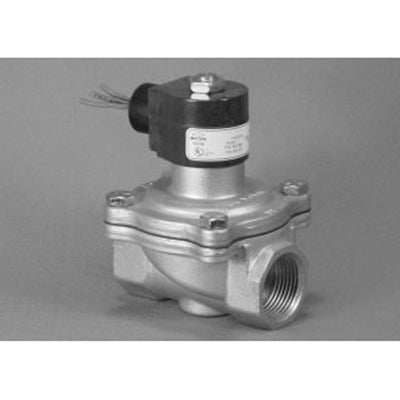

GC Valves S211GF02C5FG9 S21 Brass 2-Way Pilot Operated General Purpose Solenoid Valve 1 in NPT 110 VAC

Product Description

The GC Valves S211GF02C5FG9 is a 2-way pilot-operated general-purpose solenoid valve. It is designed for applications requiring reliable control of air, gas, and water. The valve features a one-inch NPT connection and operates at 110 VAC. This solenoid valve is suitable for various industries, including plumbing, HVAC, and general manufacturing.

• Encapsulated water-proof conduit housing
• 24 inch lead length
• UL listed, CSA certified

Product Highlights

This solenoid valve provides a durable solution for fluid control. It supports a wide range of operating conditions, making it versatile for multiple installations.

Product Information

Standard Information

• Brand: GC Valves
• Manufacturer: GC Valves

Technical Specifications

• Coil Class: Class F
• Configuration: Normally Closed
• Connection Size: 1 inch
• Connection Type: NPT
• Dimension: 3.7 inches L x 3.22 inches W
• Flow Coefficient: 13 Cv
• Frequency Rating: 50 Hz
• Item Name: Solenoid Valve
• Material: Brass
• Orifice Size: 1 inch
• Power Rating: 8 W AC, 9 W DC
• Pressure Rating: Air/Gas: 200 psi AC, 150 psi DC; Water: 150 psi AC, 150 psi DC
• Seal Material: EPR
• Series: S21
• Temperature Rating: 32 to 125 degrees Fahrenheit
• Type: 2-Way, Pilot-Operated, General Purpose
• Voltage Rating: 110 VAC
