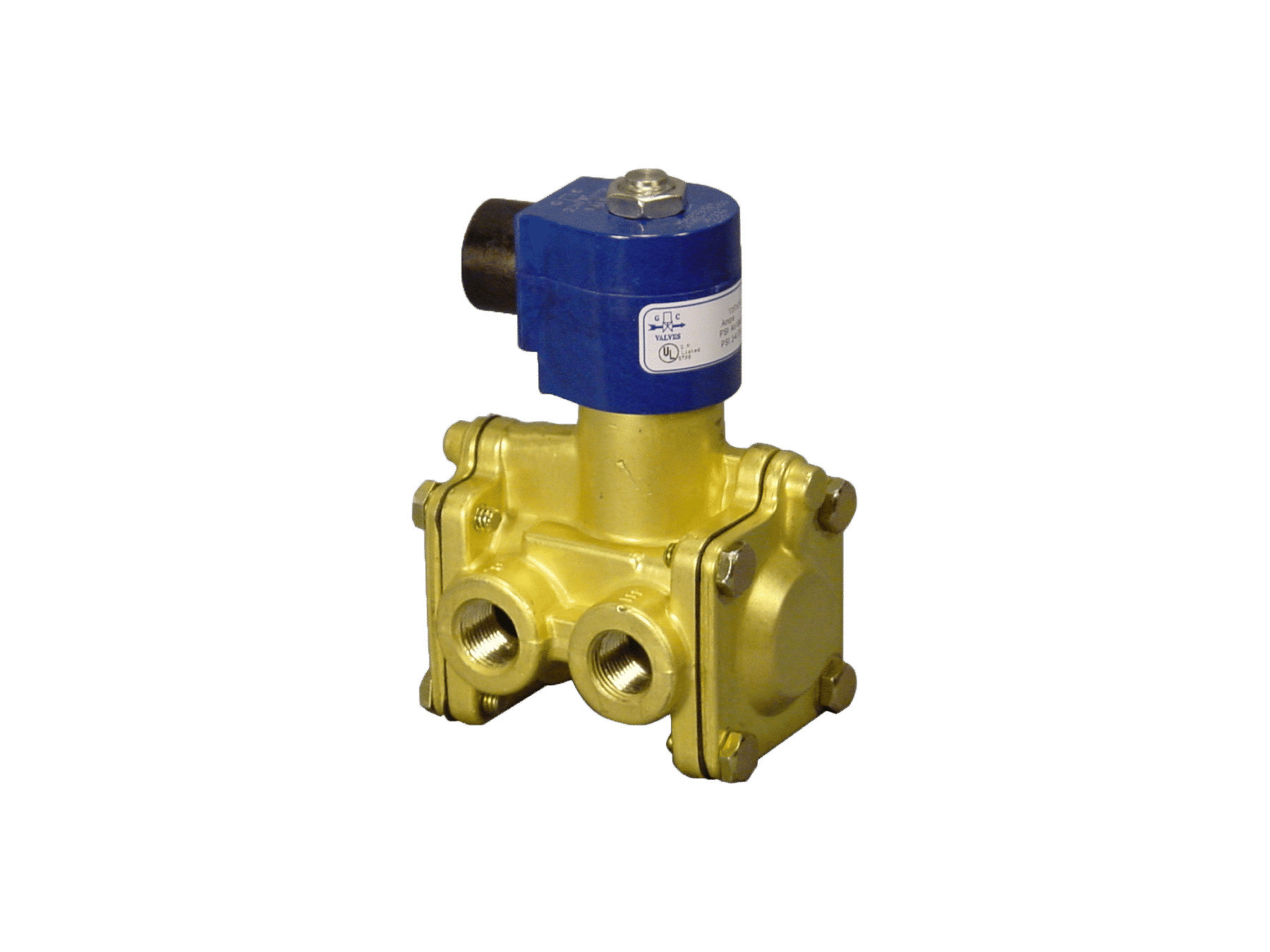

Gc Valves S203GH02N5DG4 S20 Series 3-Way Diaphragm Valve 110V/120V AC (1/2 inches NPT)

Product Description

GC Valves S203GH02N5DG4 is an S20 series 3-way normally closed diaphragm valve rated for 110V/120V AC. It has a brass body, nitrile seal, a 5/8" orifice and a 1/2" NPT connection, with a 1/2" conduit NEMA 4X housing and Class H coil. The valve is suitable for air, neutral gases, light oil, steam, water and some aggressive media, and carries CE, CSA and UL approvals; Cv is 4.4 and pressure range 7-150#.

• Three-way normally closed diaphragm valve with brass body and nitrile seal
• 110V/120V AC coil, Class H; 1/2" conduit NEMA 4X housing; 5/8" orifice
• Flow coefficient Cv 4.4; pressure rating 7-150#; suitable for air, water, steam and selected aggressive media

Product Highlights

S20 series 3-way NC diaphragm valve, 110V/120V AC, 1/2" NPT, 5/8" orifice, Cv 4.4, CE CSA UL

Product Information

Standard Information

• Brand: GC VALVES
• Manufacturer Part Number: S203GH02N5DG4
