Description

Product Description

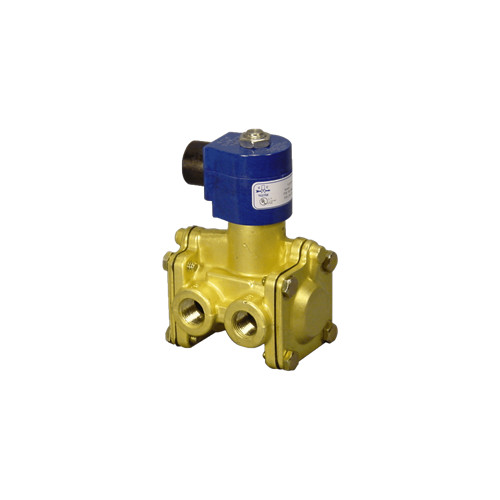

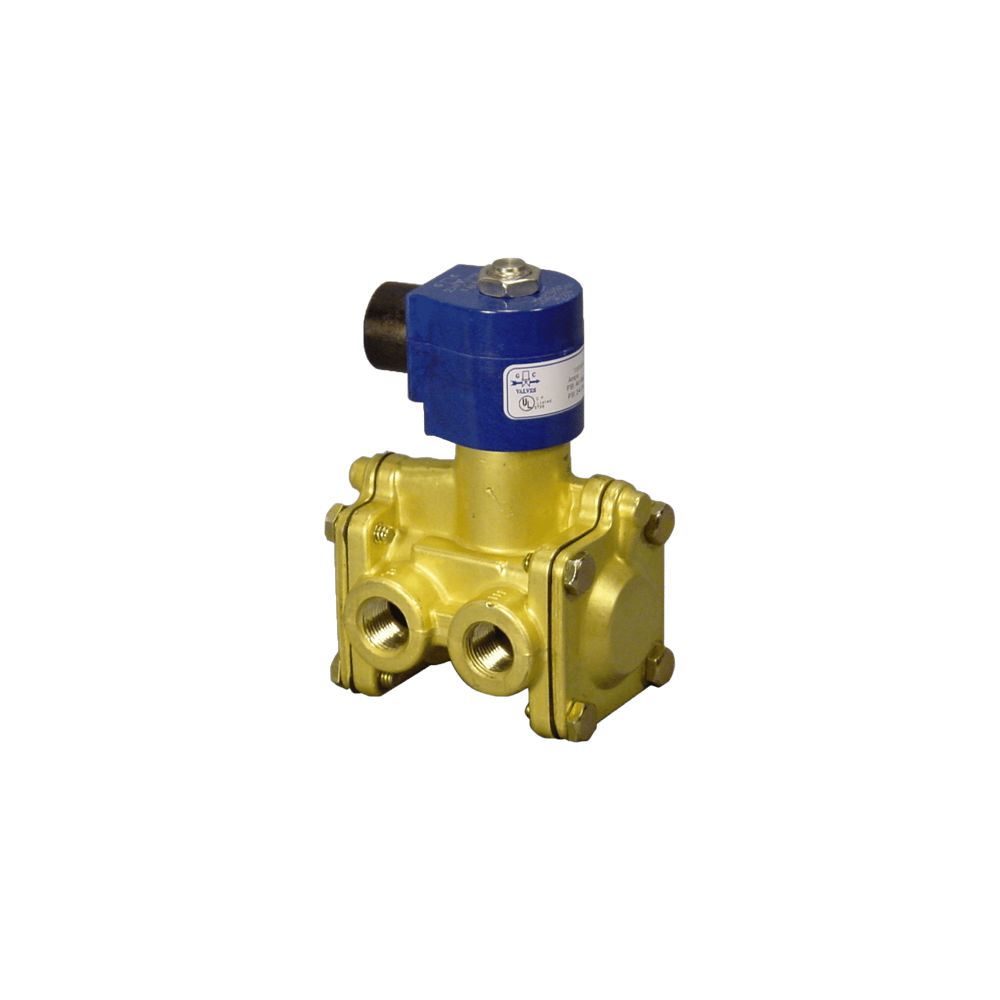

The GC Valves S203GF02N5DG4 is a 1/2 inch three-way solenoid valve designed for efficiency in controlling fluid flow. This valve operates at a voltage of 120 volts and a pressure rating of 150 psi. It is suitable for various applications in HVAC, plumbing, and industrial setups.

  • Mode: Normally Closed
  • Pipe Size: 1/2 inch
  • Item Weight: 3.75 lbs

Product Highlights

This valve is equipped with a brass body and Buna N seat material, ensuring durability and reliability. It features a Nema 4X housing type for protection against dust and moisture, making it ideal for challenging environments.

Product Information

Standard Information

  • Brand: GC Valves
  • Coil Class: Class F

Technical Specifications

  • Series: S20
  • Coil Voltage: 120/60 110/50
  • Orifice Size: 5/8 inch
  • Shading Ring: Silver
  • Max Fluid Temperature: 180 degrees Fahrenheit
  • Min Differential (PSI): 0
