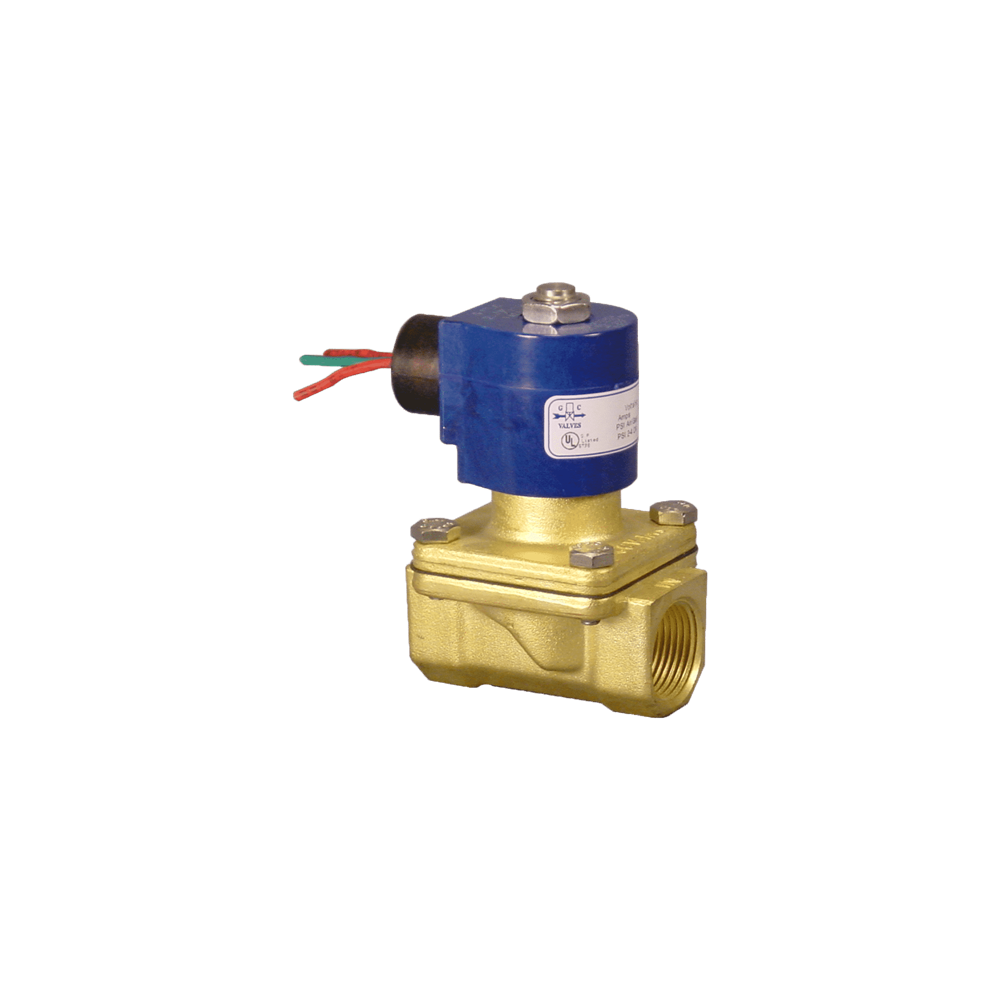

GC Valves S202GF02N5CG4 No 120 Awo 3/8 2D 200# G4

Product Description

The GC Valves S202GF02N5CG4 is a solenoid valve designed for efficient fluid control. It operates on a standard electrical supply and is suitable for various applications.

• Two-way valve function for effective flow regulation
• Rated for a maximum fluid temperature of one hundred eighty degrees
• Constructed from durable brass with Buna N seat material

Product Highlights

This valve is ideal for HVAC applications and other environments where reliable fluid management is crucial.

Product Information

Standard Information

• Brand: GC Valves
• Product SKU: S202GF02N5CG4

Technical Specifications

• Mode: Normally Open
• Type: 2 Way
• Pipe Size: 3/8 inches
• Coil Class: Class F
• Coil Voltage: 120/60 110/50
• Orifice Size: 5/8 inches
• Shading Ring: Silver
• Body Material: Brass
• Seat Material: Buna N
• Max Fluid Temperature: 180 degrees
• Min Differential (PSI): 0
• Item Weight: 2.25 lbs per EA
• Rebuild Kit Number: KS202AF02N5CG4
• Coil Number: HS4GN02A24
• Housing Type: Nema 4X
