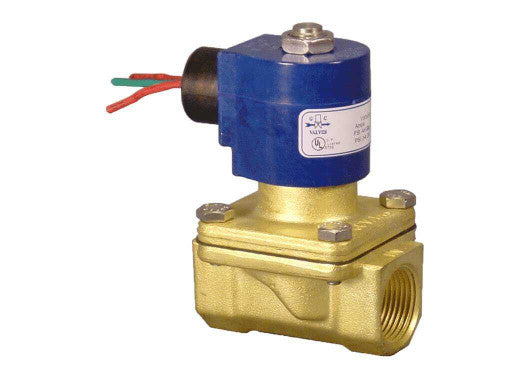

Gc Valves S201GH24N5EG5 Solenoid Valve 24 VAC (3/4 inches NPT) S201GF24N5EG5

Product Description

GC Valves S201GH24N5EG5 is a direct-acting, normally closed 2-way solenoid valve with a 3/4" NPT brass body and a 3/4" brass orifice, designed for 24 VAC coil operation. The valve uses a nitrile (Buna-N) seal and is NEMA 4/4X rated for environmental protection. It carries UL Listed, UL Recognized, and CSA approvals and is intended for industrial fluid control applications.

• Direct-acting, normally closed 2-way design with 3/4" NPT connection and 3/4" brass orifice
• 24 VAC coil operation compatible with 50-60 Hz supply; nitrile (Buna-N) seal
• Brass body, NEMA 4/4X enclosure rating, UL Listed/Recognized and CSA Approved

Product Highlights

Direct-acting 2-way brass solenoid valve, 3/4" NPT, 24 VAC, nitrile seal, NEMA 4/4X, UL/CSA approvals

Product Information

Standard Information

• Brand: GC VALVES
• Manufacturer Part Number: S201GH24N5EG5
• Country of Origin: United States

Technical Specifications

• Brand: GC Valves
• MPN: S201GH24N5EG5
• Item: Solenoid Valve
• Replacement MPN: S201GF24N5EG5
• Body Material: Brass
• Body Style: 2-Way
• Action: Direct acting, normally closed (NC)
• Connection Type: NPT
• Connection Size: 0.75 in (3/4")
• Orifice Size: 0.75 in (3/4")
• Orifice Material: Brass
• Seal Material: Nitrile (Buna-N)
• NEMA Rating: NEMA 4 / 4X
• Coil Voltage: 24 VAC
• Frequency: 50-60 Hz
• Approvals: UL Listed; UL Recognized; CSA Approved
• Country of Origin: Made in the United States
• Pressure Range: 0-140 psi
• Condition: New
