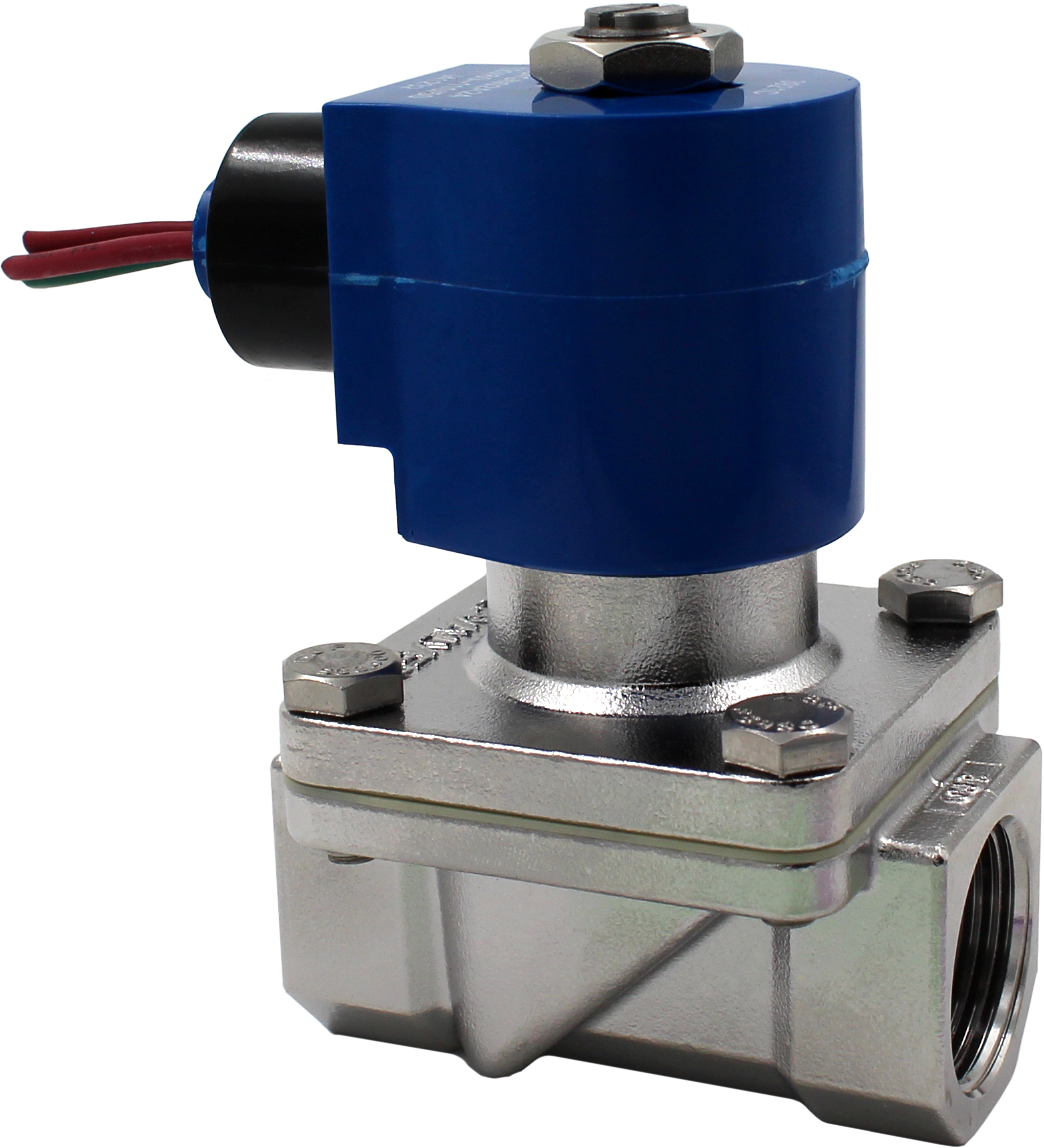

GC Valves S201GH02E7EG5 3/4 in 120v Solenoid Valve

Product Description

The GC Valves S201GH02E7EG5 is a 3/4 inch solenoid valve designed to operate on 120 volt power. It features a normally closed design and is suitable for various fluid control applications.

• Orifice size of 3/4 inches
• Constructed with stainless steel body material
• Compatible with EPR seat for reliability

Product Highlights

This valve is ideal for HVAC, plumbing, and industrial applications where control of fluid flow is required.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S201GH02E7EG5

Technical Specifications

• Mode: Normally Closed
• Type: 2 Way
• Series: S20
• Pipe Size: 3/4 inches
• Coil Class: Class H
• Coil Number: HS4GN02A24
• Coil Voltage: 120/60 110/50
• Housing Type: Nema 4X
• Orifice Size: 3/4 inches
• Shading Ring: Silver
• Body Material: Stainless Steel
• Seat Material: EPR
• Rebuild Kit Number: KS201AF02E7EG5
• Max Fluid Temperature: 295 degrees Fahrenheit
• Min Differential (PSI): 0
