GC Valves S201GH01C5FG9 NC 24 Stm 1 2D 50# G9

Product Description

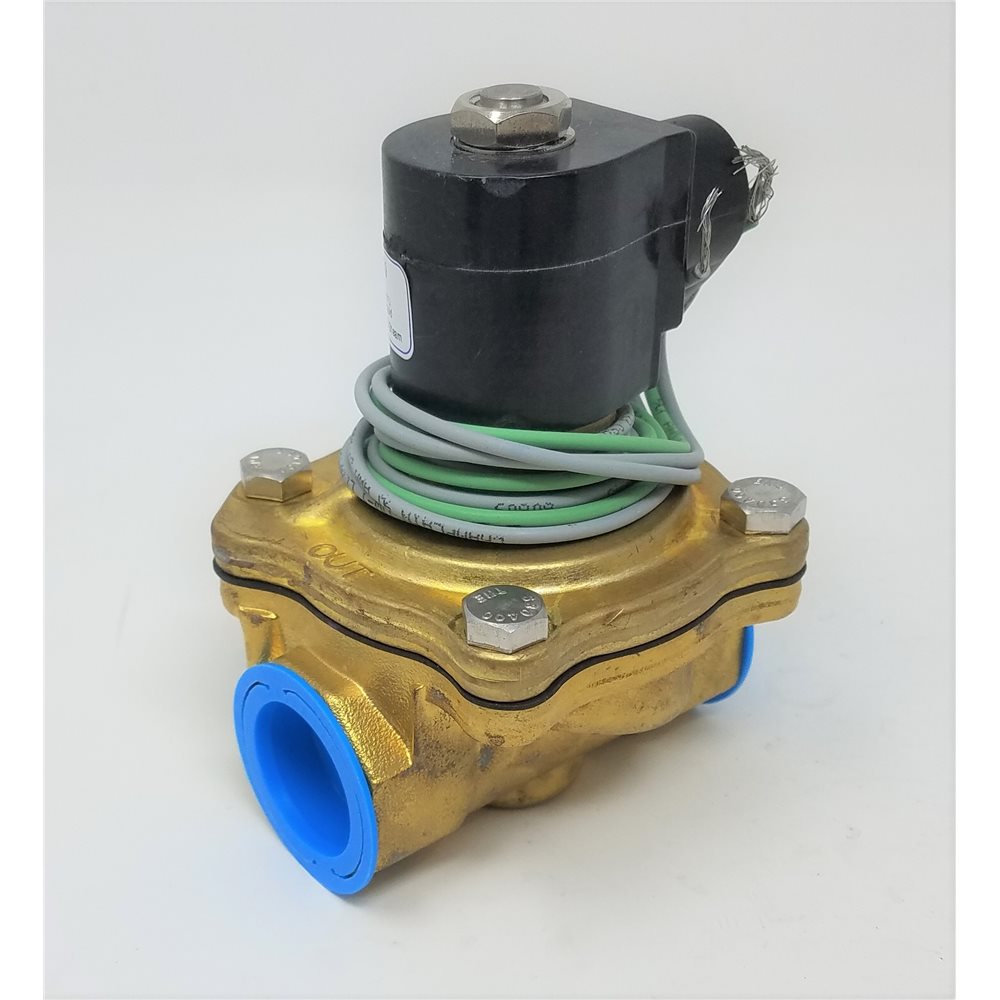

GC Valves S201GH01C5FG9 is a normally closed solenoid valve designed for reliable operation in various fluid control applications. This two-way valve features a brass body and is suitable for steam, making it ideal for HVAC systems and industrial machinery.

• Body Material: Brass
• Coil Voltage: 24/60
• Max Fluid Temperature: 295°F

Product Highlights

This solenoid valve operates efficiently at high temperatures and is built to last.

Product Information

Standard Information

• Mode: Normally Closed
• Type: 2 Way

Technical Specifications

• Series: S20
• Pipe Size: 1 inch
• Item Weight: 4.25 lbs per each
• Watt Rating: 10
• Orifice Size: 1 inch
• Coil Class: Class H
• Inrush Current (VA): 46
• Holding Current (VA): 18
• Max Ambient Temperature: 125°F
• Min Ambient Temperature: 32°F
• Lead Length: 24 inches
• Shading Ring: Copper
• Seat Material: EPR
• Mounting Direction: Any
• Max Steam Pressure: 50 PSIG
