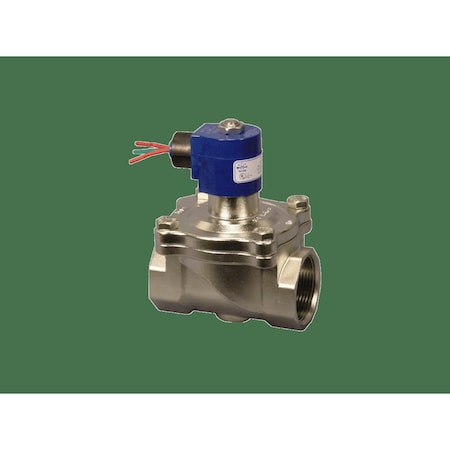

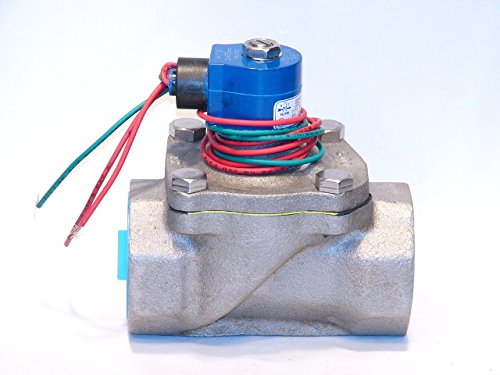

GC Valves S211GF02L7JJ2 Solenoid Valve 120 VAC 2 Inch NPT Stainless Steel

Product Description

The GC Valves model S211GF02L7JJ2 is a stainless steel solenoid valve designed for reliable operation in various industrial applications. With a body constructed from 316 stainless steel, this valve offers exceptional corrosion resistance and durability, ensuring long-term performance under harsh conditions.

• 120 VAC conduit coil for efficient electrical operation
• 2 inch NPT connections for standard pipe fit
• Normally closed (NC) configuration enhances safety and prevents leakage when de-energized

Product Highlights

This valve operates within a pressure range of 5-200 PSI for air and 5-150 PSI for water, making it versatile for different system requirements. It also features a Viton diaphragm which provides excellent chemical resistance and temperature tolerance.

Product Information

Standard Information

• Brand: GC Valves
• MPN: S211GF02L7JJ2

Technical Specifications

• Size: 2 inch NPT
• Material: 316 Stainless Steel
• Power: 120 VAC
• Pressure Range: 5-200 PSI for air, 5-150 PSI for water
• Configuration: Normally Closed
• Diaphragm: Viton for superior performance
