Product Description

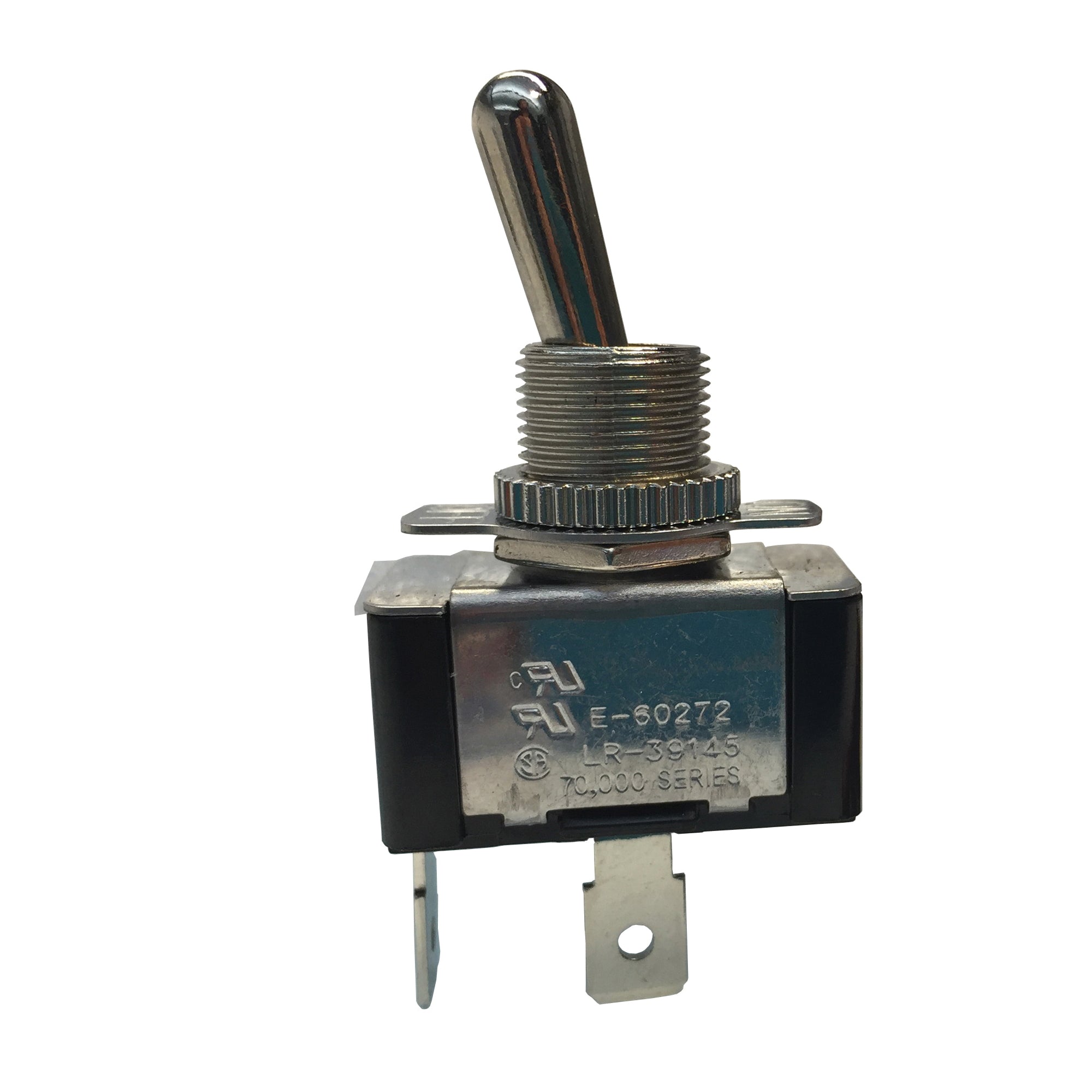

The GB Electrical GSW-121 toggle switch operates at 125/277 VAC and features a current rating of 20/10 A. This SPST switch is designed for use with motor equipment and has a power rating of three-quarter horsepower.
- Requires a half-inch mounting hole
- Maintained ON/OFF position
- Designed with a bat handle for easy operation
Product Highlights
This toggle switch is essential for motor control applications in various electrical setups.
Product Information
Standard Information
-
Brand: GB Electrical
-
Part #: P2455
Technical Specifications
-
Amperage Rating: 20/10 A
-
Application: For motor equipment control
-
Contact Configuration: SPST
-
Contact Rating: 20 A at 125 VAC/10 A at 250 VAC
-
Country of Origin: TW
-
Dimensions: 0.58 in L x 0.52 in W x 0.46 in H
-
Material: Brass/Nickel
-
Mfg Standards/Approvals: CSA Certified|UL Recognized
-
Mounting: Snap-In
-
Number of Poles: 1
-
Package Height: 1.572 in
-
Package Length: 0.522 in
-
Package Weight: 0.06 lb
-
Package Width: 0.522 in
-
Power Rating: 0.75 hp
-
Terminal Type: Quick-Connect
-
Voltage Rating: 125/250 VAC
