Gator 9617 Type 27 Metal Cut-off Wheel 4.5 in 5/8-11

Product Description

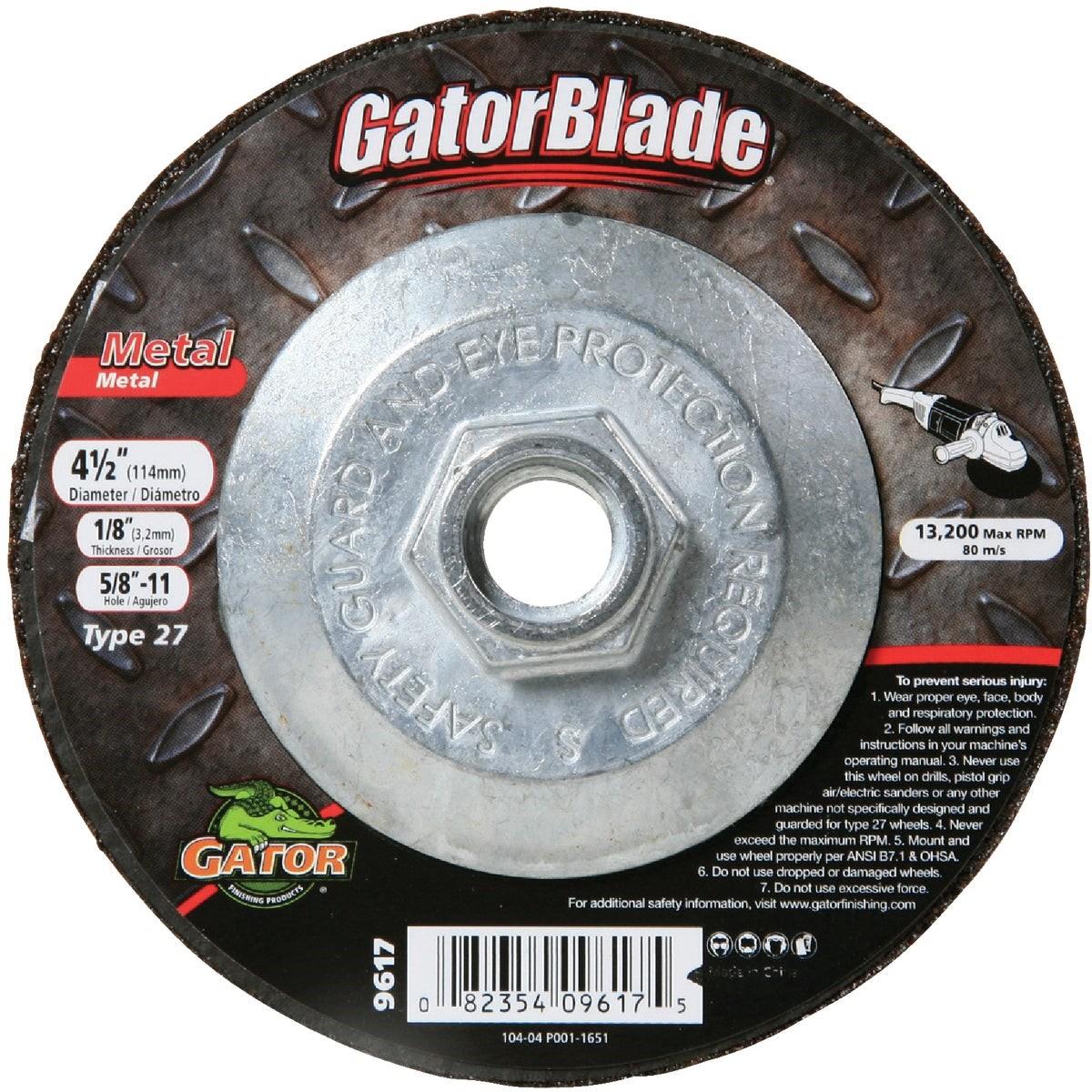

The GATOR 9617 is a Type 27 depressed-center cut-off wheel engineered for heavy-duty metal cutting, grinding, and deburring on angle grinders. Measuring 4.5 inches in diameter by 0.125 inches thick with a 5/8-11 arbor, it is built from industrial-grade silicon carbide and features double reinforcement for extended wheel life and faster material removal. The depressed-center Type 27 profile supports low-angle and vertical grinding positions, making it well-suited for in-place work on structural steel, pipe, and fabricated assemblies. Fabricators, ironworkers, pipefitters, and maintenance technicians are the primary users.

This wheel is designed for use on standard 4.5-inch angle grinders in both shop and field environments. Typical applications include cutting ferrous metal stock, grinding weld seams, and deburring cut edges on structural steel, angle iron, pipe, and sheet metal. The double-reinforced construction holds up under sustained pressure in production or heavy maintenance settings where wheel durability directly affects job pace.

Key Features

• Type 27 depressed-center profile supports low-angle and vertical grinding
• Industrial-grade silicon carbide abrasive for aggressive material removal on metal
• Double-reinforced construction for increased wheel life under heavy loads
• 4.5-inch diameter by 0.125-inch thickness with 5/8-11 threaded arbor fit
• Suitable for cutting, grinding, and deburring in a single wheel

Compatibility

Designed as a replacement-style cut-off wheel for 4.5-inch angle grinders equipped with a 5/8-11 arbor. Confirm maximum RPM rating on the grinder guard matches or falls below the wheel rating before mounting.

Installation Notes

Installation should be performed by a qualified operator following ANSI B7.1 and applicable OSHA abrasive wheel standards. Power down and disconnect the grinder before mounting or changing the wheel. Inspect the wheel for cracks or chips before each use and never operate a damaged wheel. Always ensure the guard is in place and wear appropriate PPE including a face shield.

Technical Specifications

• Type: Type 27 Depressed Center
• Diameter: 4.5 inches
• Thickness: 0.125 inches
• Arbor Size: 5/8-11
• Abrasive Material: Silicon Carbide
• Reinforcement: Double Reinforced
• Weight: 0.364 pounds
• Sold As: Each

Standard Information

• Brand: GATOR
• Manufacturer Part Number: 9617
