Gator 6000 Bench Grinding Wheel 8 Inch Adjustable Bushing

Product Description

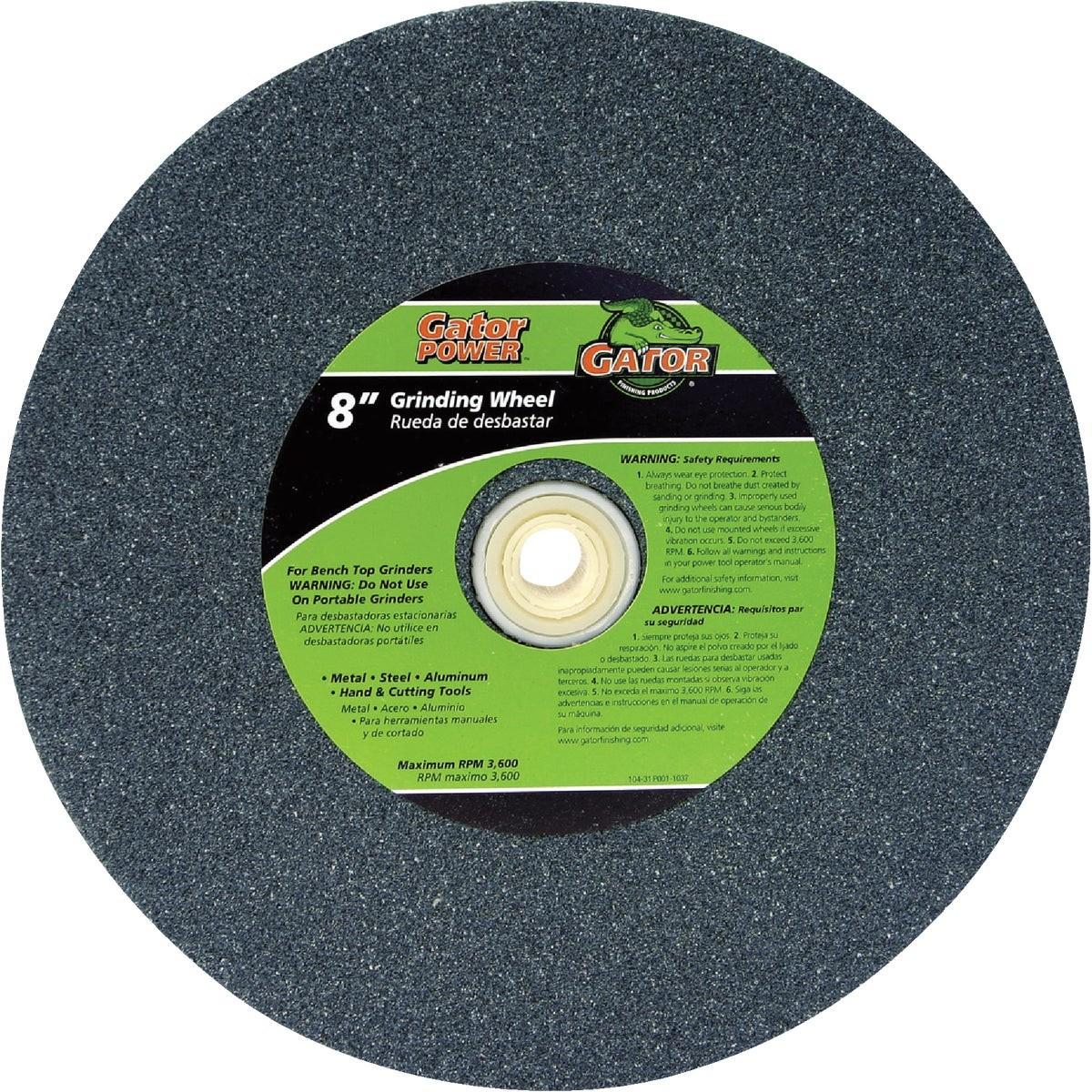

The GATOR 6000 is an 8-inch vitrified aluminum oxide bench grinding wheel designed for use on bench-top and pedestal grinders. The abrasive construction uses fast-cutting aluminum oxide grain, suited for sharpening and grinding high-speed tool steel and other hard metals. The wheel ships with an adjustable telescopic reducer bushing that accepts 1-inch, 3/4-inch, and 5/8-inch arbor sizes, making it compatible with a wide range of grinder spindles without requiring a separate adapter. Tradespeople and shop technicians use this wheel to recondition drill bits, chisels, lathe tools, and other metal cutting implements.

This grinding wheel is intended for bench-top or pedestal grinder applications in tool-and-die, maintenance, and general fabrication settings. The vitrified bond provides consistent cut rate and wheel integrity during sustained grinding sessions. The aluminum oxide abrasive makes it appropriate for carbon steel, tool steel, and similar ferrous and non-ferrous metals. The included adjustable bushing reduces setup time when swapping the wheel between grinders with different arbor diameters.

Key Features

• 8-inch diameter aluminum oxide vitrified grinding wheel
• Adjustable telescopic reducer bushing fits 1-inch, 3/4-inch, and 5/8-inch arbor bores
• Fast-cutting aluminum oxide grain for tool steel and high-speed steel
• Vitrified bond construction for consistent grinding performance
• Compatible with standard bench-top and pedestal grinders

Compatibility

Designed for use on standard bench-top and pedestal grinders accepting 8-inch grinding wheels with 1-inch, 3/4-inch, or 5/8-inch arbor bores via the included adjustable telescopic reducer bushing.

Installation Notes

Grinding wheel installation should be performed by a qualified technician following the grinder manufacturer's instructions and applicable ANSI B11.9 safety standards for bench and pedestal grinders. Always disconnect power to the grinder before removing or mounting a wheel. Inspect the wheel for cracks or chips before installation and perform a ring test; never mount a damaged wheel. Ensure the wheel guard is properly reinstalled and run the grinder at no-load speed for at least one minute before applying workpiece contact.

Technical Specifications

• Wheel Diameter: 8 inches
• Arbor Bore (with bushing): 1 inch, 3/4 inch, 5/8 inch adjustable
• Abrasive Material: Aluminum oxide
• Bond Type: Vitrified
• Weight: 4.048 pounds
• Sold As: Each

Standard Information

• Brand: GATOR
• Manufacturer Part Number: 6000
