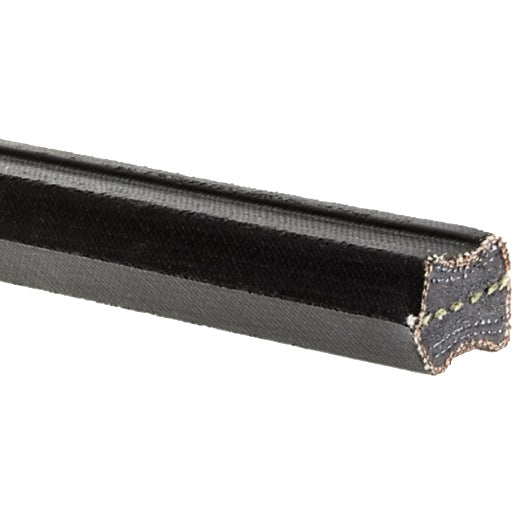

Gates CC195 V-Belt - CC Section, 1 Band, 199.00 in Outside Length, Smooth, Hi-Power II, Double-V Construction

Product Description

The Gates CC195 V-Belt features a CC section design ideal for various power transmission applications. With an outside length of one hundred ninety-nine inches, its double-V construction enhances performance and durability.

• Designed for serpentine drives with counter-rotating shafts
• Made with oil and heat resistant materials
• Proven to outlast competing belts in field tests

Product Highlights

The Gates CC195 V-Belt provides optimal cord support and full contact with the sheave-groove, which ensures uniform loading and wear. It features a fully wrapped construction that prevents debris accumulation, enhancing belt life.

Product Information

Standard Information

• Brand: Gates
• Country Of Origin: Mexico

Technical Specifications

• Section: CC
• Thickness: 18 mm
• Top Width: 7/8 in
• Effective Length: 199.16 in / 5059 mm
• Outside Circumference: 201.47 in / 5117 mm
• Maximum Temperature: +140°F / +60 °C
• Minimum Temperature: -22°F / -30 °C
• Cord Material: Polyester
• Construction: Banded
