Product Description

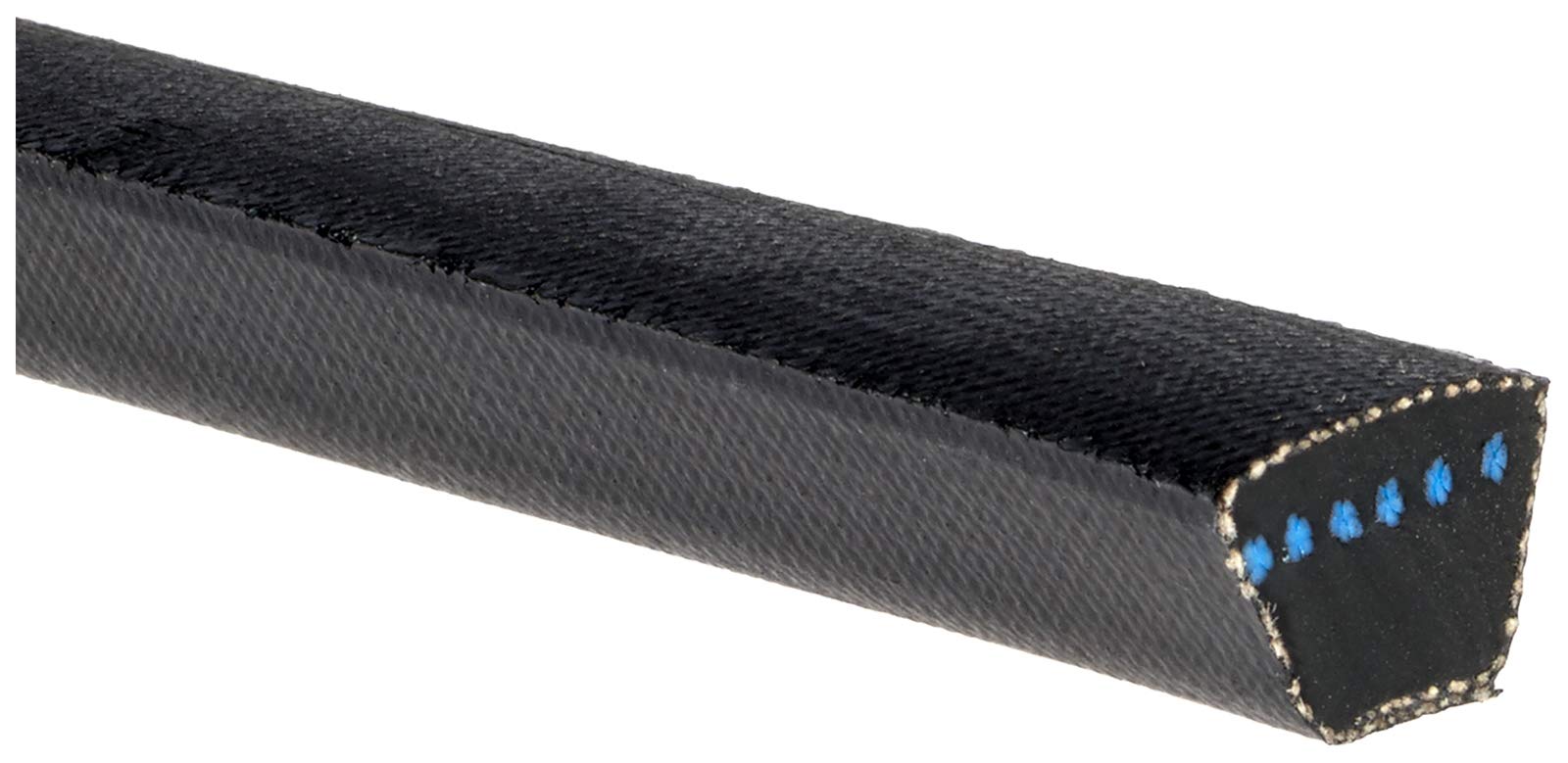

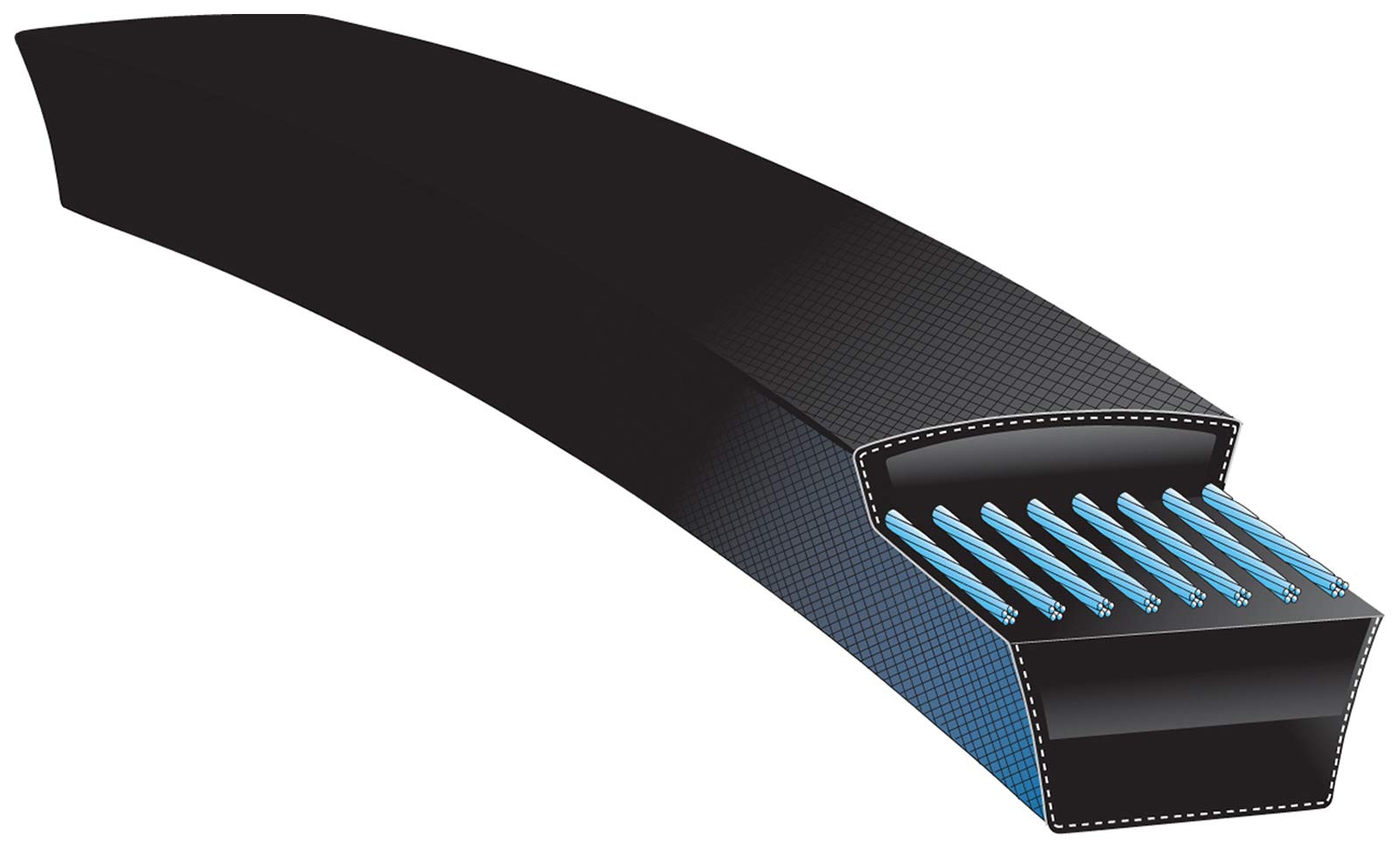

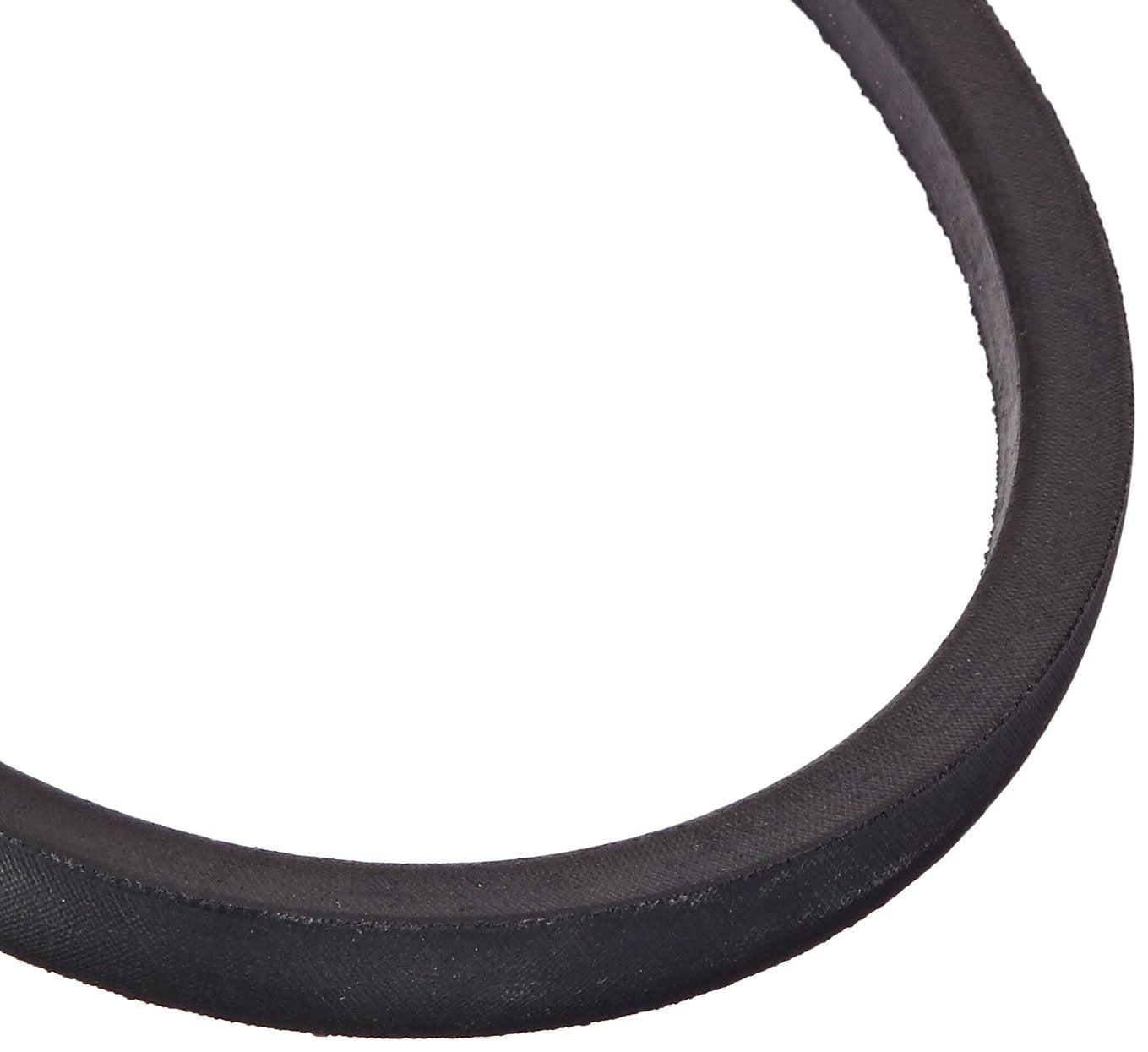

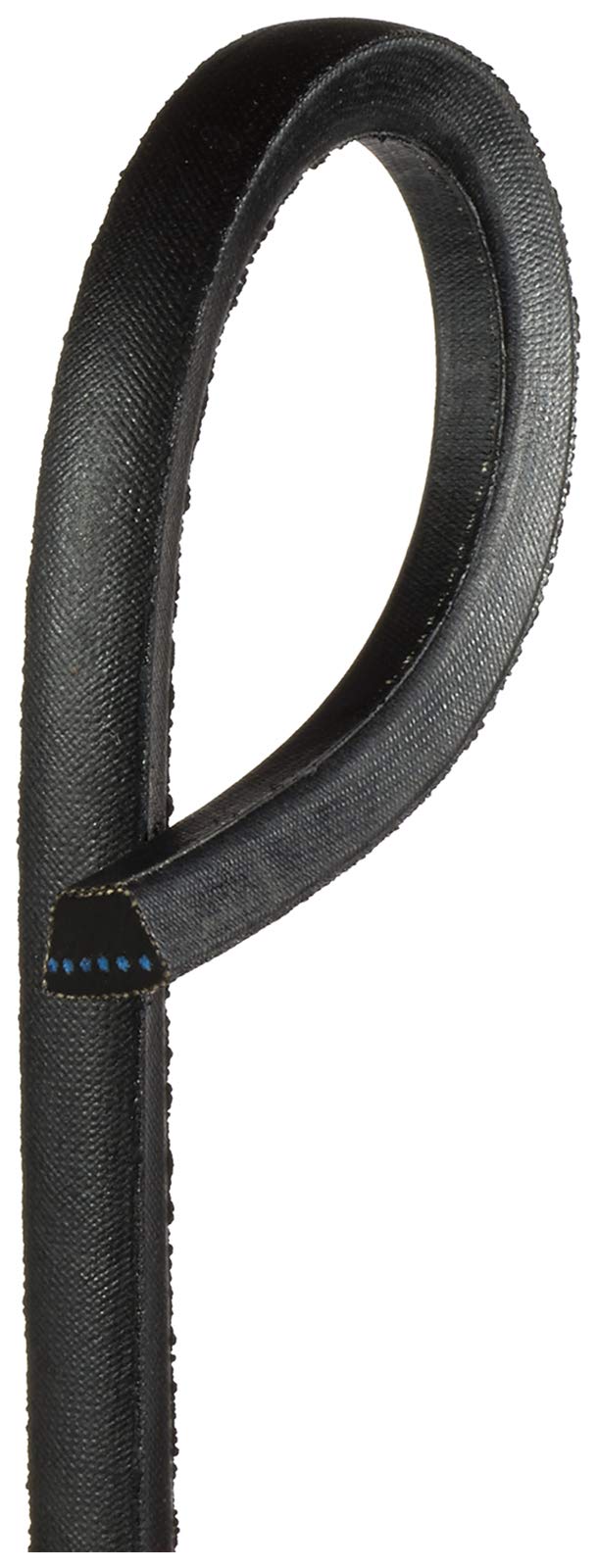

The Gates B73 V Belt, also known as 5L760, is a multipurpose power transmission V-belt suitable for all industrial applications, including v-flat drives. It is made of EPDM rubber for resistance to weathering, oils, water, and some solvents. The belt meets RMA oil and heat resistance standards and static conductivity requirements.
- Suitable for all industrial applications, including v-flat drives
- Cords bonded to the body for equal load distribution and reduced bending stress
- Concave sidewalls for even distribution of wear
Product Highlights
The Gates B73 V Belt is ideal for power transmission in automotive, agricultural, textile, printing, mining, and office equipment industries.
Product Information
Standard Information
-
Brand: GATES
-
Manufacturer Part Number: B73
-
Country of Origin: Mexico
Technical Specifications
-
MPN: B73
-
Brand: Gates
-
Product Type: MECHANICAL_BELT
-
Manufacturer: Gates
-
Size: B73
-
Number of Items: 1.0
-
Length (inch): 76
-
Length (mm): 1930
-
Length Type: Outside Circumference
-
Top Belt Width per strand (inch): 0.66
-
Top Belt Width per strand (mm): 17
-
Nominal Thickness (inch): 0.41
-
Nominal Thickness (mm): 10
-
Belt Category: Classical Series - Inch
-
Section: B
-
Number Of Strands: 1
-
Nominal Outside Length: 76 in
-
Cogged/Smooth: Smooth
-
Top Width Per Strand: 21/32 in
-
Belt Style: Hi-Power® II
-
Reinforcing Cord Material: Polyester
-
Resistance Features: Oil Resistant
-
Overall Height: 0.4063 in
-
Top Width: 21/32 in
-
Effective Length: 75.69 in / 1923 mm
-
Material: SBR
-
Country of Origin: MX
-
Standards Met: ISO 1813, RMA
-
Outside Circumference: 76.1 in / 1933 mm
-
Belt Height: 13/32 in
-
Belt/Slab: Belt
-
Belt Back Side: Smooth
-
Belt Inside: Smooth
-
Cord Material: Polyester
-
Maximum Temperature: +140°F / +60 °C
-
Minimum Temperature: -22°F / -30 °C
-
Number of Sides: Single Sided
-
Static Conductive: Yes
-
Thickness: 11 mm
-
Trademark: Hi-Power™ II
