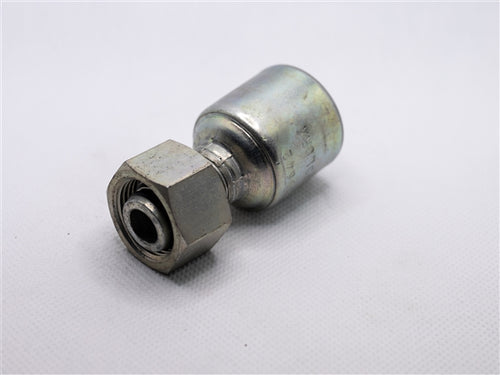

Gates 6G-10FDLORX MegaCrimp - 0.375 in ID, 2.25 in Overall Length

Product Description

The Gates 6G-10FDLORX is a MegaCrimp fitting designed for various hose applications. This product has a one-quarter inch inside diameter and an overall length of two and a quarter inches. It is compatible with numerous outside diameters on both one-wire and two-wire braid hydraulic hoses.

• Robust crimp with a patented design for leak-proof performance.
• Environmentally friendly TuffCoat plating for corrosion resistance.
• Compatible with various hose constructions and wall thicknesses.

Product Highlights

This fitting simplifies inventory management while providing reliable performance. The crimp design accommodates different hoses effectively.

Product Information

Standard Information

• Brand: Gates
• Part Number: 08504908

Technical Specifications

• Hose Inside Diameter: 0.3740 in
• Overall Length: 2.25 in
• Swivel: Yes
• End Type 1: FDLORX
• Thread Size 1: M16X1.5
• O-Ring Location: On Female w/Inverted Nose Seat
• Seated Angle: 24 °
• For Use With: Various ODs on Both 1-Wire & 2-Wire Braid Hyd Hose
