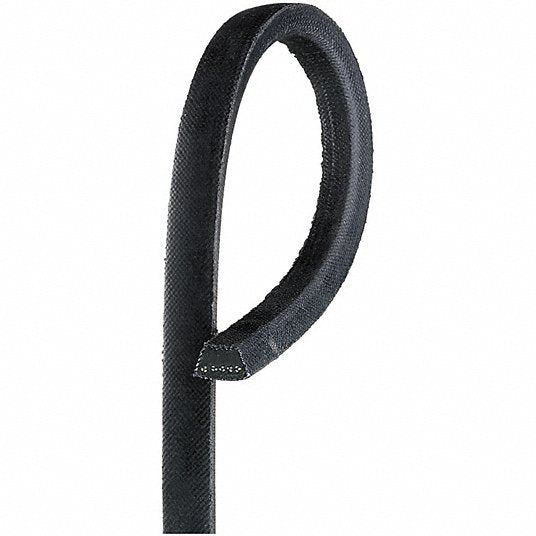

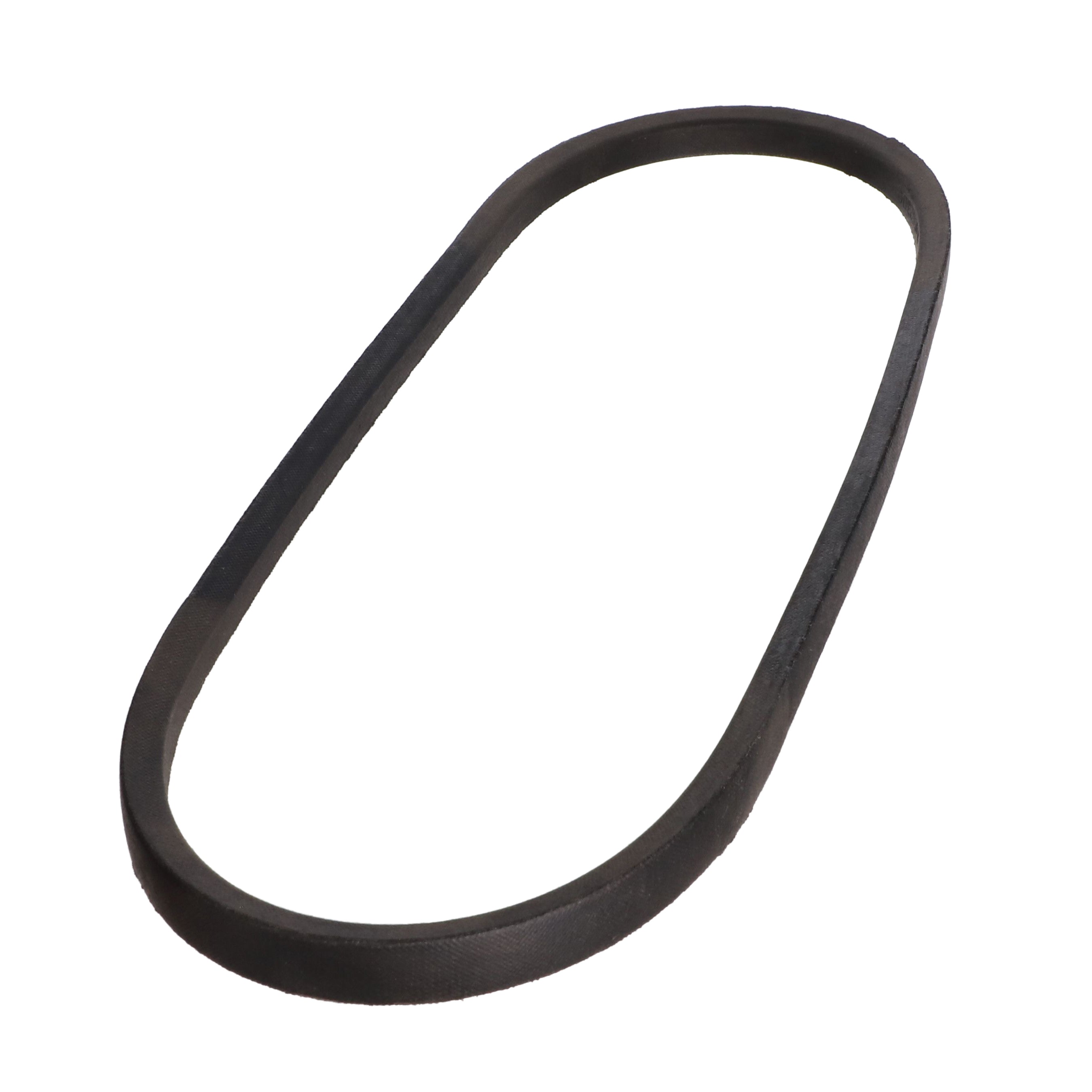

Gates 4L300 new classical style v belt 1/2 inches x 30

Product Description

The GATES 4L300 New Classical Style V Belt is a frictional forced power transmission belt designed for light duty, fractional horsepower drives. The compact belt design is ideal for use with FHP motors and home appliances. Engineered for flexibility, durability and resistance to contaminants.

• Thin profile designed for small-diameter sheaves.
• Lower cord positioning improves belt performance.
• Flex-bonded cords ensure equal load distribution.

Product Highlights

This V-belt is perfect for auxiliary automotive applications, drive pumps, power tools, and domestic appliance applications. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements.

Product Information

Standard Information

• Brand: GATES
• Manufacturer Part Number: 4L300
• Country of Origin: Indonesia

Technical Specifications

• Manufacturer: Gates Rubber Pvt Lbl.
• Part Number: 4L300
• Product Type: MECHANICAL_BELT
• Brand: Gates
• Product Group: Automotive Parts and Accessories
• Number of Items: 1.0
• Manufacturer #: 4L300
• Parts Town #: GTS4L300
• Replaced by PT #: GTS84002300
• Units: Each
• Belt Category: Fractional HP
• Section: 4L
• Number Of Strands: 1
• Nominal Outside Length: 30.0000 in
• Cogged/Smooth: Smooth
• Top Width Per Strand: 1/2 in
• Belt Style: TRUFLEX®
• Reinforcing Cord Material: Polyester
• Resistance Features: Oil Resistant
• Overall Height: 0.3125 in
• Top Width: 1/2 in
• Material: SBR
• Standards Met: RMA
• Outside Circumference: 30.05 in / 763 mm
• Angle: 36
• Belt Height: 5/16 in
• Belt/Slab: Belt
• Belt Back Side: Smooth
• Belt Inside: Smooth
• Construction: Banded
• Cord Material: Polyester
• Maximum Temperature: +140°F / +60 °C
• Minimum Temperature: -22°F / -30 °C
• Number of Sides: Single Sided
• Static Conductive: Yes
• Thickness: 5/16 in
• Trademark: Truflex™
• Unitset: No
• MPN: 0366B
• UPC: Does not apply
• Country of Origin: United States
• V-Belt Section: 4L
• Industry Number: 4L300
• Outside Length: 30 in
• Belt Material: SBR
• Edge Construction: Wrapped
• V-Belt Type: Wedge
• Belt Series: Truflex®
• Application: Fractional Horsepower; Light Industry
• Belt Coating: Flex-Weave™
• Length Type: Closed Loop
• Maximum Operating Temperature: 140 °F
• Minimum Operating Temperature: -22 °F
• Resistance Properties: Heat-Resistant; Oil-Resistant
• Rib Width: 0.5 in
• Standards: ARPM; REACH; RoHS2
• Nominal Length: 30 in
• Profile Type: Single-Sided
• System of Measurement: Inch
• Ducted or Ductless: Ducted
• UOM: EA
• Order Multiple: 1
• Item: EA
• UPC/SCC: -
• Width (In): 0.5
• Height (In): 15
• Depth (In): 0.16
• Sell Units Per: EA
