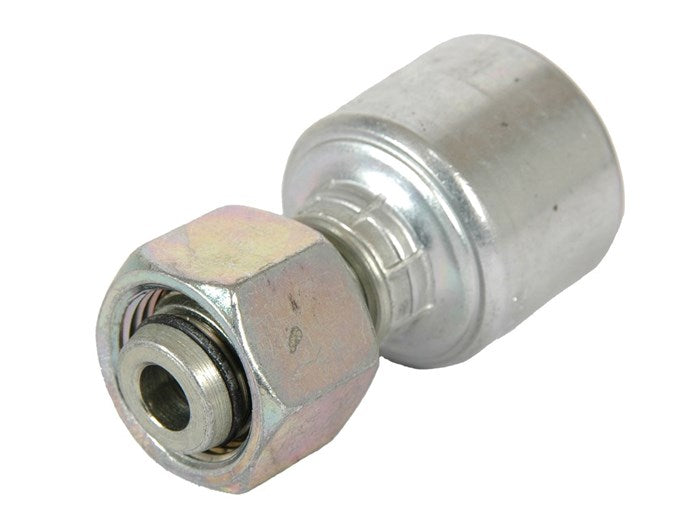

Gates 4G-6FDLORX 710095665 Crimp-On Fitting - 1/4 in Hose ID, 12 mm ISO

Product Description

The Gates 4G-6FDLORX is a crimp-on fitting designed for hydraulic hoses with a hose inside diameter of one quarter inch and a twelve millimeter ISO end size. This fitting features a robust ‘bite-the-wire’ crimp design and is tested to withstand up to one million impulse cycles, ensuring reliability in various applications.

• Compatible with multiple hose series including CM2T and G4H
• Female end connections designed for various ODs on both one-wire and two-wire braid hydraulic hoses
• Environmentally friendly TuffCoat plating for enhanced corrosion resistance

Product Highlights

This crimp-on fitting is crafted for superior leak-proof performance. With easy compatibility across hoses of different constructions, it supports efficient inventory management.

Product Information

Standard Information

• Brand: Gates
• Country of Origin: United States

Technical Specifications

• MPN: 4G-6FDLORX
• Length: 0.787 inches
• Overall Length: 48.7 mm
• End Type: FDLORX
• Port Gender: Female (Port 1), Female (Port 2)
• Thread Size: M12x1.5
• Hose Inside Diameter: 0.2520 inches
• Compatible Hose Series: CM2T, G1, G2, G3H, G4H
