Gates 4/B128 Power Transmission V-Belt B Section 131 Inches OD 4-Strand

Product Description

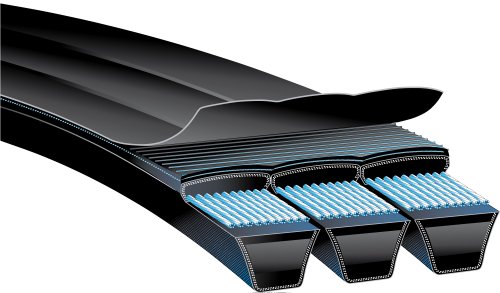

The Gates 4/B128 Hi-Power II PowerBand V-belt is engineered for robust power transmission capabilities. This belt features a multi-V construction designed to handle high-load operations in industrial settings. Constructed from EPDM rubber, it boasts excellent resistance to wear from weather, oils, and solvents, ensuring durability and reliable performance.

• Uniform load distribution across the belt's width, reducing stress and extending service life.
• Enhanced flexibility due to its concave sidewalls, promoting full sheave groove contact.
• High-strength tie band that keeps multiple belts aligned, minimizing the risk of misalignment or slipping.

Product Highlights

Incorporating a V80 matching system, the Gates 4/B128 V-belt is precisely matched beyond RMA and ISO standards, which aids in even load distribution and efficient power transmission. Suitable for challenging drives where vibration, turning, or jumping might occur.

Product Information

Standard Information

• Brand: Gates
• Part Number: 4/B128
• Type: Power transmission V-belt

Technical Specifications

• Material: EPDM rubber
• Product Group: Automotive Parts and Accessories
• Size: 131 inches belt outside circumference
• Number of Strands: Four
• Weight: 7.6 pounds
• Product Dimension Unit: Inches
