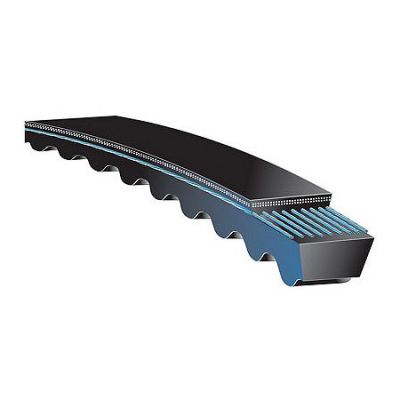

GATES 3VX560 Gates Super HC 3VX560 V-Belt

Product Description

The Gates Super HC 3VX560 V-Belt is designed for high horsepower applications in tight spaces. This narrow section V-belt uses molded notches to enhance performance and durability. It features flex-bonded cords to ensure equal load distribution and improve fatigue resistance. The construction incorporates precision-ground sidewalls for a proper fit within pulley grooves. The ethylene elastomeric compound provides protection against heat, ozone, and sunlight, extending the belt's lifespan.

• Flex-Weave cover protects against oil and contaminants.
• Molded notches reduce bending stresses.
• Meets ARPM/RMA standards for oil and heat resistance.

Product Highlights

This V-belt is ideal for demanding environments, ensuring reliable performance in various machinery.

Product Information

Standard Information

• Manufacturer Part Number: 3VX560
• Belt Type: Narrow Section Molded Notch V-Belt

Technical Specifications

• V-belt Cross Section: 3VX
• Outside Length: 56 inches
• Top Width: 3/8 inch
• Nominal Thickness: 0.33 inches
• Angle: 44 degrees
• Material: EPDM Rubber
• Core Material: Oil & Heat Resistant (ethylene)
• Tensile Cord: Polyester
