Gates 3/BX136 Tri-Power PowerBand V-Belt BX Section 3 Band 139.60 in Cogged 38 Angle

Product Description

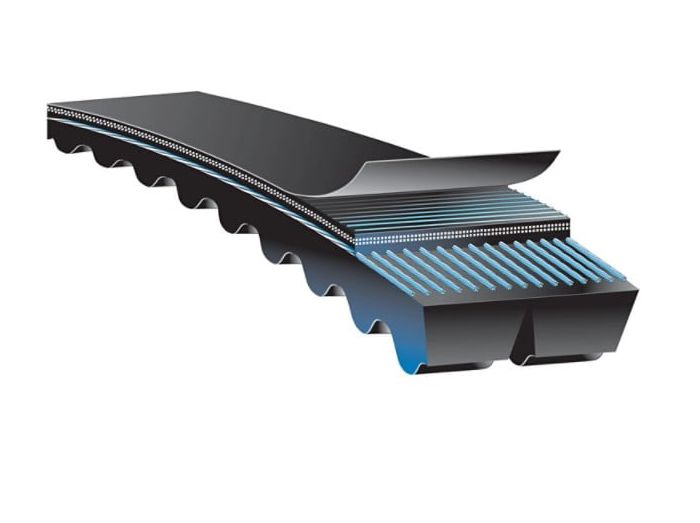

The Gates 3/BX136 Tri-Power PowerBand V-Belt is engineered for heavy-duty classical cross-section drives. Featuring raw edge Ethylene Elastomeric construction and a special notch design, this cogged BX section belt is suitable for small diameter pulleys and back side idler drives. It offers superior performance and is designed for industrial applications, including those requiring a 3-band, 139.60-inch outside length belt.

• Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip and wear.
• Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution and absorption of bending stress without cord deterioration.
• Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves.

Product Highlights

Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required.

Product Information

Standard Information

• Brand: GATES
• Manufacturer Part Number: 3/BX136
• Country of Origin: UNITED STATES

Technical Specifications

• Angle: 38 degrees
• Section Type: BX
• Material: Ethylene Elastomeric
• Thickness: 0.47 inches
• Top Width: 1.97 inches
• Belt Inside: Notched
• Belt Category: Classical Series - Inch
• Cogged/Smooth: Cogged
• Cord Material: Polyester
• Belt Back Side: Smooth
• Outside Length: 139.6 inches
• Number of Sides: Single Sided
• Effective Length: 138.873 inches
• Static Conductive: Yes
• Maximum Operating Temperature: 250°F (121°C)
• Minimum Operating Temperature: -70°F (-51°C)
• Outside Circumference: 139.89 inches
• Nominal Outside Length: 140.0000 inches
• Product Series: 9098
• Number of Bands: 3
