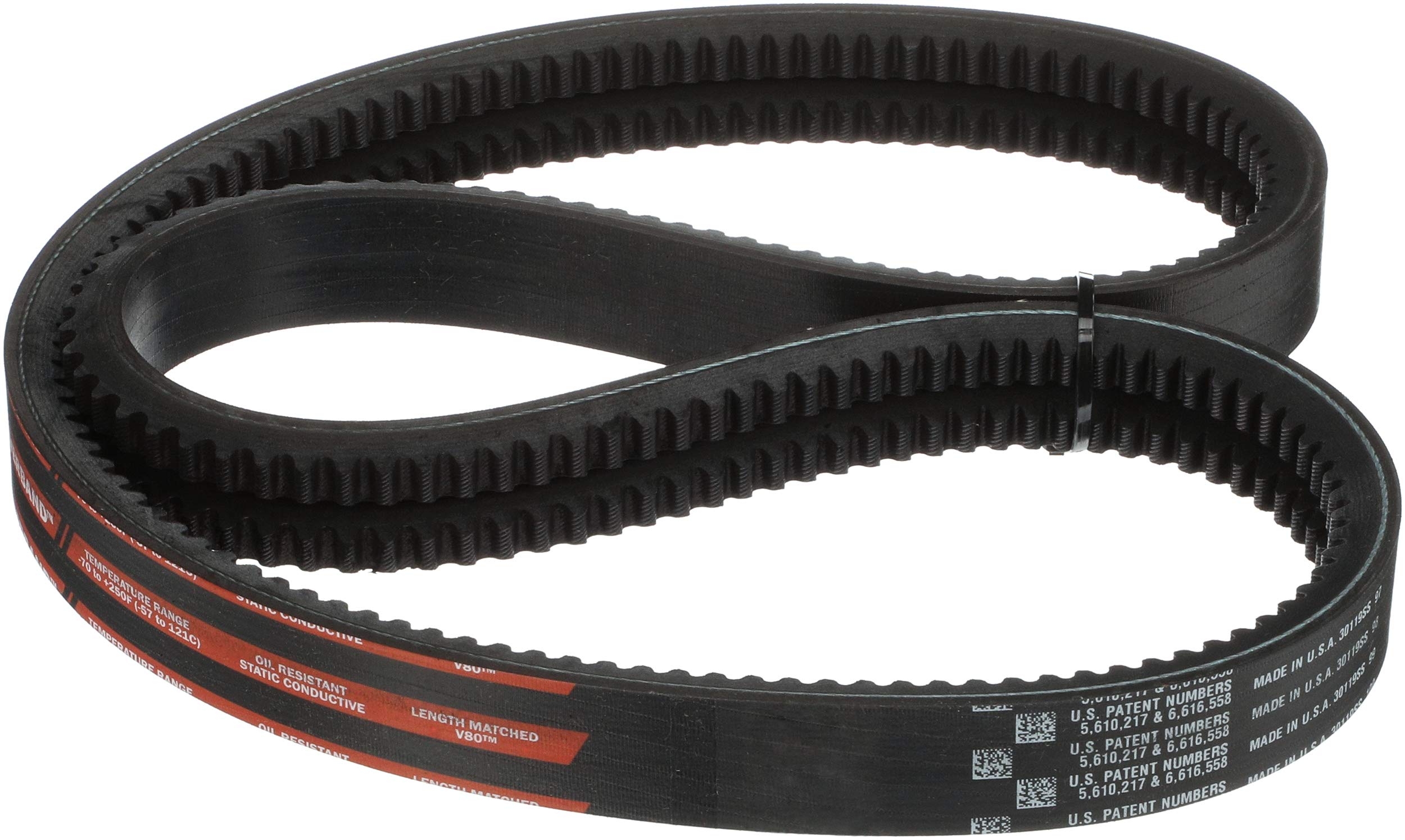

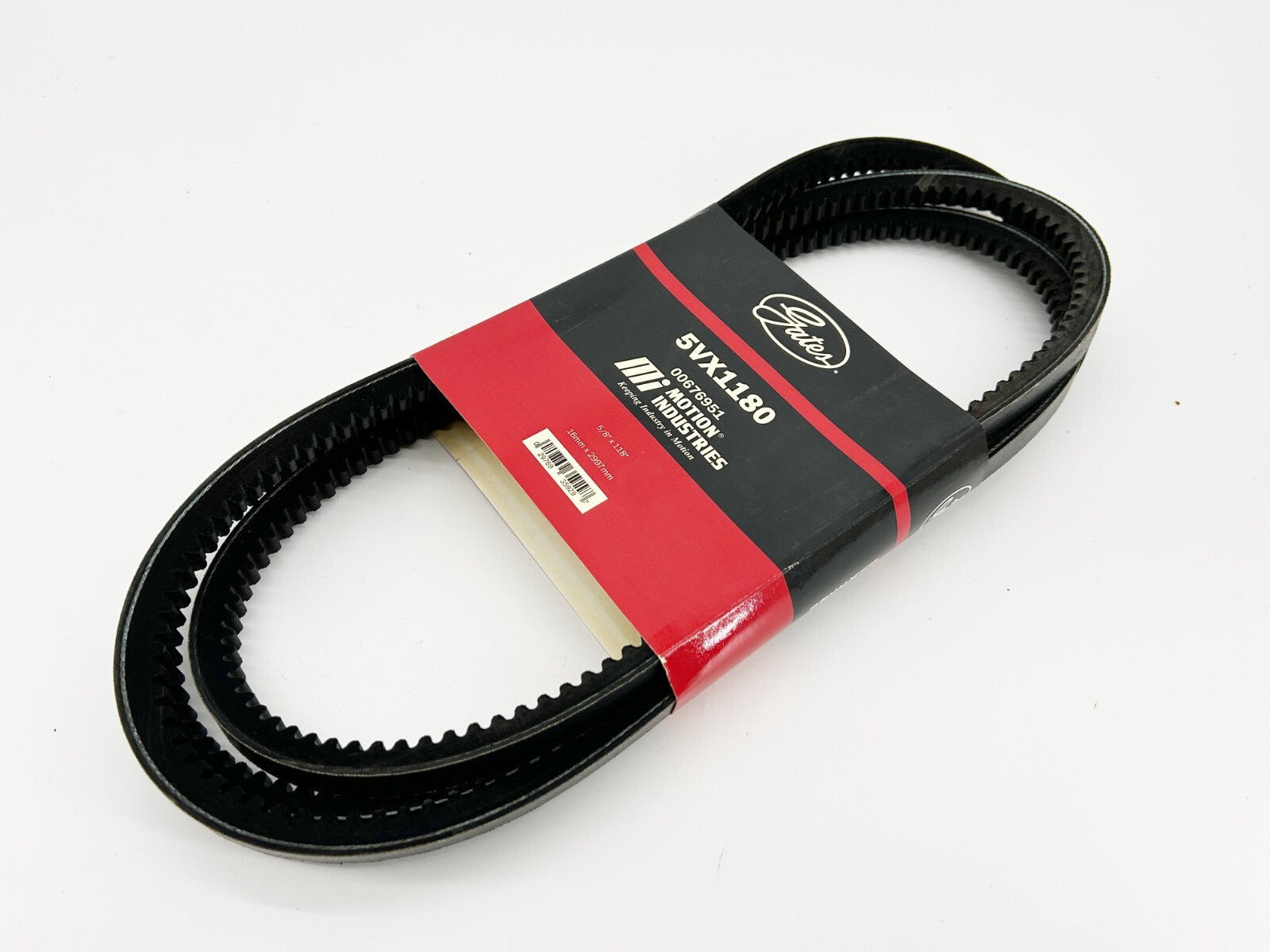

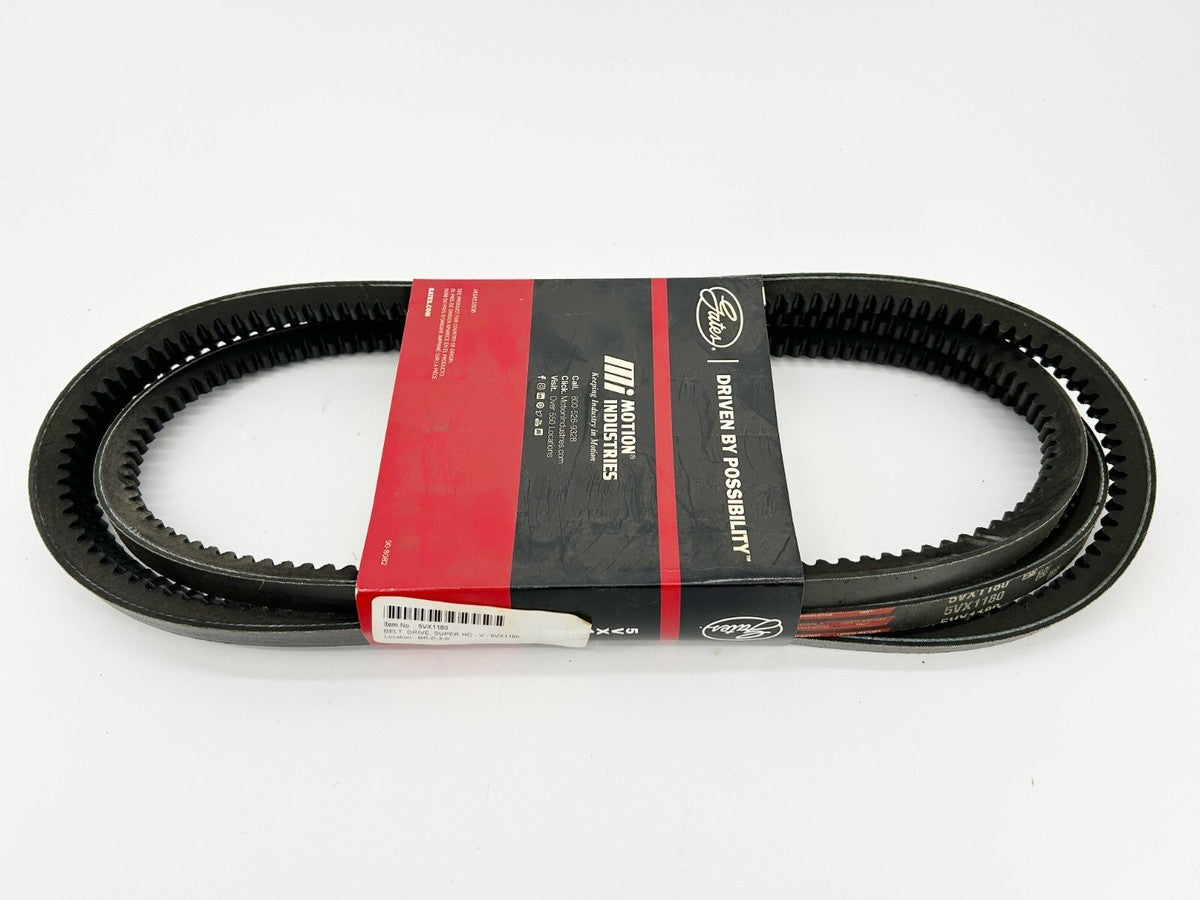

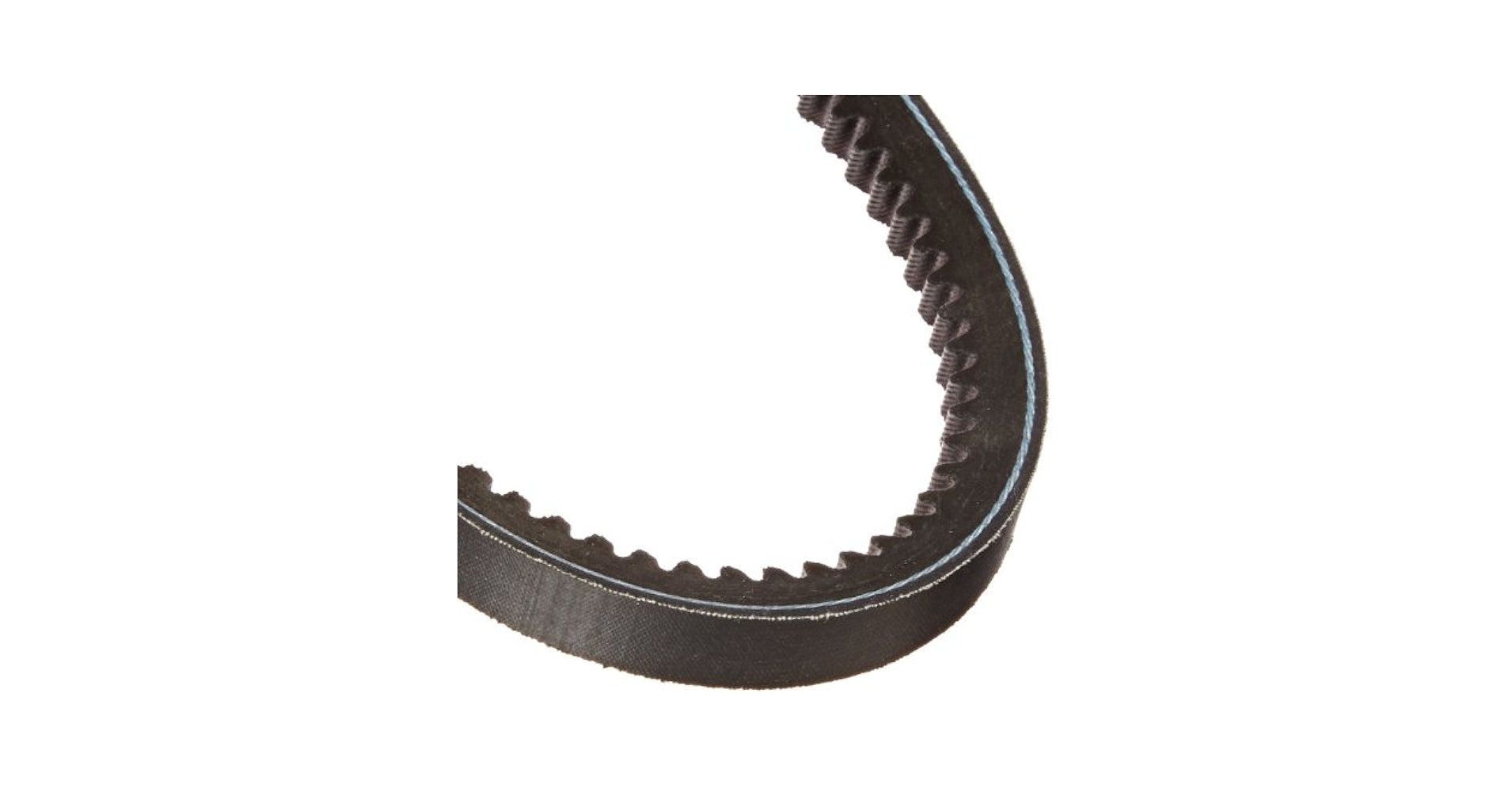

GATES 2/5VX1180 2 Banded 118OD Belt

Product Description

The GATES 2/5VX1180-CL is a power transmission belt designed for heavy industrial use. This belt has two bands for increased load capacity and offers strong durability for extensive applications. With an outside diameter of one hundred eighteen inches, it suits larger drive systems that require consistent power flow.

• Reliable performance across various industrial settings.
• Durable design for an extended lifespan.
• Optimized for large drive systems with an outside diameter of one hundred eighteen inches.

Product Highlights

This belt provides effective power transmission while reducing the need for larger pulleys and components.

Product Information

Standard Information

• Item Number: 2/5VX1180
• Brand: Gates

Technical Specifications

• Belt Category: Narrow Series - Inch
• Section: 5VX
• Number Of Strands: 2
• Nominal Outside Length: 118.0000 inches
• Cogged/Smooth: Cogged
• Belt Style: SUPER HC® MOLDED NOTCH POWERBAND®
• Rib Width: 0.6250 inches
• Reinforcing Cord Material: Polyester
• Resistance Features: Oil Resistant
• Overall Height: 0.5469 inches
• Top Width: 1-1/4 inches
• Effective Length: 117.779 inches / 2992 mm
• Color: Black
• Material: Ethylene Elastomeric
• Operating Temperature Range: -60 to 250 °F
• Standards Met: RMA
