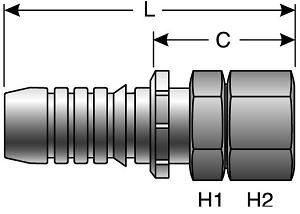

Gates 10GS-10FJXMM 7347-82175 Hose End 37 Degrees Replacement MPN

Product Description

The Gates 10GS-10FJXMM is a hose end designed for high-performance applications. It is compatible with MegaSys 4 and 6-Spiral Wire Hydraulic Hoses up to eight thousand psi. The innovative design of this hose end ensures effective coupling retention and reliability through multiple use cases.

• Bite-the-wire crimp for superior coupling retention.
• Tested to withstand one million impulse cycles.
• Environmentally-friendly coating for improved corrosion resistance.

Product Highlights

This hose end offers a temperature capability of two hundred fifty degrees Fahrenheit, ensuring a long assembly life under various conditions.

Product Information

Standard Information

• Brand: Gates
• MPN: 10GS-10FJXMM

Technical Specifications

• Swivel: Yes
• Hose Inside Diameter: 0.6260 inches
• Thread Size 1: 7/8-14
• Mating Angle: 37 degrees
• For Use With: MegaSys 4 and 6-Spiral Wire Hyd Hose up to 8000 psi
• Additional Details: Designed for extreme high-pressure applications.
