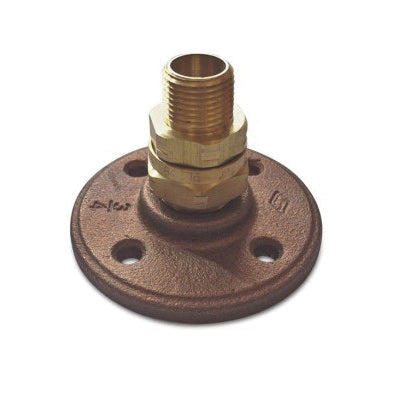

Gastite XR3TRM-8-CB-12 XR3 Series Termination Fitting

Product Description

The Gastite XR3TRM-8-CB-12 is a termination fitting specifically made for FlashShield CSST flexible gas piping systems. This fitting is a part of the XR3 series and has a patented design that ensures electrical continuity by contouring the metal shield. It features reusable brass components and a metal-to-metal seat that does not require O-rings or gaskets. The design creates a fixed point stub-out on wall or floor surfaces.

• Designed for use with FlashShield CSST.
• Features a metal-to-metal seal for reliable performance.
• All components are reusable for convenience.

Product Highlights

This fitting simplifies installation and enhances system integrity in gas piping applications.

Product Information

Standard Information

• Brand: Gastite
• MPN: XR3TRM-8-CB-12

Technical Specifications

• Series: XR3 Series
• Connection Type: MNPT
• Connection Size: 1/2 inches
• Material: Brass
• Pressure Rating: 25 psi
• Temperature Rating: -40 to 160 degrees F
• Dimensions: 2-1/2 inches long
• Suitable For Use With: Gastite FlashShield Flexible Gas Piping System
• Fitting Material: Brass
• Flange Material: Steel with zinc coating or cast bronze
• Code/Specifications: CSA: ANSI LC 1, IAPMO: File No. C-3250, ICC: Evaluation Report No. PMG 1019
