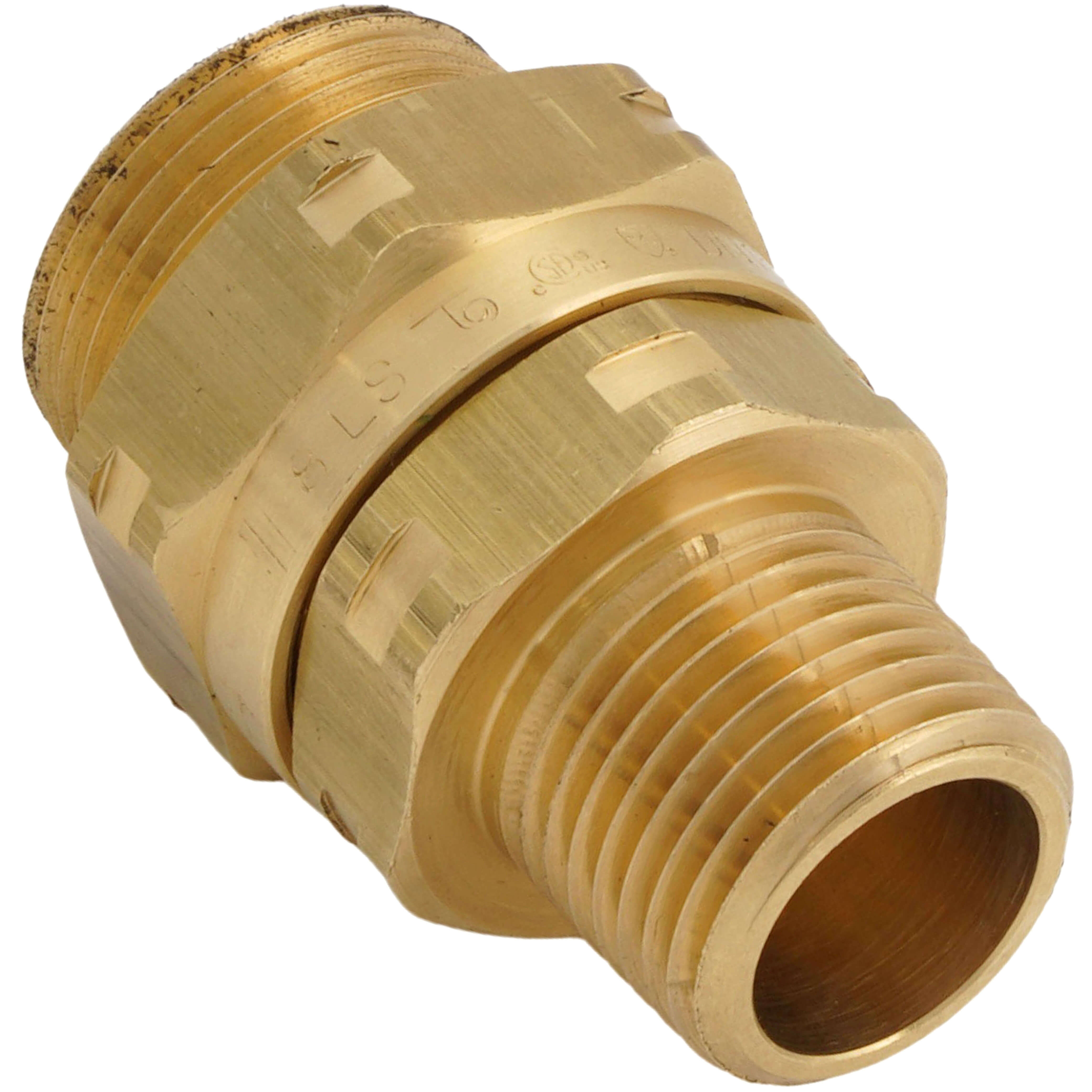

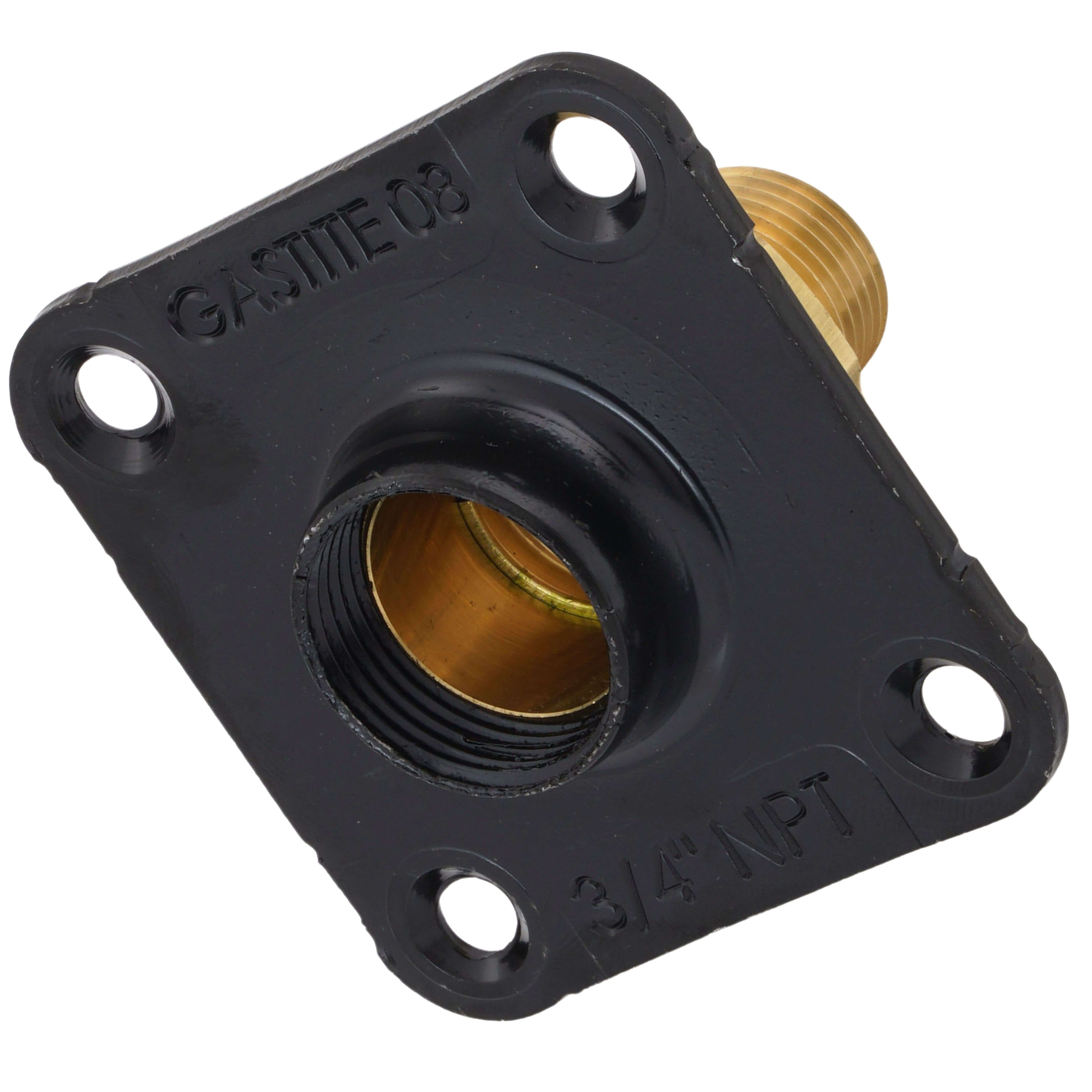

Gastite XR3TRM-8 1/2 Termination Fitting x 1/2 Male NPT w/ Square Flange

Product Description

Gastite XR3TRM-8 is a 1/2 inch termination fitting with a male NPT connection and square flange. This fitting is designed for fixed-point installations on walls or floors, ensuring a reliable and durable connection. The FlashShield system meets ANSI LC 1 standards and is listed with CSA, ICC, and IAPMO.

• Minimal torque required for installation

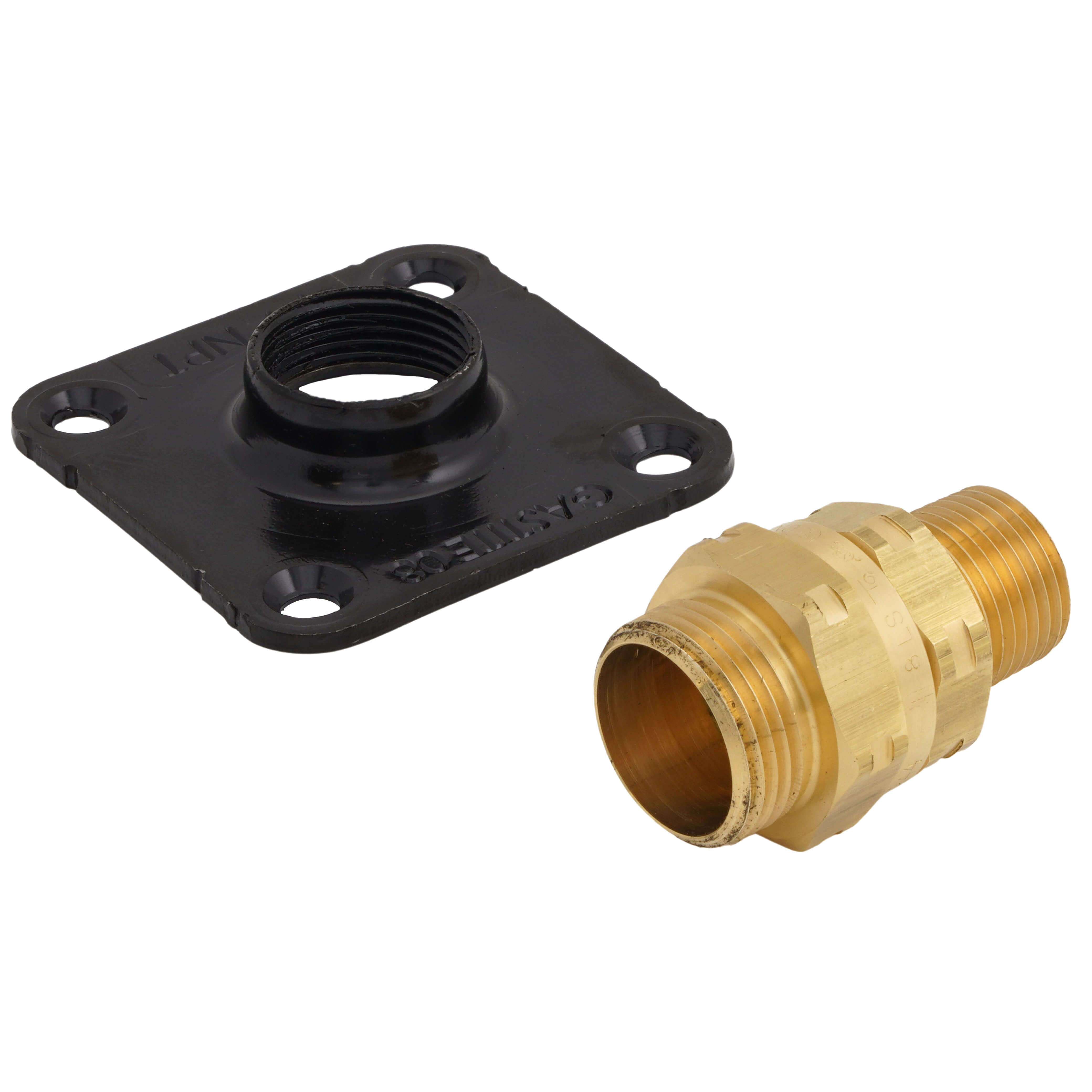

• Includes termination nut, flange, and male NPT adapter
• Reusable brass components with a metal-to-metal seal

Product Highlights

This termination fitting offers a self-guiding assembly, ensuring a secure fitting every time. The metal-lock feature enhances electrical connectivity throughout your system.

Product Information

Standard Information

• Brand: Gastite
• MPN: XR3TRM-8

Technical Specifications

• Max Approved Operating Pressure: 25 psi
• Operating Temperature Range: -40 degrees Fahrenheit to 160 degrees Fahrenheit
• Connection Type: Male NPT
• Material: CA360 brass
• Listings: CSA Certificate 2728525, IAPMO C-3250
