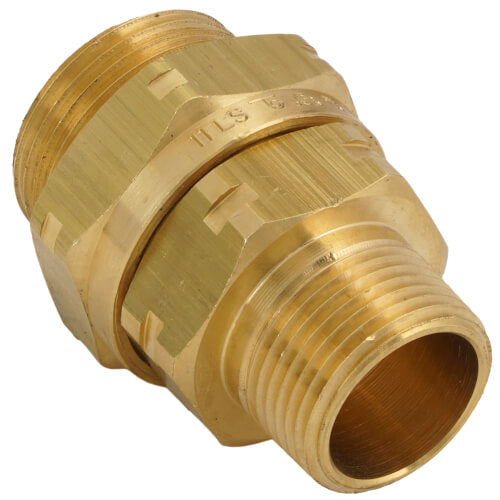

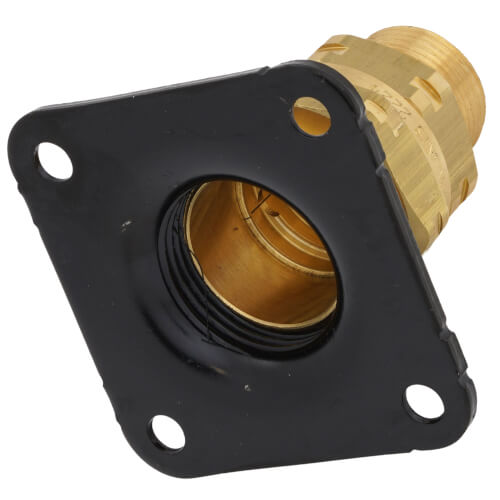

Gastite XR3TRM-11 3/4 Termination Fitting x 3/4 Male NPT with Square Flange

Product Description

The Gastite XR3TRM-11 3/4 Termination Fitting x 3/4 Male NPT with Square Flange provides electrical continuity in gas line systems. It requires minimal torque for installation and uses reusable brass components for a reliable metal-to-metal seal.

• Fixed-point termination on floor or wall
• Corrosion-resistant steel flange
• Tool-less flare fitting design

Product Highlights

The Gastite XR3TRM-11 fitting boasts a metal-to-metal seal and self-guiding fitting assembly, ensuring a perfect flare. With its Jacket-Lock and Metal locking features, this fitting maintains continuous conductivity and provides steel tubing protection.

Product Information

Standard Information

• Product Name: 3/4 Termination Fitting x 3/4 Male NPT with Square Flange
• Brand: Gastite
• Model Number: XR3TRM-11
• MPN: XR3TRM-11

Technical Specifications

• Max Approved Operating Pressure: 25 psi
• Operating Temperature Range: -40°F to 160°F
• Fitting Material: CA360 Brass
• Connection Type: FNPT
• Weight: 0.725 lb
• Size: 3/4 inch
• Application: Outdoor
• Pressure Rating: 25 PSI
